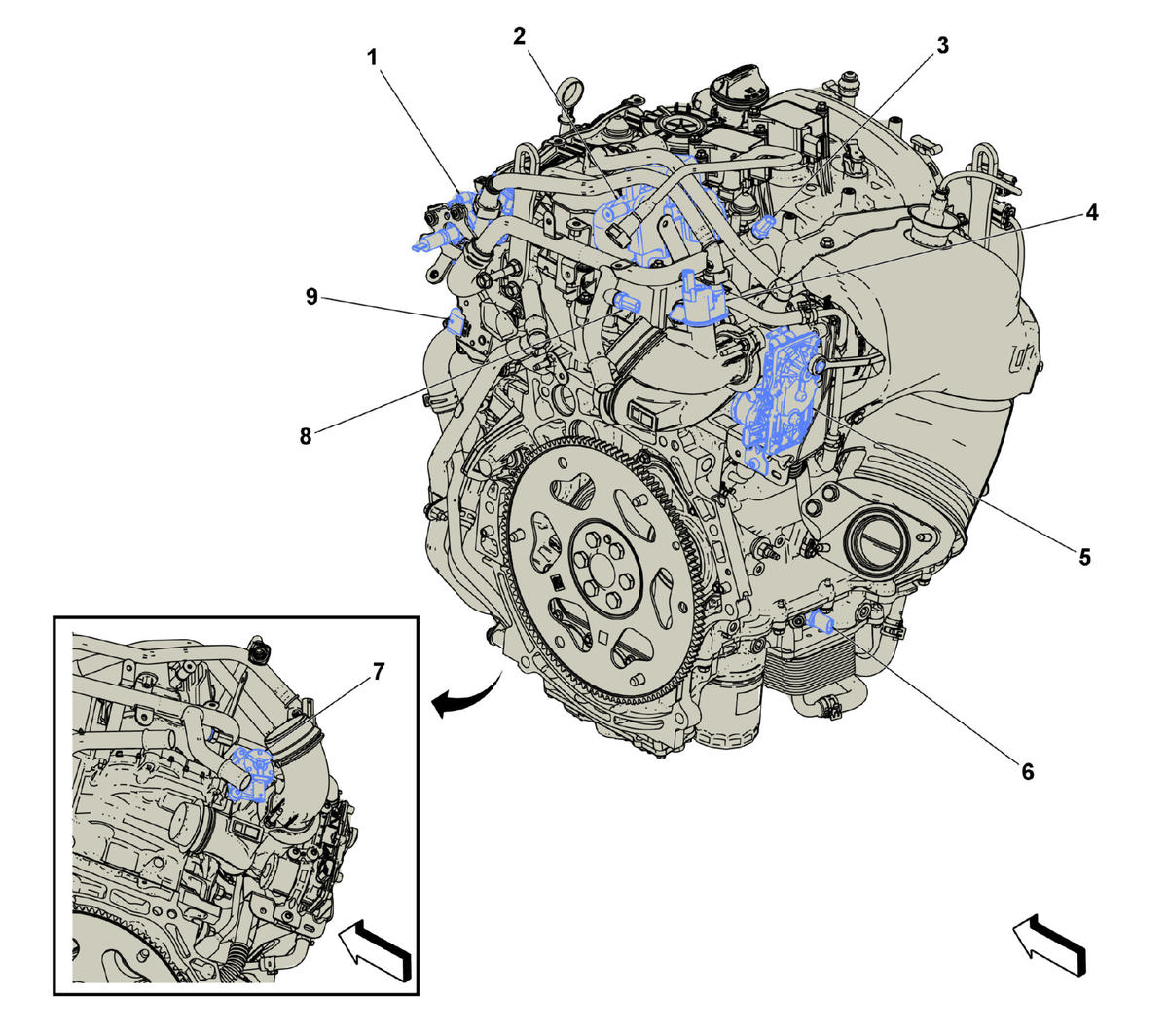

Engine - Right Rear Components (L3T/L3Z)
Engine - Right Rear Components (L3T/L3Z)
| Component Name | Callout |
|---|---|
| G58 Evaporative Emission Purge Pump G58 Evaporative Emission Purge Pump | 1 |
| G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump | 2 |
| B34A Engine Coolant Temperature Sensor 1 B34A Engine Coolant Temperature Sensor 1 | 3 |
| Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve | 4 |
| Q42 Turbocharger Wastegate Solenoid Valve | 5 |
| B36 Engine Oil Temperature Sensor B36 Engine Oil Temperature Sensor | 6 |
| Q40 Turbocharger Bypass Solenoid Valve Q40 Turbocharger Bypass Solenoid Valve | 7 |
| B34C Engine Coolant Temperature Sensor 3 B34C Engine Coolant Temperature Sensor 3 | 8 |
| Q97B Engine Coolant Flow Control Valve - Block Q97B Engine Coolant Flow Control Valve - Block | 9 |
