Intake Air Baffle Replacement

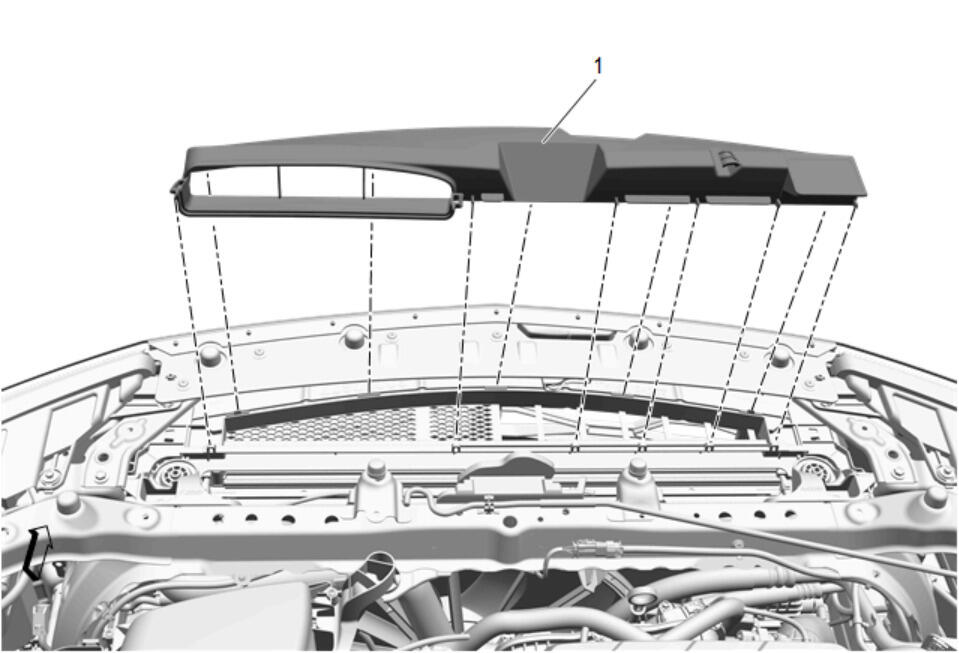

Intake Air Baffle Replacement
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Intake Air Duct Replacement
Hood Secondary Latch Release Cable Replacement
1
Intake Air Baffle
Procedure
Release the retainer tabs and remove the intake air baffle from the radiator air upper baffle.
