Installation Procedure

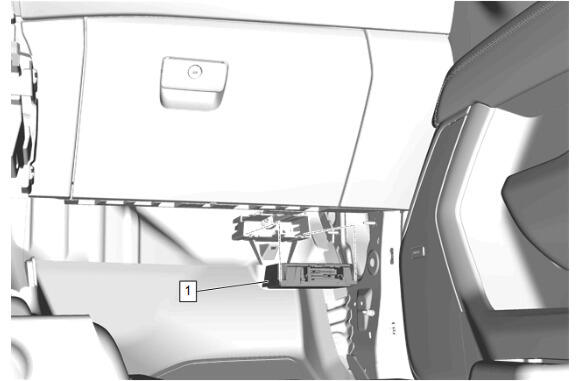

Multifunction Power Supply Converter (1) - Install

Courtesy of GENERAL MOTORS COMPANY

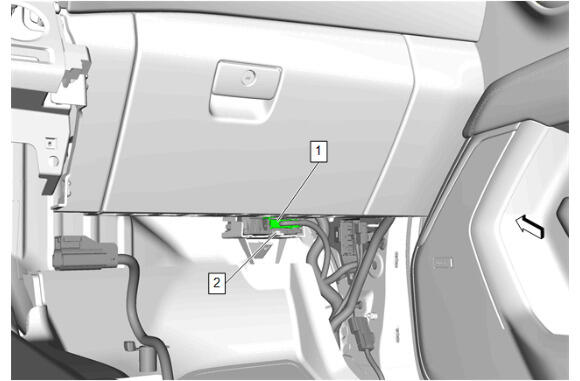

Electrical Connector (1) - Connect

Courtesy of GENERAL MOTORS COMPANY
Retaining Tab (2) - Engage

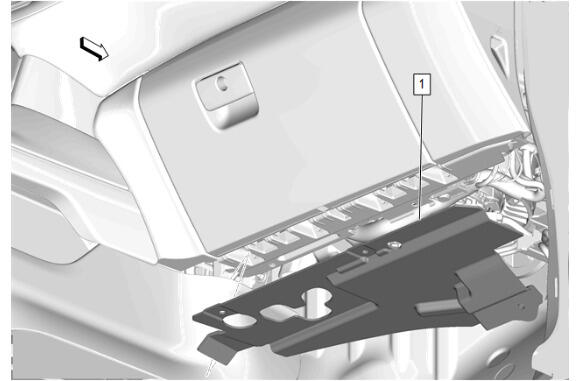

{If equipped}Instrument Panel Lower Trim Panel Insulator (1) - Install

Courtesy of GENERAL MOTORS COMPANY

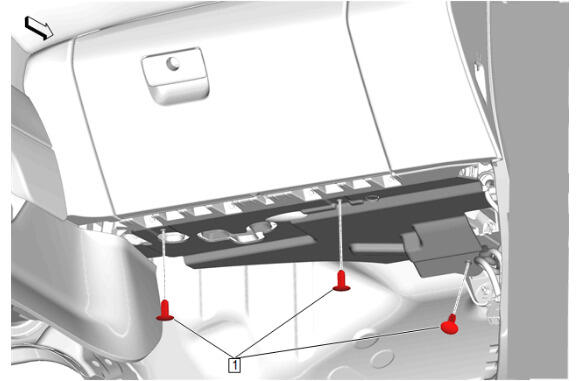

{If equipped}Instrument Panel Lower Insulator Retainer (1) - Install [3x]

Courtesy of GENERAL MOTORS COMPANY
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (9C1, 5W4) , or Battery Negative Cable Disconnection and Connection (KL9)
