Installation Procedure

  1. Engine Wiring Harness Fuse Block Bracket (3) - Install

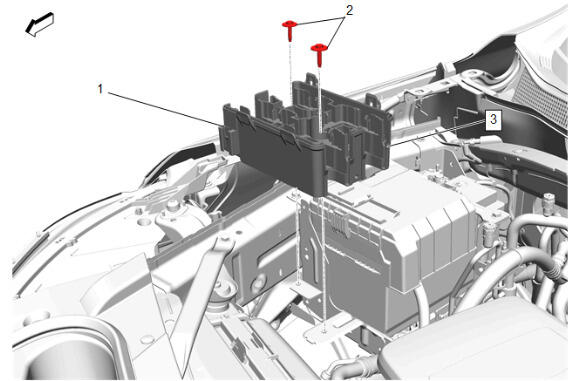

    GM5573198Courtesy of GENERAL MOTORS COMPANY
  2. Retaining Tab (1) - Engage
    3. CAUTION:

    Refer to Fastener Caution

  3. Engine Wiring Harness Fuse Block Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications
  4. Electrical Connector (1) - Install [4x]

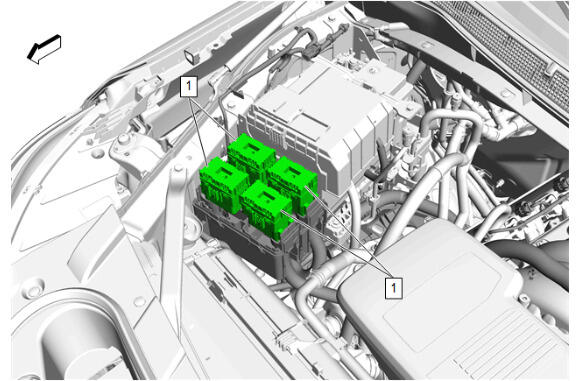

    GM5573073Courtesy of GENERAL MOTORS COMPANY
  5. Engine Wiring Harness Junction Block (3) - Install

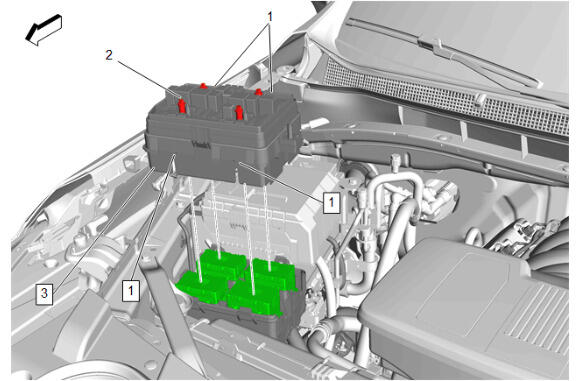

    GM5572883Courtesy of GENERAL MOTORS COMPANY
  6. Retaining Tab (1) - Engage [4x]
  7. Engine Wiring Harness Junction Block Bolt (2) - Tighten [4x] - Fastener Specifications
  8. Starter Solenoid Cable (4) - Install

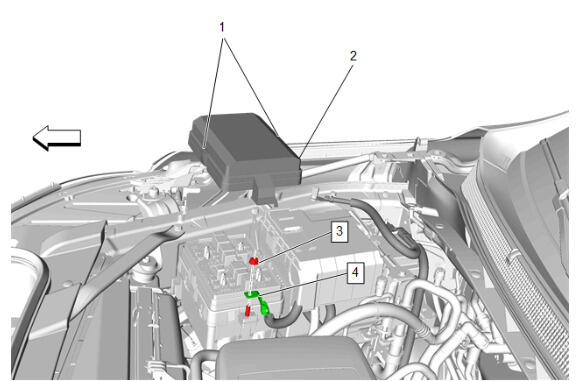

    GM5572790Courtesy of GENERAL MOTORS COMPANY
  9. Battery Positive Cable Nut (3) - Install and tighten - Fastener Specifications
  10. Engine Wiring Harness Junction Block Cover (2) - Install
  11. Retaining Tab (1) - Engage [2x]
  12. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (9C1, 5W4) , or Battery Negative Cable Disconnection and Connection (KL9)
