Installation Procedure

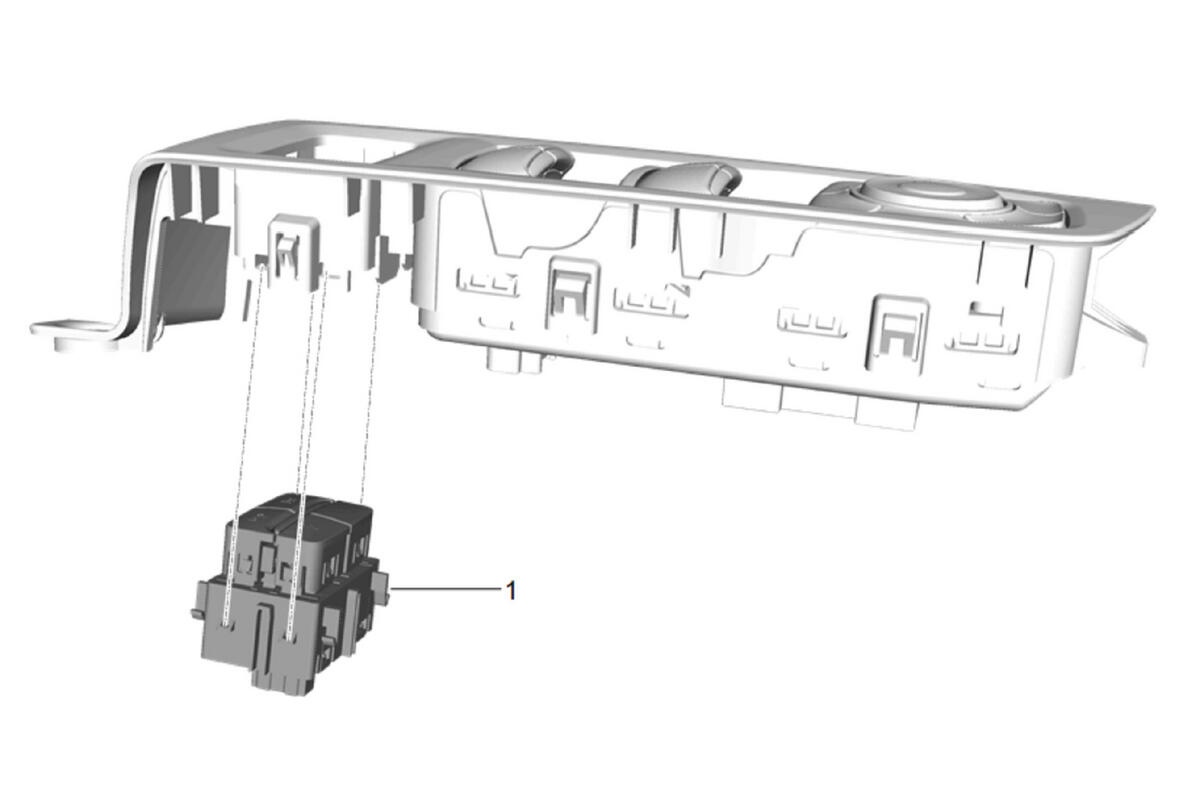

  1. GM5586902Courtesy of GENERAL MOTORS COMPANY

    Front Seat Adjuster Memory Switch (1) - Install

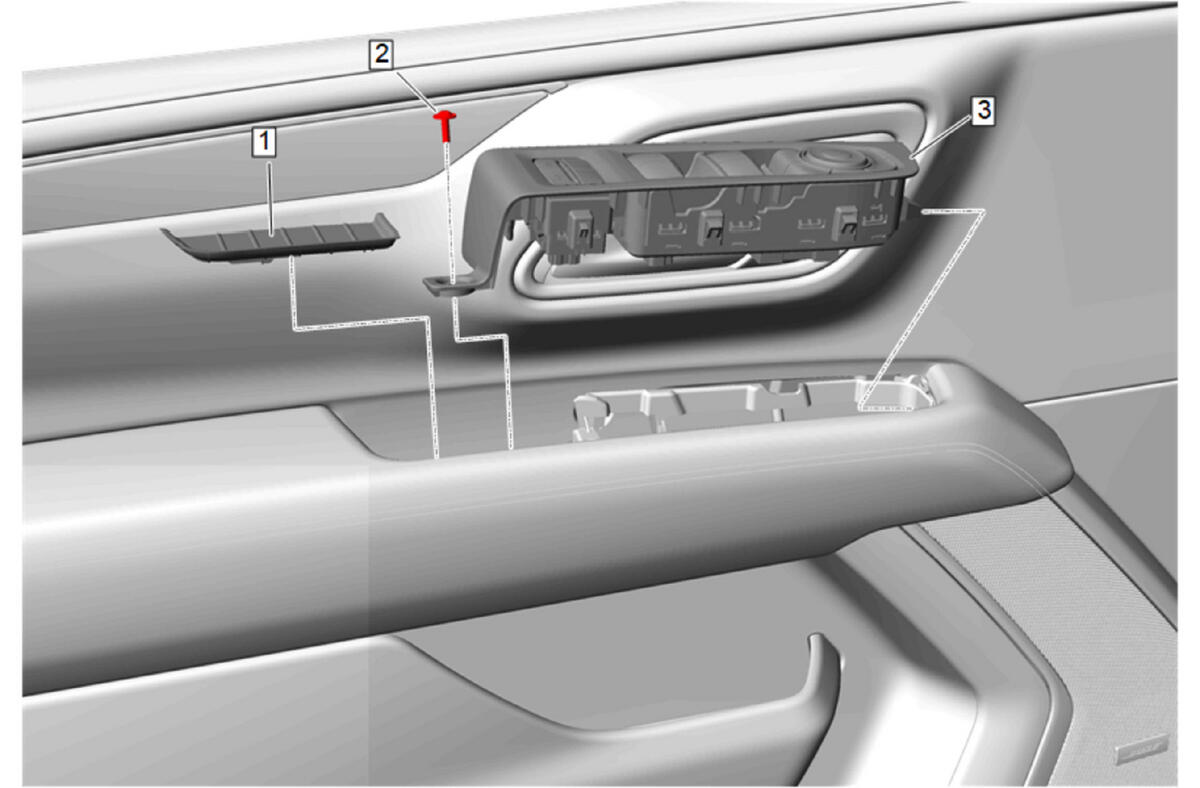

  2. GM5586900Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  3. Rotate the front side door accessory switch mount plate (3) up and forward to hook the front retaining feature.
  4. Front Side Door Accessory Switch Mount Plate - Driver Side (3) - Install
    5. CAUTION:

    Refer to Fastener Caution .

  5. Front Side Door Trim Bolt (2) - Install and tighten - Fastener Specifications
  6. Front Side Door Armrest Pull Cup Bolt Cap (1) - Install
