Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

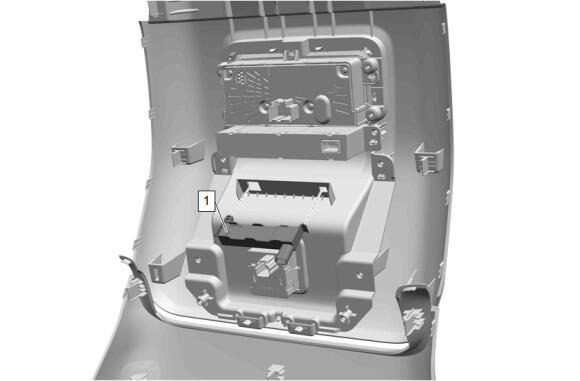

Low Frequency Console Number 2 Antenna (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.

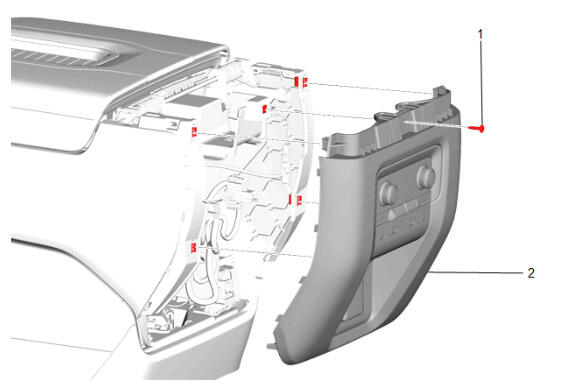

Front Floor Console Rear Trim Panel (2) - Install

CAUTION:

Front Floor Console Rear Cover Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

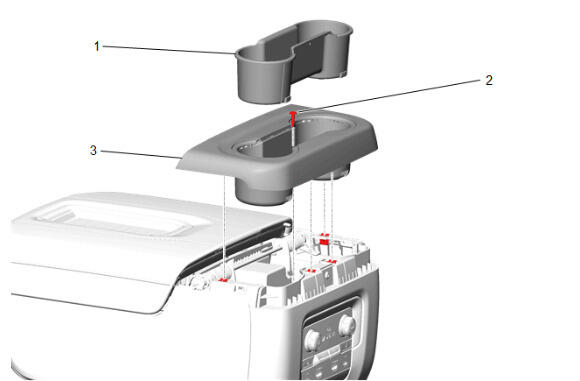

Front Floor Console Rear Cup Holder (3) - Install
Front Floor Console Cup Holder Bolt (2) - Install and tighten - Fastener Specifications

NOTE:

Make sure the liner is properly seated under the front floor console compartment bezel.
