Installation Procedure

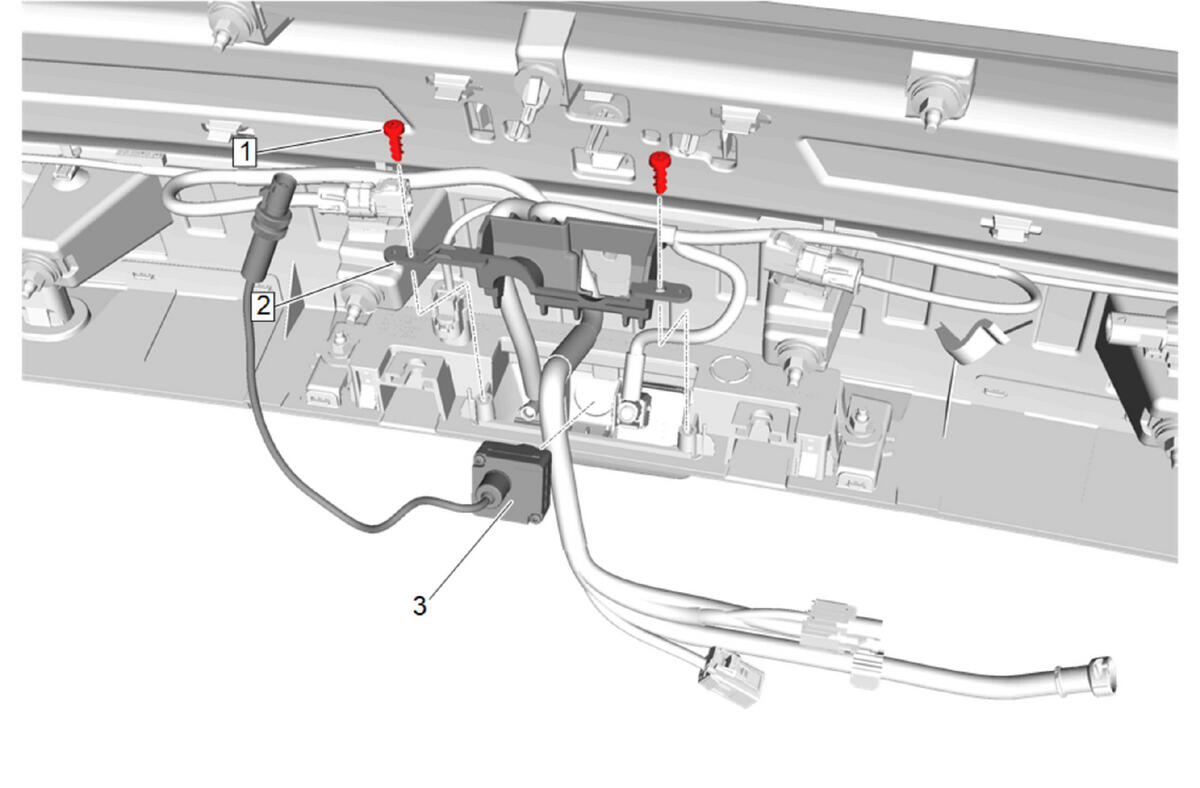

  1. GM5582382Courtesy of GENERAL MOTORS COMPANY

    Video Display Inside Rearview Mirror Camera (3) - Install

  2. Rearview Driver Information Camera Bracket (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Rearview Driver Information Camera Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications

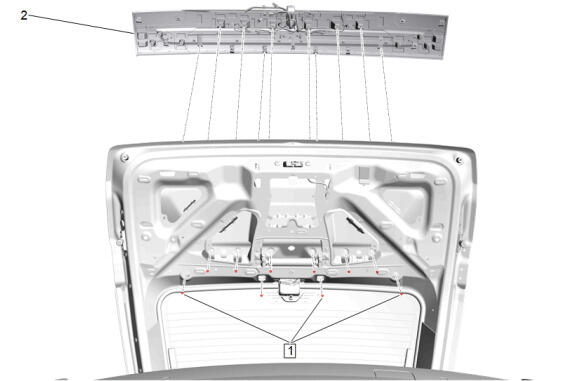

  4. GM5580426Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Center Applique (2) - Install

  5. Rear Closure Center Applique Nut (1) - Install and tighten [10x] - Fastener Specifications
  6. Connect the washer hose, If equipped.
  7. Connect all electrical connectors.

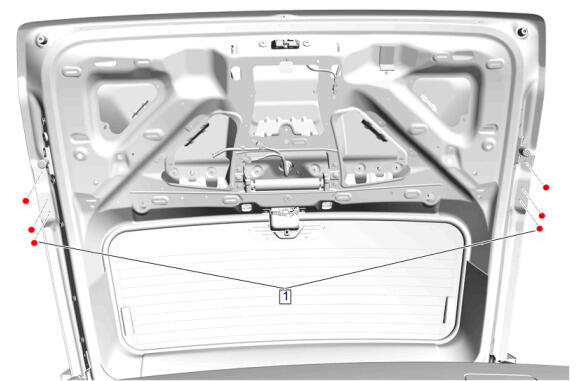

  8. GM5580421Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Center Applique Bolt (1) - Install and tighten [6x] - Fastener Specifications

  9. Liftgate Side Sensor - Install [2x]
  10. Connect the electrical connector.
  11. GM5577873Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  12. Liftgate Lower Trim Finish Panel (3) - Install
  13. Liftgate Lower Trim Finish Panel Bolt (2) - Install and tighten - Fastener Specifications
  14. Rear Compartment Lid Inner Panel Trim Hole Plug (1) - Install
  15. GM5577872Courtesy of GENERAL MOTORS COMPANY

    Liftgate Upper Side Trim Finish Panel (1) - Install [2x]

  16. GM5577870Courtesy of GENERAL MOTORS COMPANY

    Liftgate Upper Center Trim Finish Panel (1) - Install

  17. GM5584398Courtesy of GENERAL MOTORS COMPANY

    Liftgate Lower Trim Finish Panel Access Hole Cover (2) - Install

  18. Liftgate Trim Finish Panel Locator (1) - Install [2x]
  19. Close the liftgate window.
