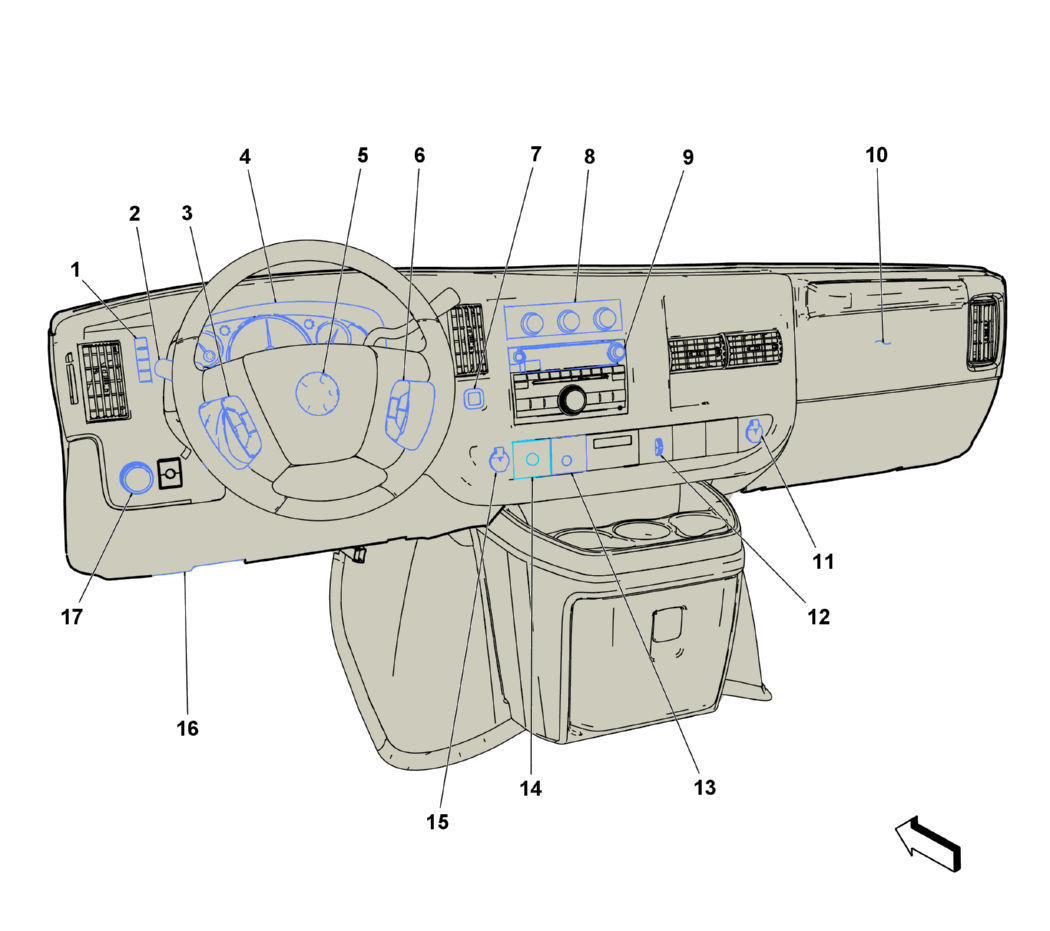

Instrument Panel Components (1 of 2)

GM5596414Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Components (1 of 2)

Component Name Callout
S16 Driver Information Center Switch S16 Driver Information Center Switch 1
S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch X1 , or S78 Turn Signal/Multifunction Switch X2 , or S78 Turn Signal/Multifunction Switch X3 2
S70L Steering Wheel Controls Switch - Left (K34) S70L Steering Wheel Controls Switch - Left (K34) 3
P16 Instrument Cluster P16 Instrument Cluster () 4
F107 Steering Wheel Air Bag 5
S70R Steering Wheel Controls Switch - Right (W1Y) S70R Steering Wheel Controls Switch - Right (W1Y) 6
S74 Tow/Haul Mode Switch (MYD) S74 Tow/Haul Mode Switch () 7
S34 HVAC Controls Switch Assembly S34 HVAC Controls Switch Assembly X1 , or S34 HVAC Controls Switch Assembly X2 () , or S34 HVAC Controls Switch Assembly X3 , or S34 HVAC Controls Switch Assembly X4 () 8
A11 Radio A11 Radio X1 () , or A11 Radio X2 () , or A11 Radio X6 9
F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag 10
X80B Accessory Power Receptacle - Center Console 2 X80B Accessory Power Receptacle - Center Console 2 11
S85 Auxiliary Blower Motor Switch (C36/C69) S85 Auxiliary Blower Motor Switch 12
S40 Passenger Air Bag Disable Switch (C99) S40 Passenger Air Bag Disable Switch () 13
S75 Traction Control Switch S75 Traction Control Switch 14
X80A Accessory Power Receptacle - Center Console 1 X80A Accessory Power Receptacle - Center Console 1 15
X84 Data Link Connector X84 Data Link Connector 16
S30 Headlamp Switch S30 Headlamp Switch () 17
