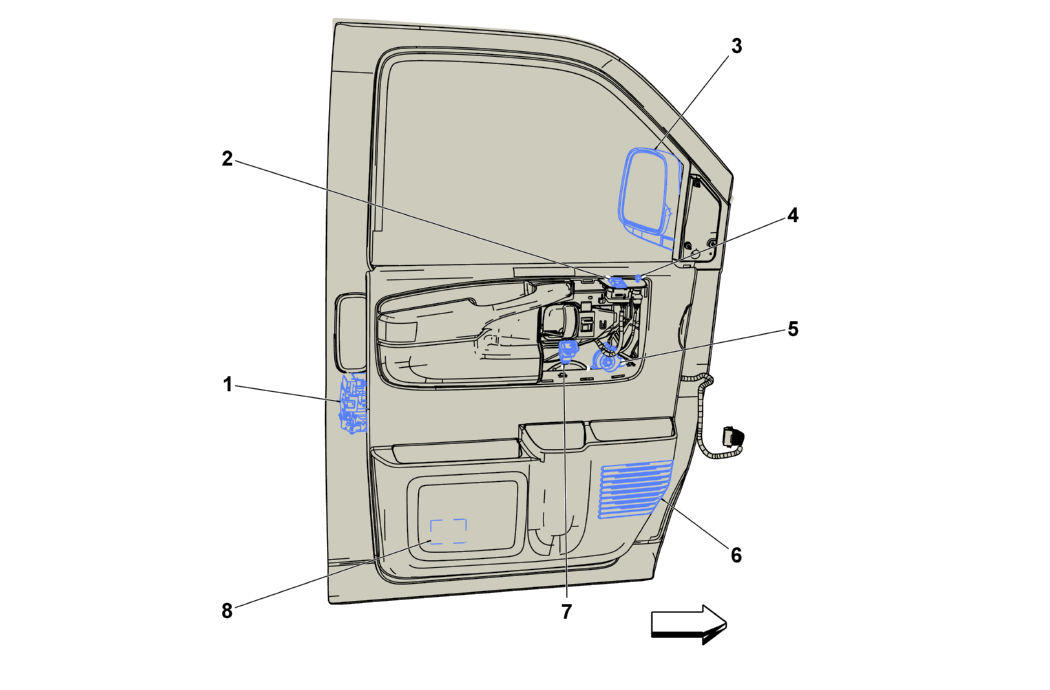

Driver Door Components
Driver Door Components
| Component Name | Callout |
|---|---|
| A23D Door Latch Assembly - Driver A23D Door Latch Assembly - Driver X1 , or A23D Door Latch Assembly - Driver X2 | 1 |
| S79D Window Switch - Driver (A31) S79D Window Switch - Driver | 2 |
| A9A Outside Rearview Mirror - Driver A9A Outside Rearview Mirror - Driver | 3 |
| S52 Outside Rearview Mirror Switch (DEB/DE5) S52 Outside Rearview Mirror Switch | 4 |
| M74D Window Motor - Driver (A31) M74D Window Motor - Driver | 5 |
| P19AG Speaker - Left Front Door P19AG Speaker - Left Front Door | 6 |
| S13D Door Lock Switch - Driver (AU3) S13D Door Lock Switch - Driver | 7 |
| B63LF Side Impact Sensor - Left Front (ASF) B63LF Side Impact Sensor - Left Front | 8 |
