Manifold Absolute Pressure Sensor Replacement

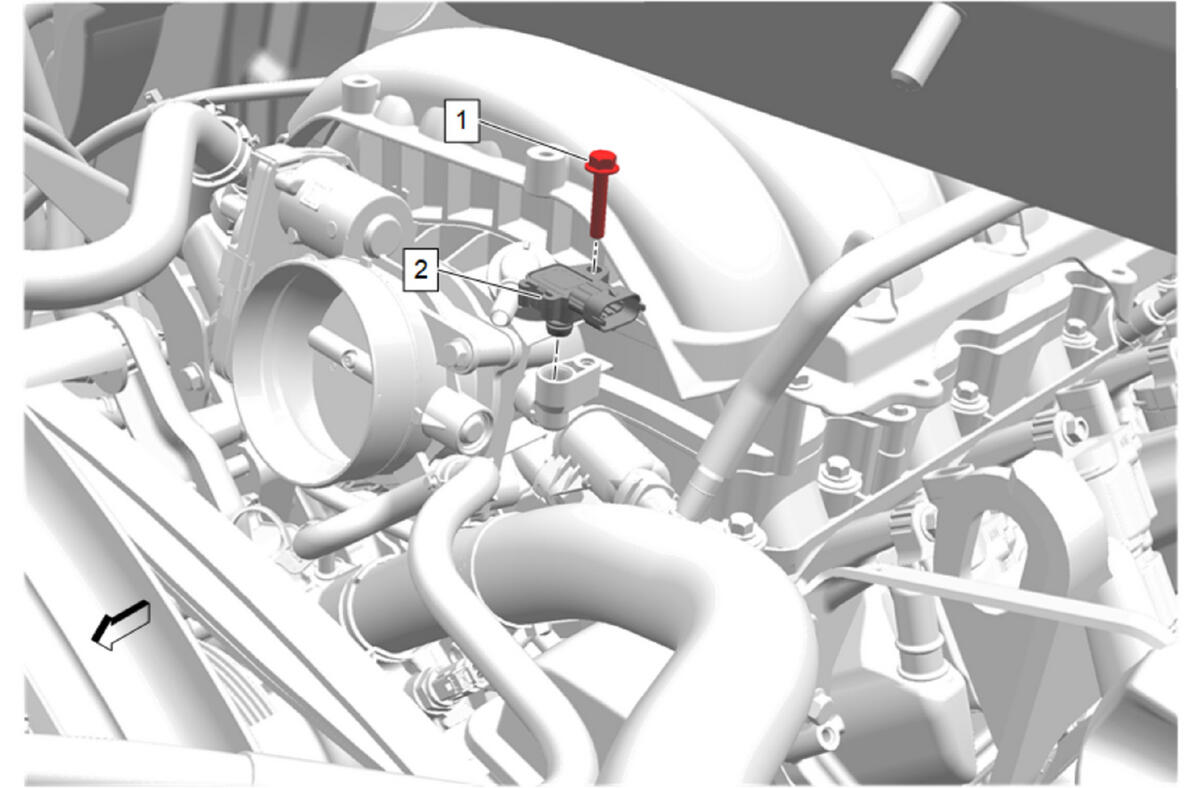

GM5661587Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Air Cleaner Outlet Duct Replacement
1 Manifold Absolute Pressure Sensor Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
4.5 N.m (40 lb in)
2
2 - Manifold Absolute Pressure Sensor
Procedure
Disconnect the electrical connector.
