Knock Sensor 2 Replacement

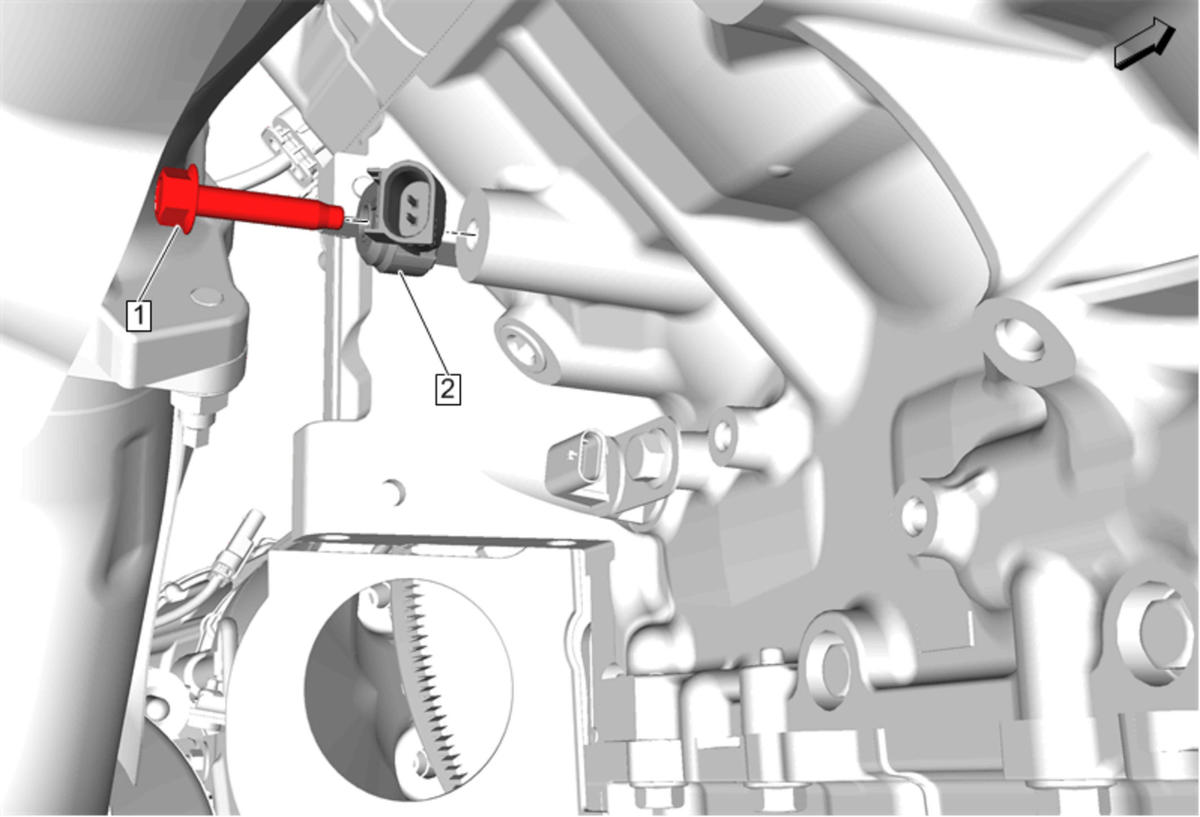

GM5282885Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Starter Replacement (L8T)
1 Knock Sensor Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
25 N.m (18 lb ft)
2
2 - Knock Sensor
Procedure
Disconnect the electrical connector.
