Installation Procedure

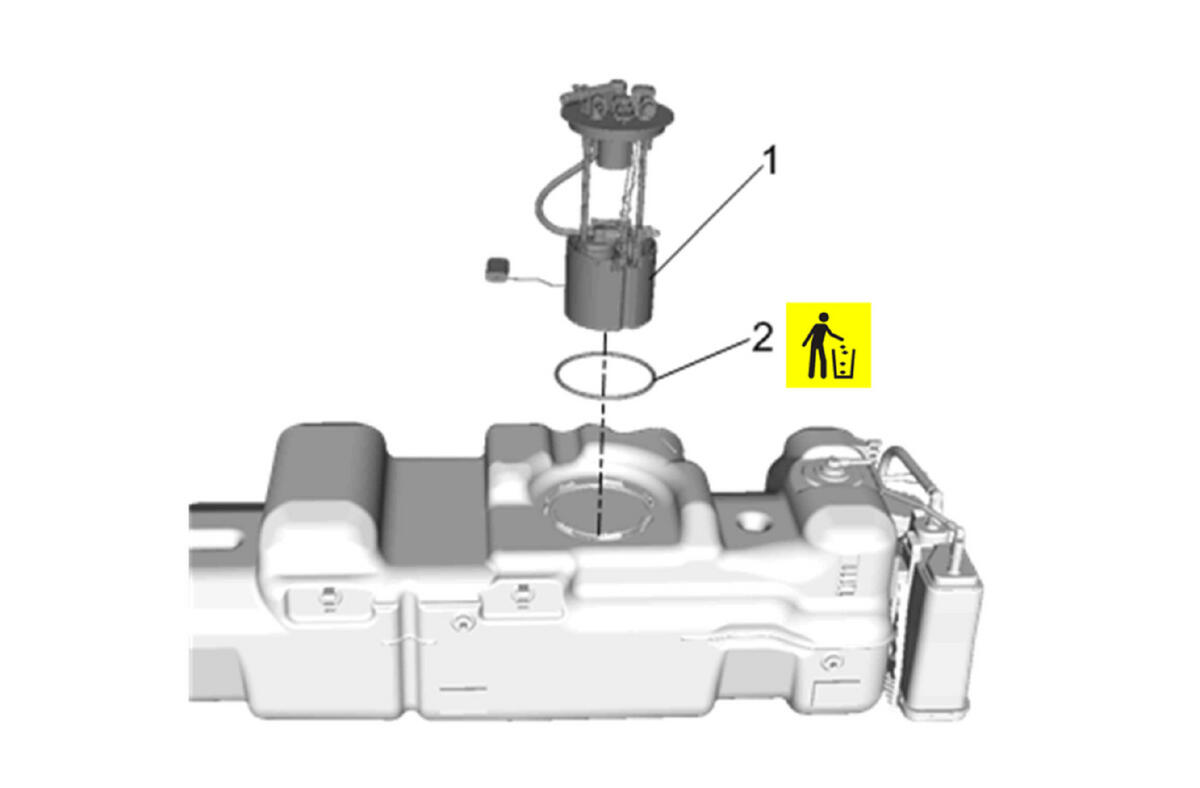

  1. GM4845798Courtesy of GENERAL MOTORS COMPANY

    O-Ring (2) - Install New

  2. Fuel Tank Fuel Pump Module (1) - Install

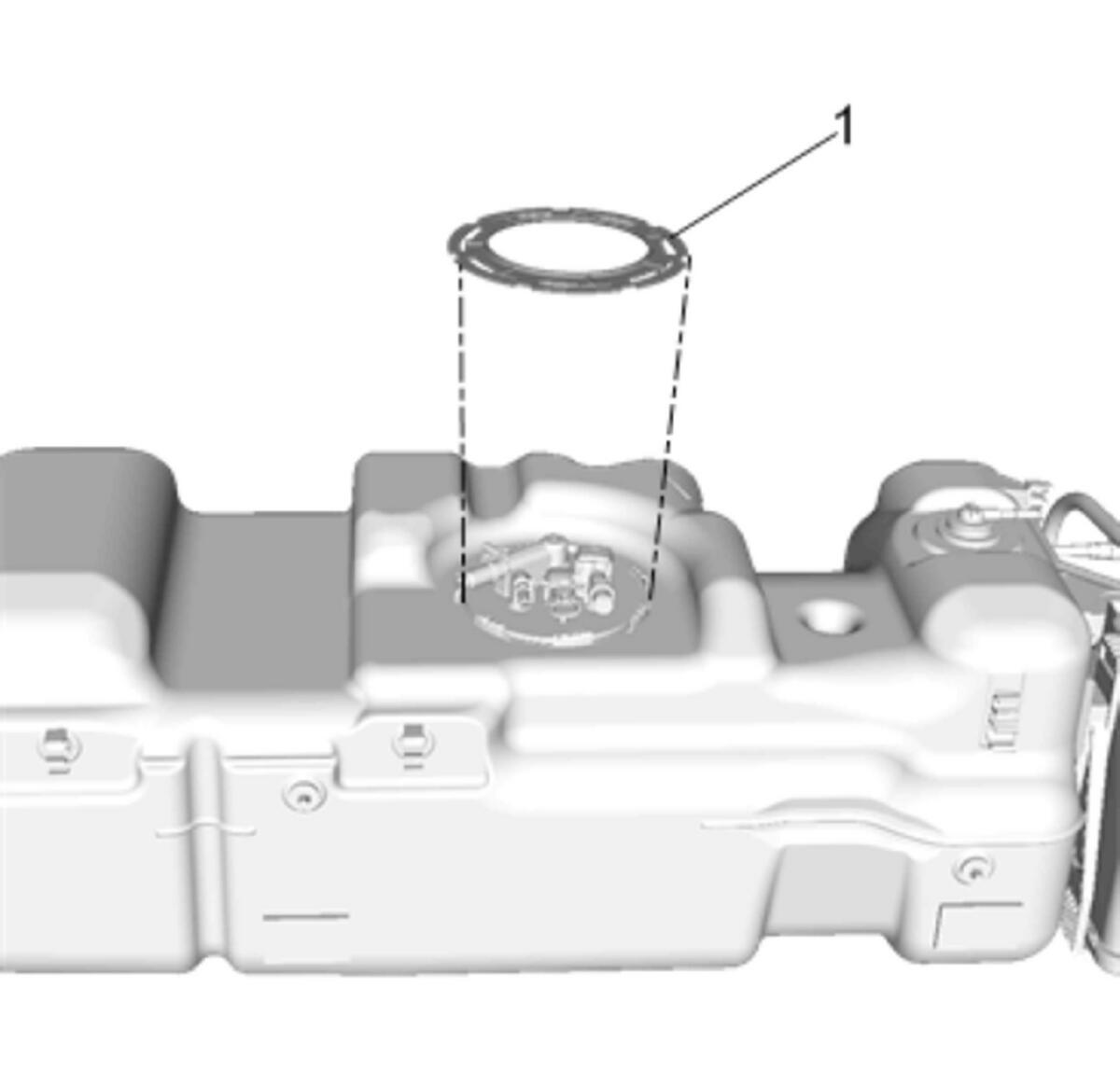

  3. GM4845796Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender Retainer (1) - Install - CH 45722  Fuel Sender Lock Ring Wrench

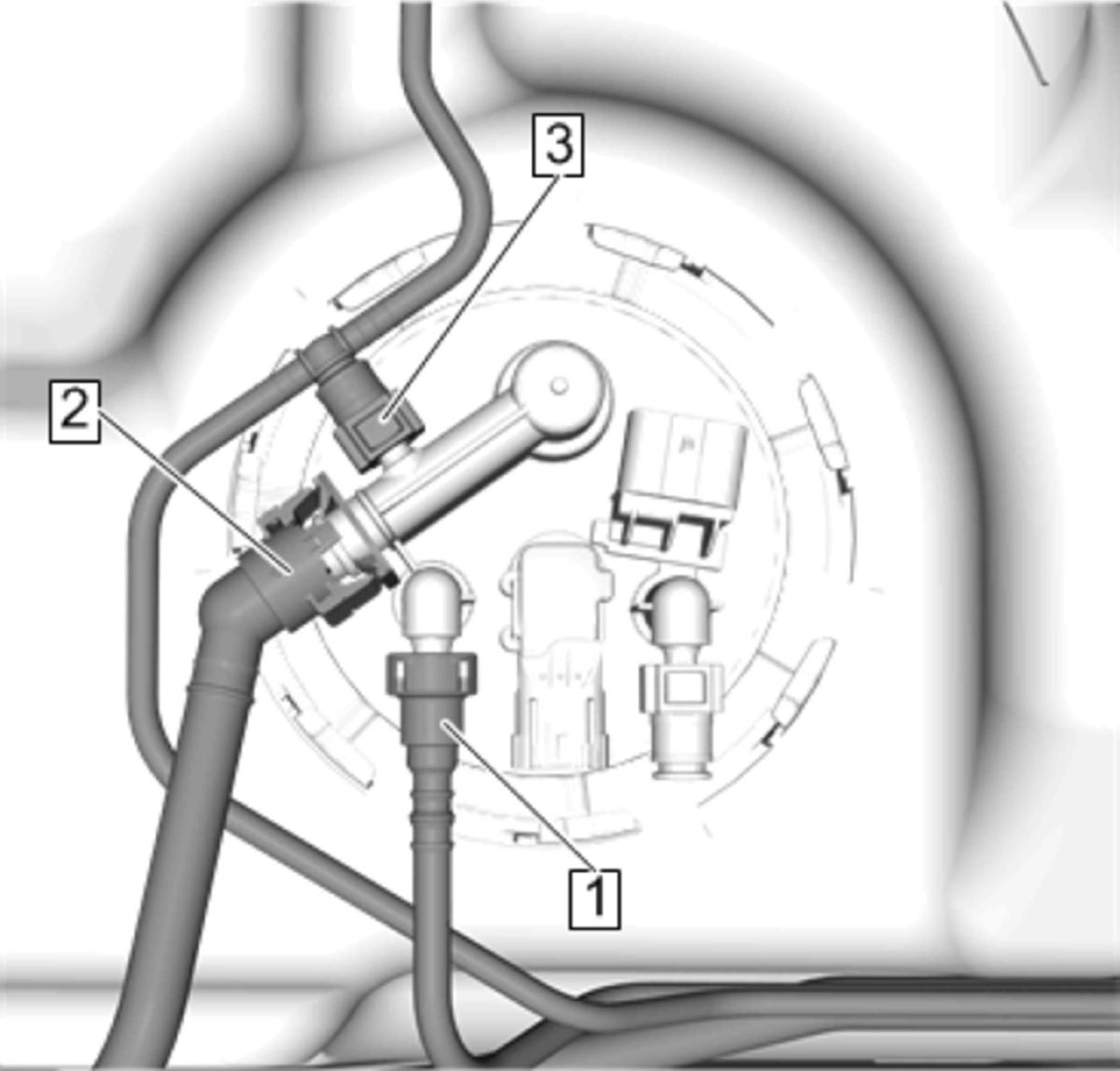

  4. GM5206594Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Front Hose (3) - Connect - Plastic Collar Quick Connect Fitting Service

  5. Evaporative Emission Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service
  6. Fuel Feed Pipe (1) - Connect - Plastic Collar Quick Connect Fitting Service
  7. Fuel Tank - Install - Fuel Tank Replacement (Long Wheelbase) , or Fuel Tank Replacement (Short Wheelbase)
