Engine Oil Pressure Sensor Replacement

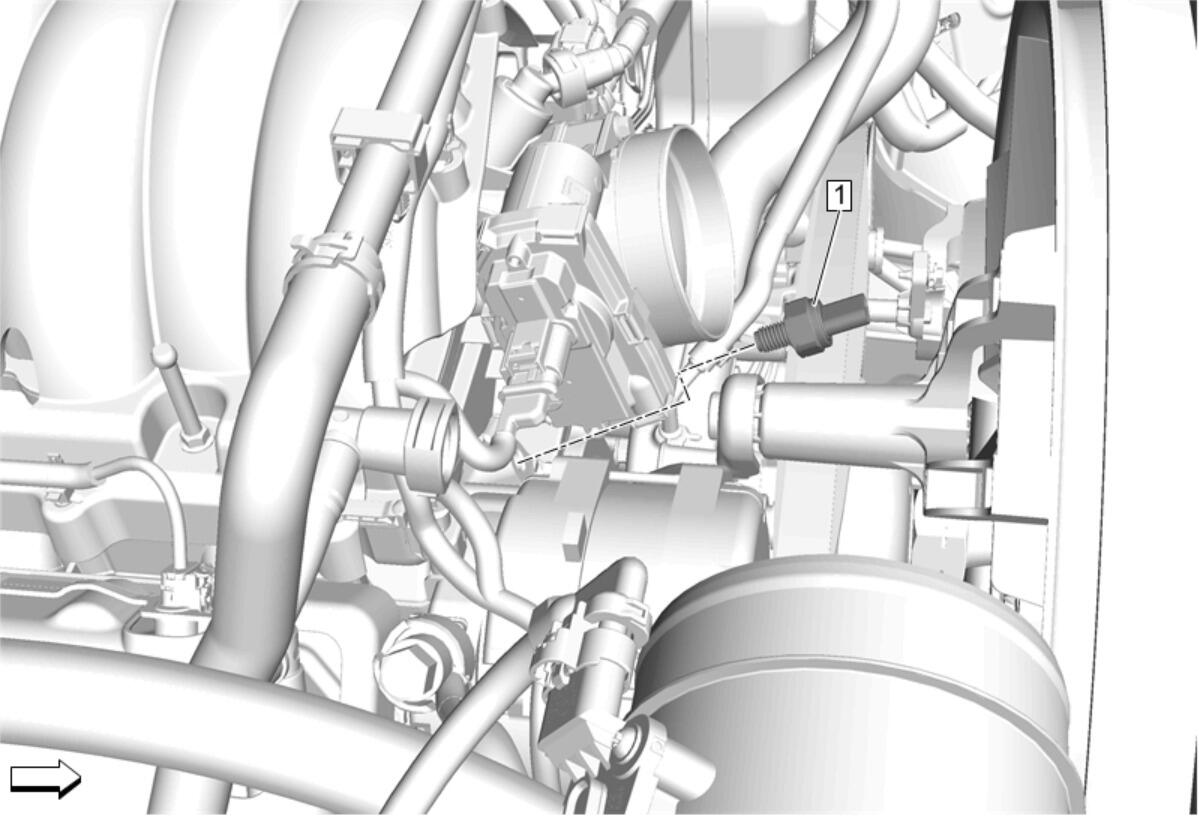

GM5311616Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Air Cleaner Outlet Duct Replacement
1
1 - Engine Oil Pressure Sensor
CAUTION:

Refer to Component Fastener Tightening Caution .


Procedure
Disconnect the electrical connector.
Tighten
35 N.m (26 lb ft)
