Engine Coolant Temperature Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Partially drain the cooling system. Cooling System Draining and Filling (Static L8T, LV1) , or Cooling System Draining and Filling (GE47716 L8T, LV1) Air Cleaner Outlet Duct Replacement

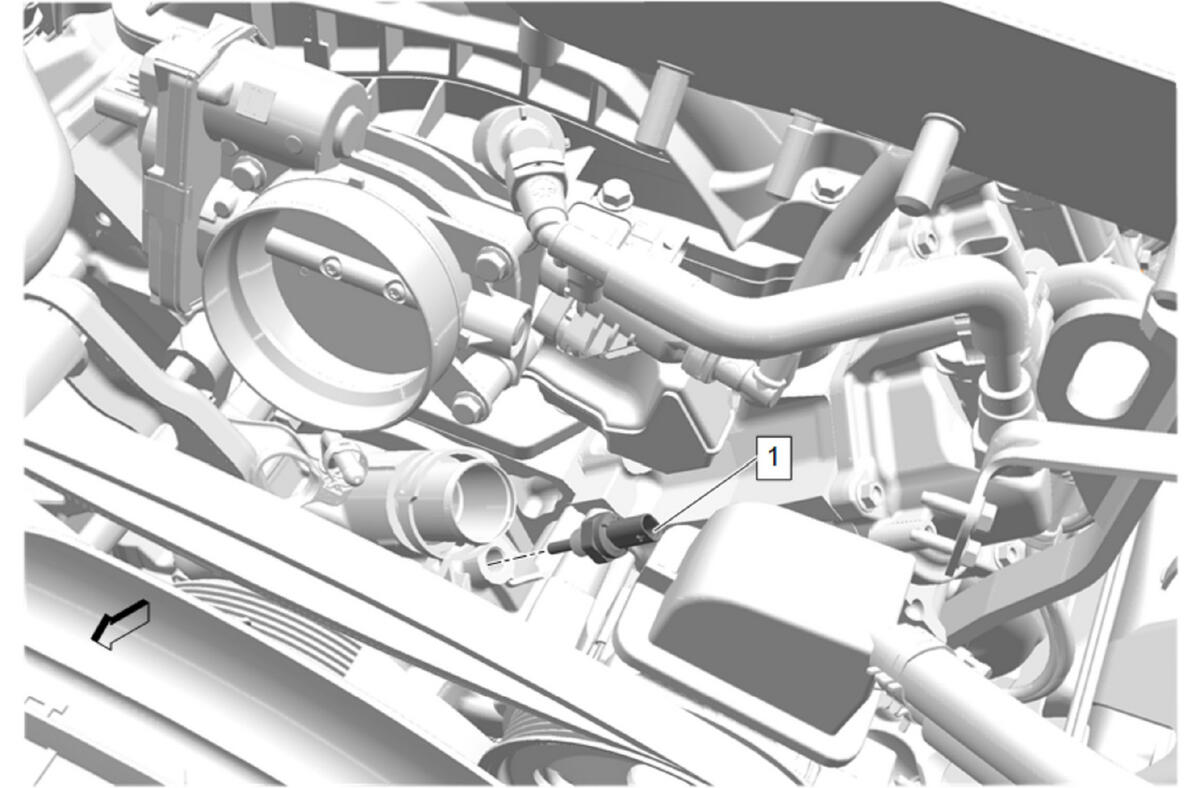

1	1 - Engine Coolant Temperature Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the electrical connector. Tighten 20 N.m (15 lb ft)

Callout

Component Name

Preliminary Procedures

1 - Engine Coolant Temperature Sensor

CAUTION:

Procedure
Disconnect the electrical connector.
Tighten
20 N.m (15 lb ft)
