Rear Side Door Latch Control Replacement

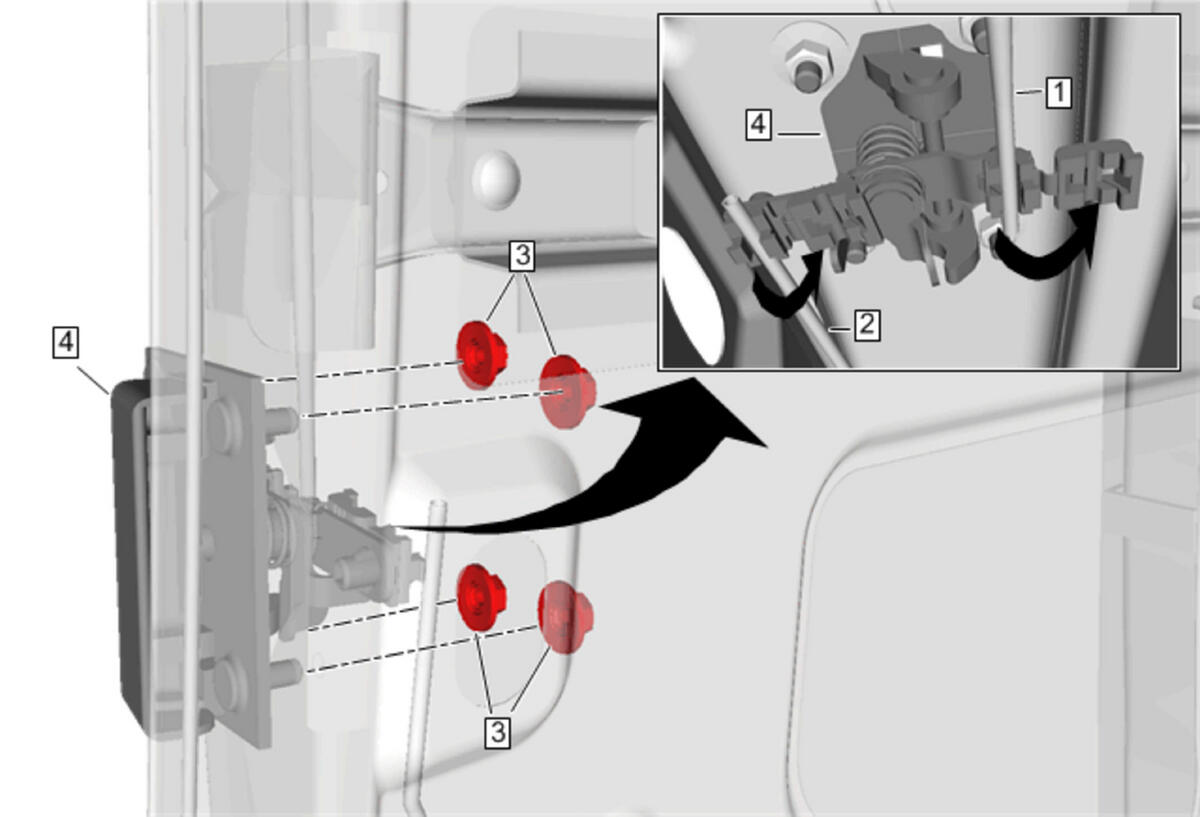

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove rear side 60/40 door trim panel - right side (E24, 40 door). Rear Side 60/40 Door Trim Panel Replacement - Right Side (E24, 40 Door) , or Rear Side 60/40 Door Trim Panel Replacement - Right Side (E24, 60 Door) |
|
| 1 | Rear Side Door Latch Rod |
| 2 | Rear Side Door Lower Latch Rod |
| 3 | Rear Side Door Latch Control Nut [4x]
CAUTION:
Refer to Fastener Caution . Tighten 7 N.m (62 lb in) |
| 4 | Rear Side Door Latch Control |
