Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Install the power steering pump bracket with the power steering pump bracket bolts.

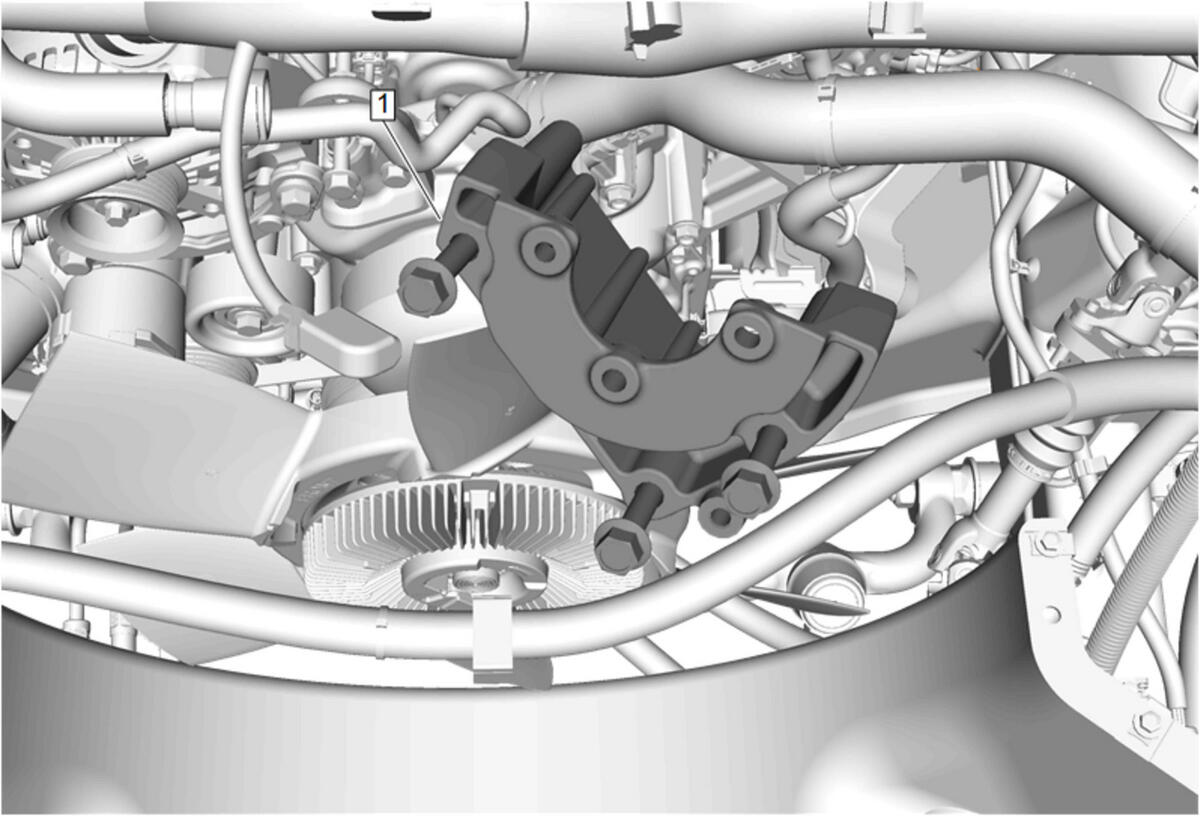

Install the power steering pump bracket (1) with the 3 power steering pump bracket bolts.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution .

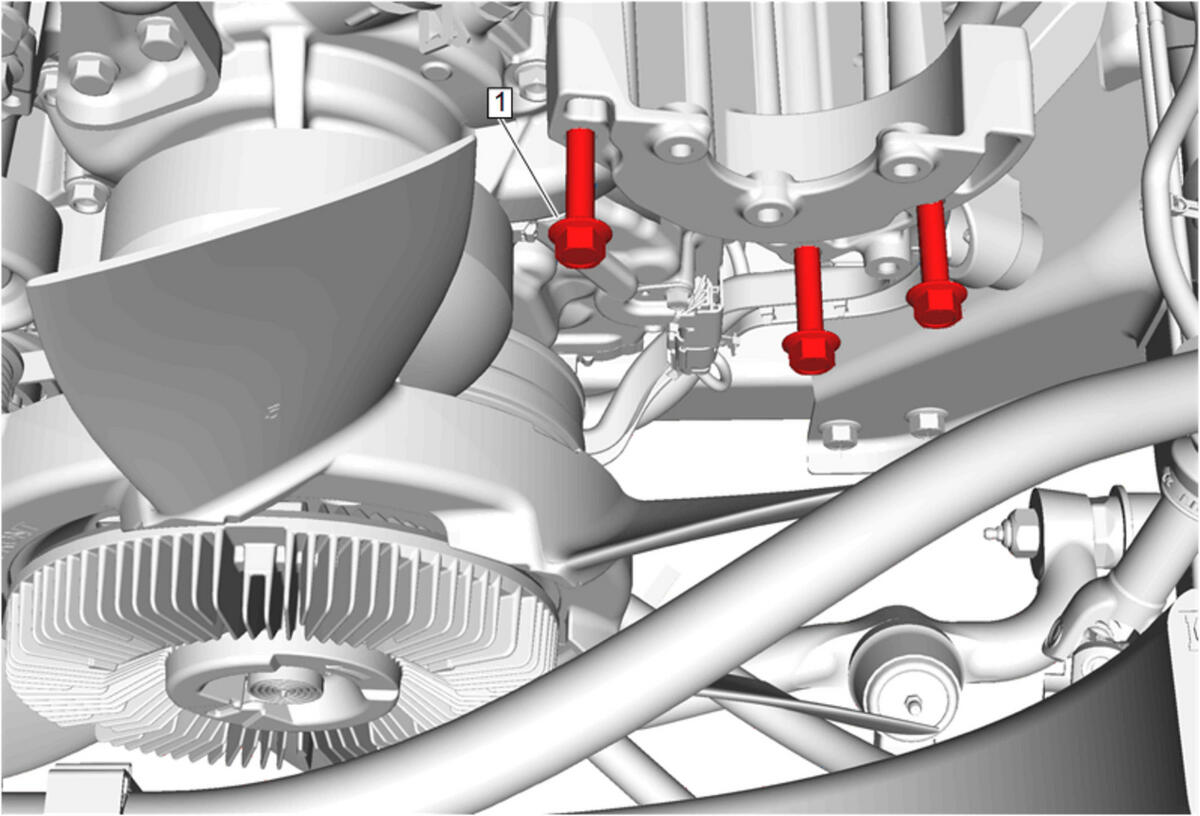

Power Steering Pump Bracket Bolt (1) - Install and tighten [3x] 58 N.m (43 lb ft)
Courtesy of GENERAL MOTORS COMPANY

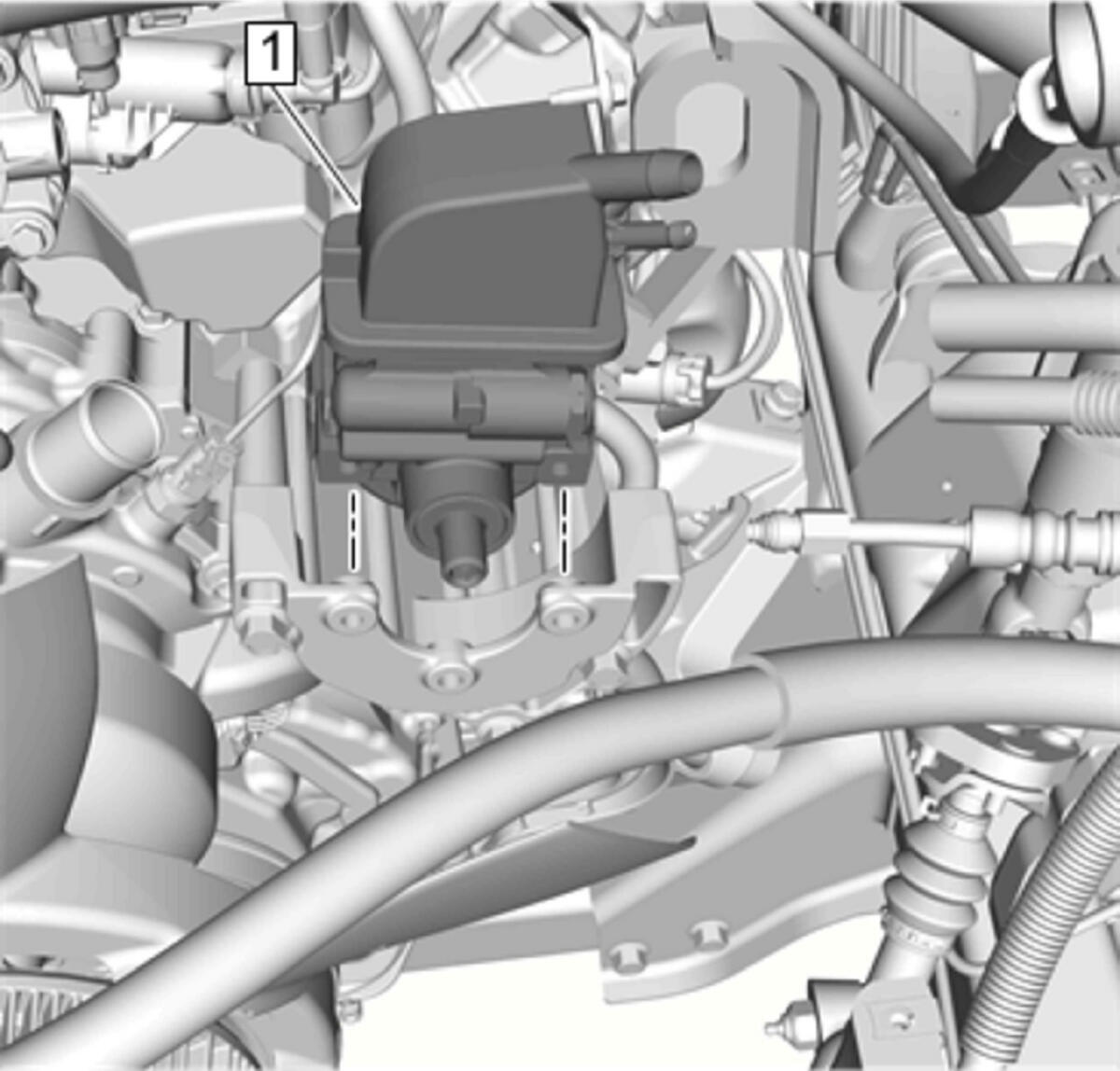

Power Steering Pump (1) - Install - Power Steering Pump Replacement (with LWN) , or Power Steering Pump Replacement (with LV1) , or Power Steering Pump Replacement (with L8T)
Courtesy of GENERAL MOTORS COMPANY

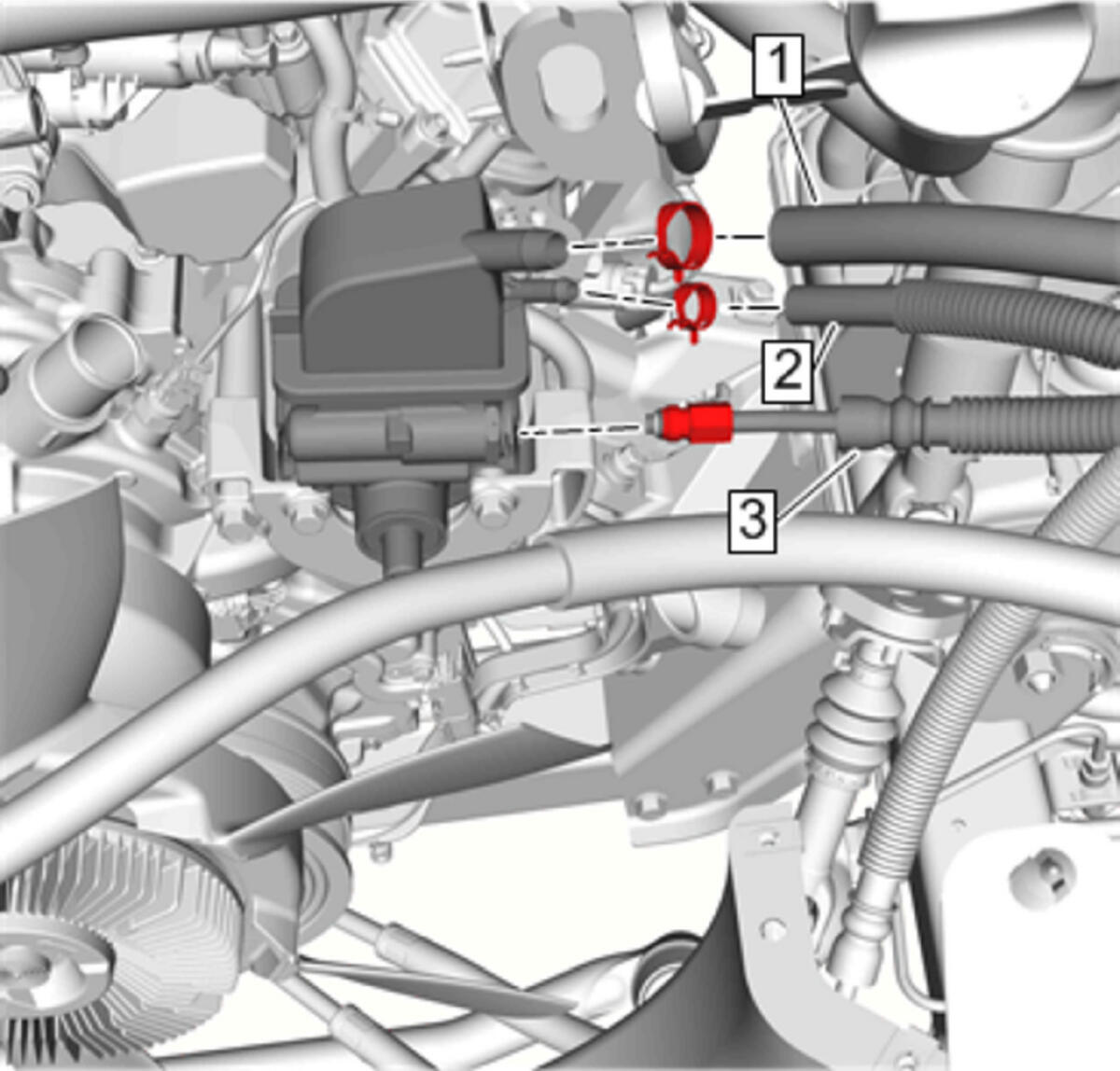

Power Brake Booster Inlet Hose (3) @ Power Steering Pump - Install - Power Brake Booster Inlet Hose Replacement (With LWN) , or Power Brake Booster Inlet Hose Replacement (Without LWN)
Power Steering Fluid Cooler Hose (2) @ Power Steering Pump - Install - Power Steering Cooler Pipe/Hose Replacement (with LV1, L8T, UJ1) , or Power Steering Cooler Pipe/Hose Replacement (with LV1, L8T, without UJ1)
Power Steering Fluid Reservoir Outlet Hose (1) @ Power Steering Pump - Install - Power Steering Fluid Reservoir Outlet Hose Replacement (With LWN) , or Power Steering Fluid Reservoir Outlet Hose Replacement (Without LWN)
Install the upper fan shroud. Engine Coolant Fan Upper Shroud Replacement (LWN) , or Engine Coolant Fan Upper Shroud Replacement (LV1) , or Engine Coolant Fan Upper Shroud Replacement (L8T)
Courtesy of GENERAL MOTORS COMPANY

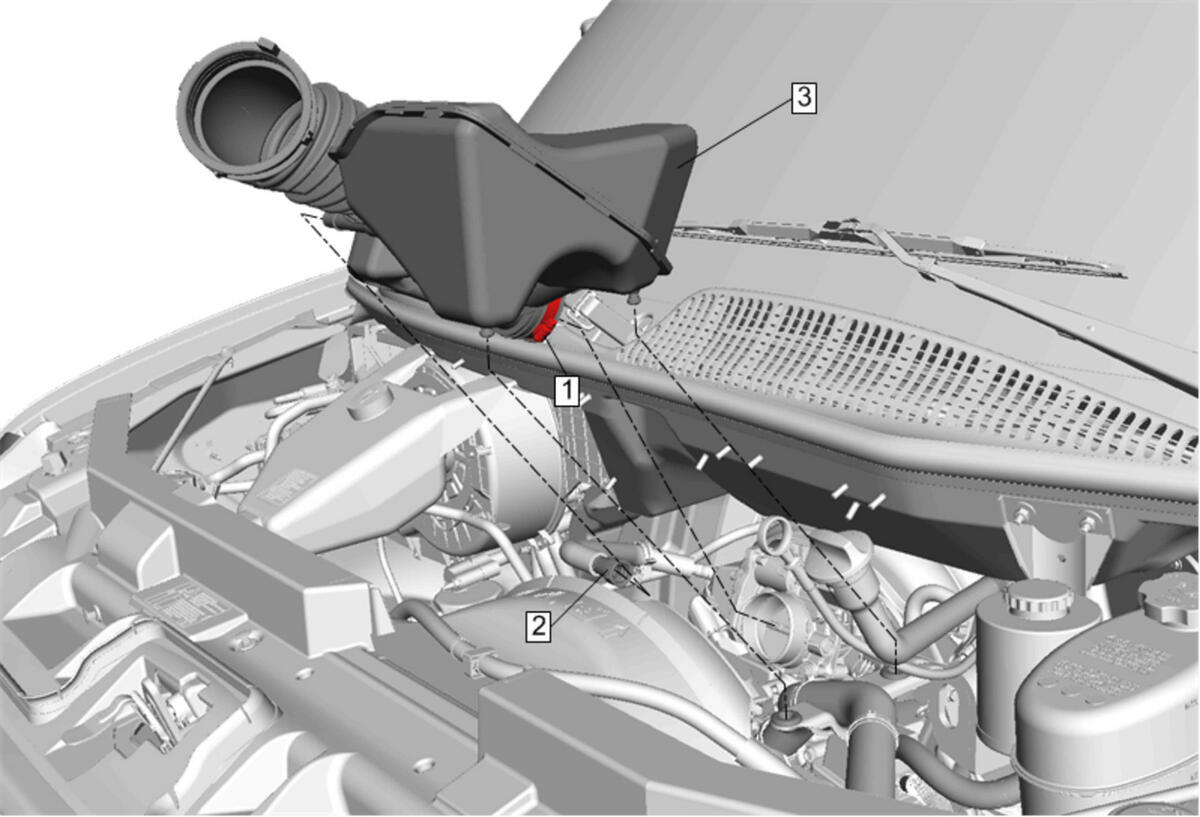

Air Cleaner Outlet Duct - Install - Air Cleaner Outlet Duct Replacement (LV1) , or Air Cleaner Outlet Duct Replacement (L8T) , or Air Cleaner Outlet Duct Replacement (LWN)
