Headliner Components
Headliner Components

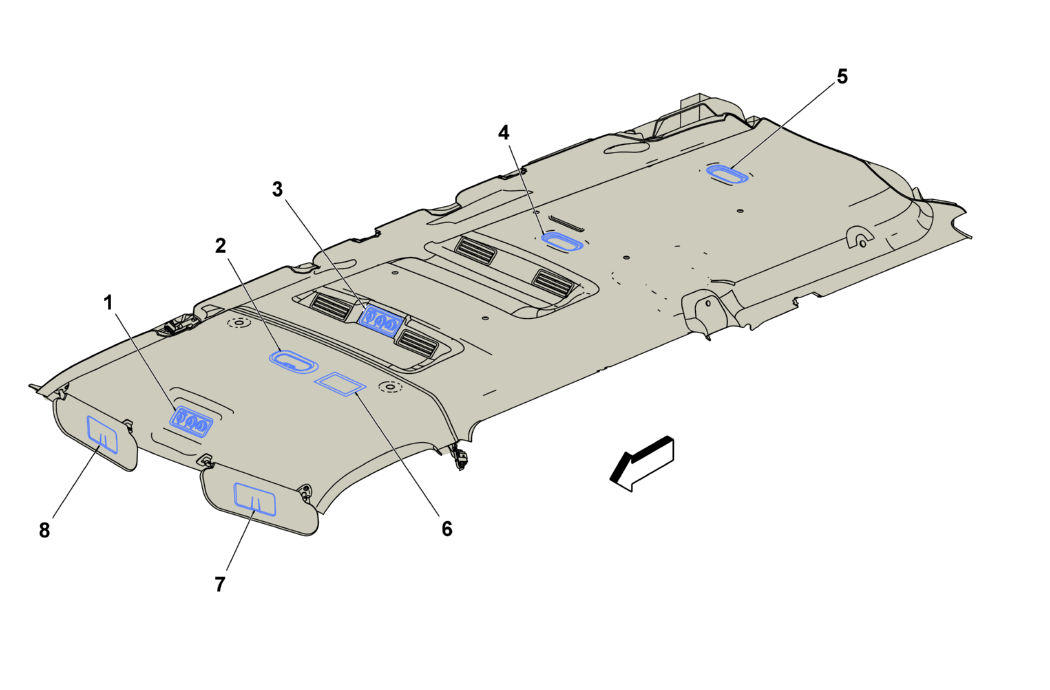

| Component Name | Callout |
|---|---|
| S34F HVAC Controls Switch Assembly - Auxiliary Front (C36/C69) S34F HVAC Controls Switch Assembly - Auxiliary Front (-Rear HVAC Control) , or S34F HVAC Controls Switch Assembly - Auxiliary Front (Rear HVAC Control) | 1 |
| E37F Dome/Reading Lamps - Front (Without YF7) E37F Dome/Reading Lamps - Front | 2 |
| S34R HVAC Controls Switch Assembly - Auxiliary Rear (C36/C69 with Rear HVAC Controls) S34R HVAC Controls Switch Assembly - Auxiliary Rear | 3 |
| E37M Dome/Reading Lamps - Middle (Passenger) E37M Dome/Reading Lamps - Middle | 4 |
| E37R Dome/Reading Lamps - Rear (Passenger) E37R Dome/Reading Lamps - Rear | 5 |
| K18 Compass Module (U80) K18 Compass Module | 6 |
| E31R Sunshade Mirror Lamp - Right (DH6) | 7 |
| E31L Sunshade Mirror Lamp - Left (DH6) | 8 |
