Engine Compartment Components (2 of 2)

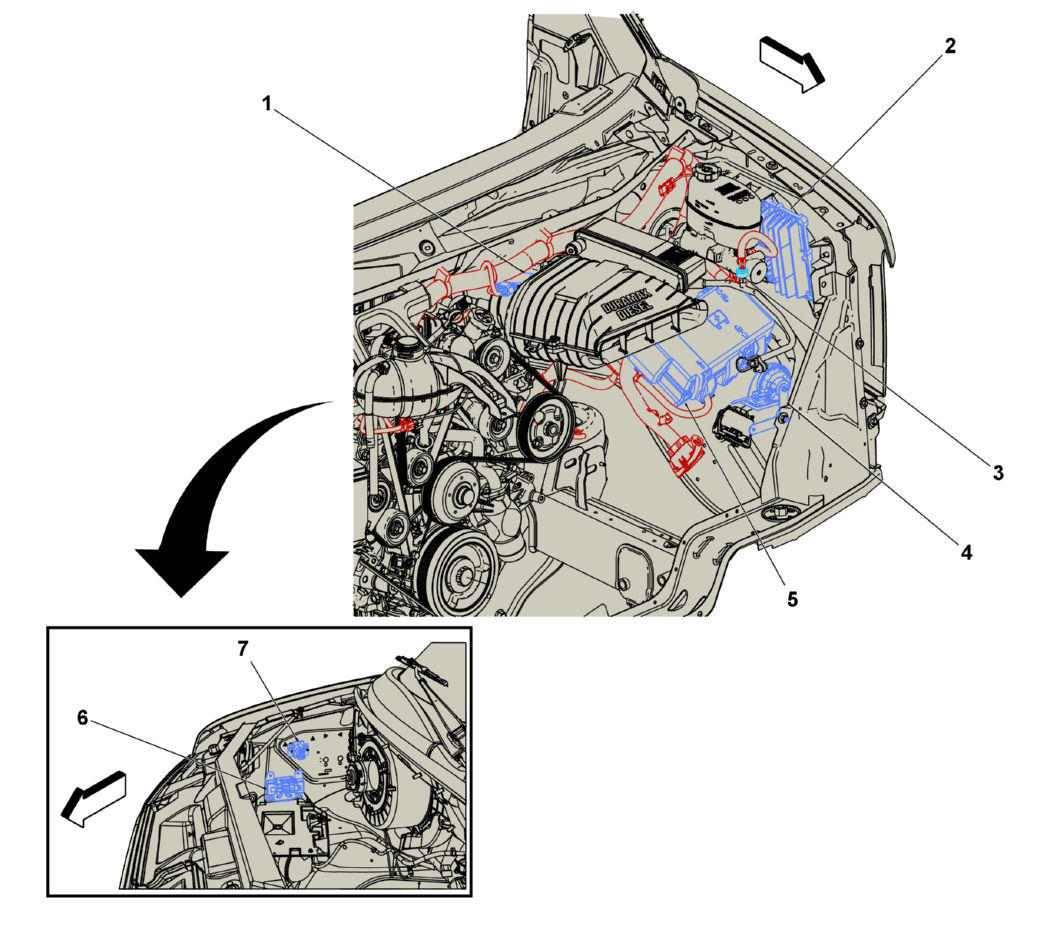

GM5709120Courtesy of GENERAL MOTORS COMPANY
Engine Compartment Components (2 of 2)

Component Name Callout
B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor (-LWN) , or B75C Multifunction Intake Air Sensor (LWN) 1
K20 Engine Control Module K20 Engine Control Module X1 (L8T) , or K20 Engine Control Module X1 (LV1) , or K20 Engine Control Module X1 (LWN) , or K20 Engine Control Module X2 (L8T) , or K20 Engine Control Module X2 (LV1) , or K20 Engine Control Module X2 (LWN) , or K20 Engine Control Module X3 (L8T) , or K20 Engine Control Module X3 (LV1) , or K20 Engine Control Module X3 (LWN) 2
B1 A/C Refrigerant Pressure Sensor (C60) B1 A/C Refrigerant Pressure Sensor (-LWN) , or B1 A/C Refrigerant Pressure Sensor (LWN) 3
P13 Horn Assembly P13 Horn Assembly 4
X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 , or X50A Fuse Block - Underhood X2 , or X50A Fuse Block - Underhood X3 , or X50A Fuse Block - Underhood X4 , or X50A Fuse Block - Underhood X5 , or X50A Fuse Block - Underhood X6 5
X55U Fuse Holder - Starter X55U Fuse Holder - Starter (L8T) , or X55U Fuse Holder - Starter X1 (LV1+KW5-TP3) , or X55U Fuse Holder - Starter X2 (LV1+KW5-TP3) 6
KR81 Auxiliary Battery Relay 1 KR81 Auxiliary Battery Relay 1 X 1 , or KR81 Auxiliary Battery Relay 1 X 2 , or KR81 Auxiliary Battery Relay 1 X 3 (-TP2) , or KR81 Auxiliary Battery Relay 1 X 3 (TP2) 7
