Installation Procedure

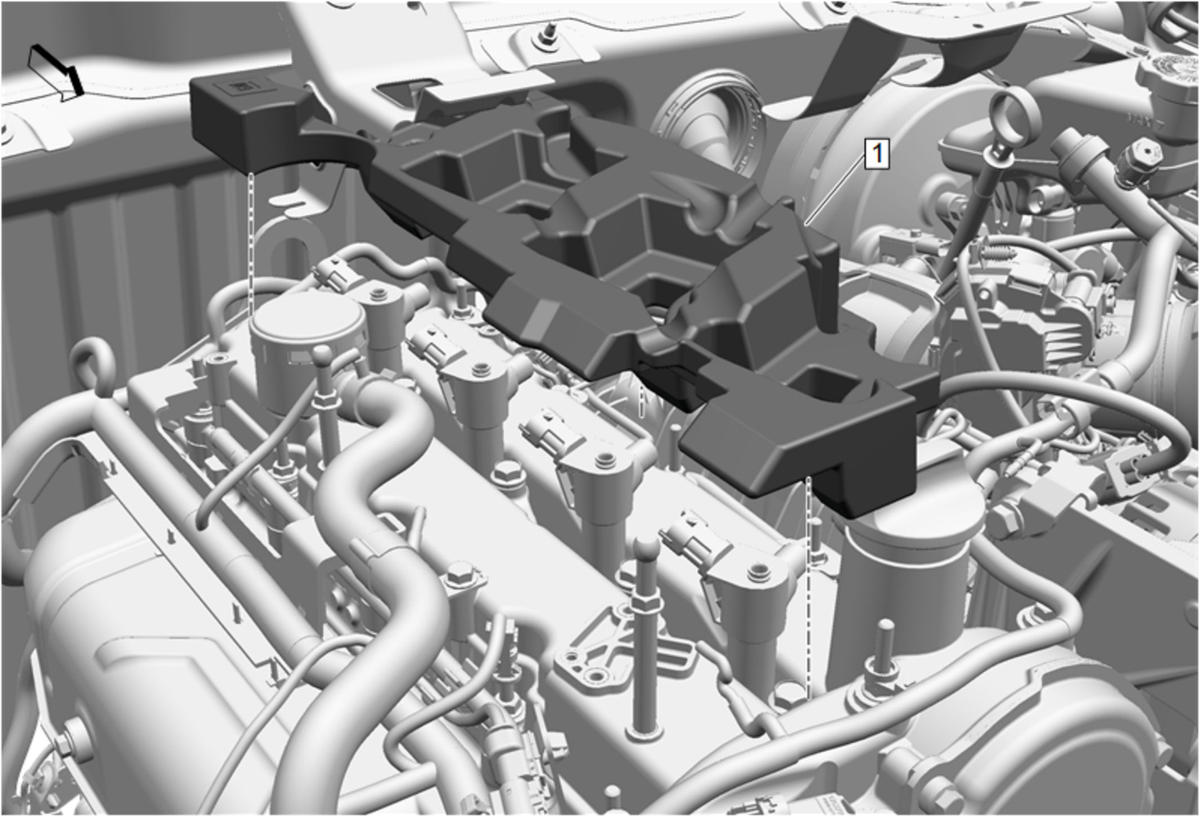

  1. GM5035097Courtesy of GENERAL MOTORS COMPANY

    Fuel Injector Deadener (1) - Install

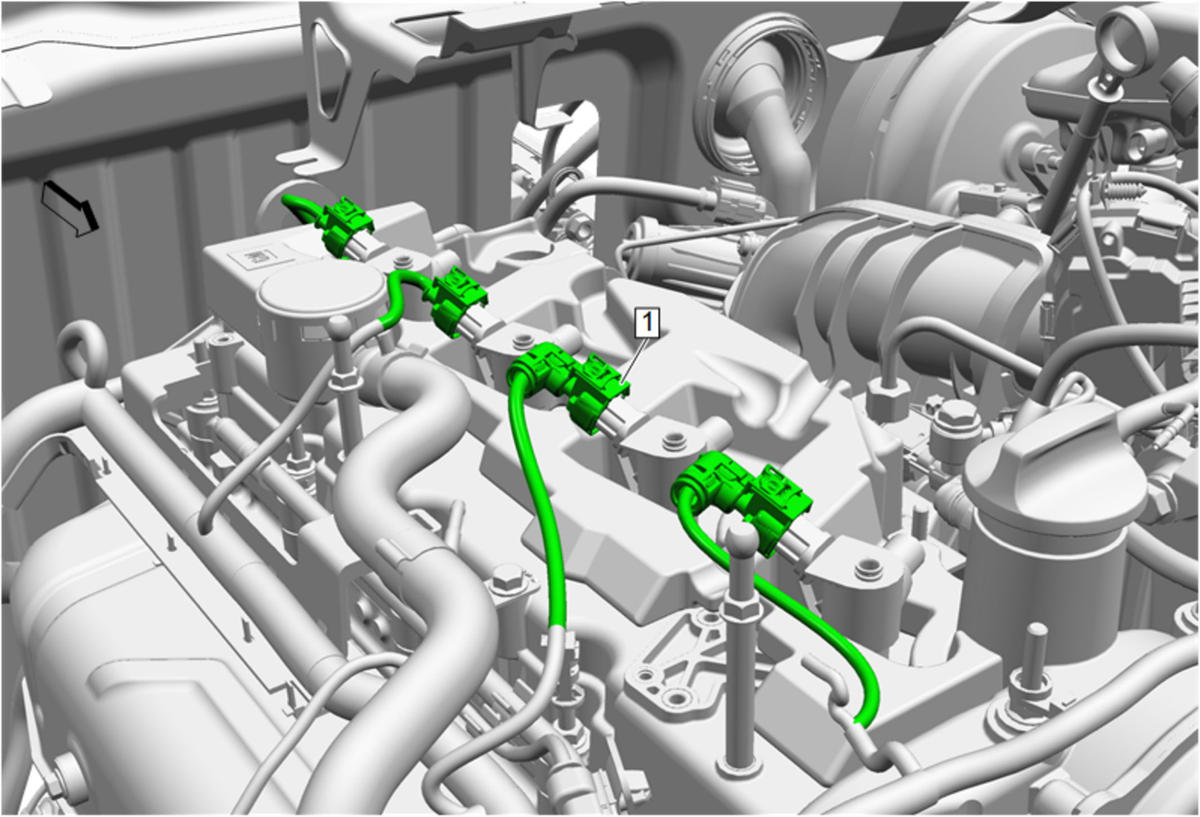

  2. GM5035074Courtesy of GENERAL MOTORS COMPANY

    Fuel Injector Electrical Connector (1) - Connect [4x]

  3. Intake Manifold Tuning Valve Vacuum Control Solenoid Valve Replacement  - Install
  4. Fuel Injection Fuel Rail Assembly Replacement  - Install
  5. Fuel Injection Fuel Return Pipe Replacement  - Install
  6. Plenum Front Panel Replacement - Install
