Sliding Door Rear Lock Replacement

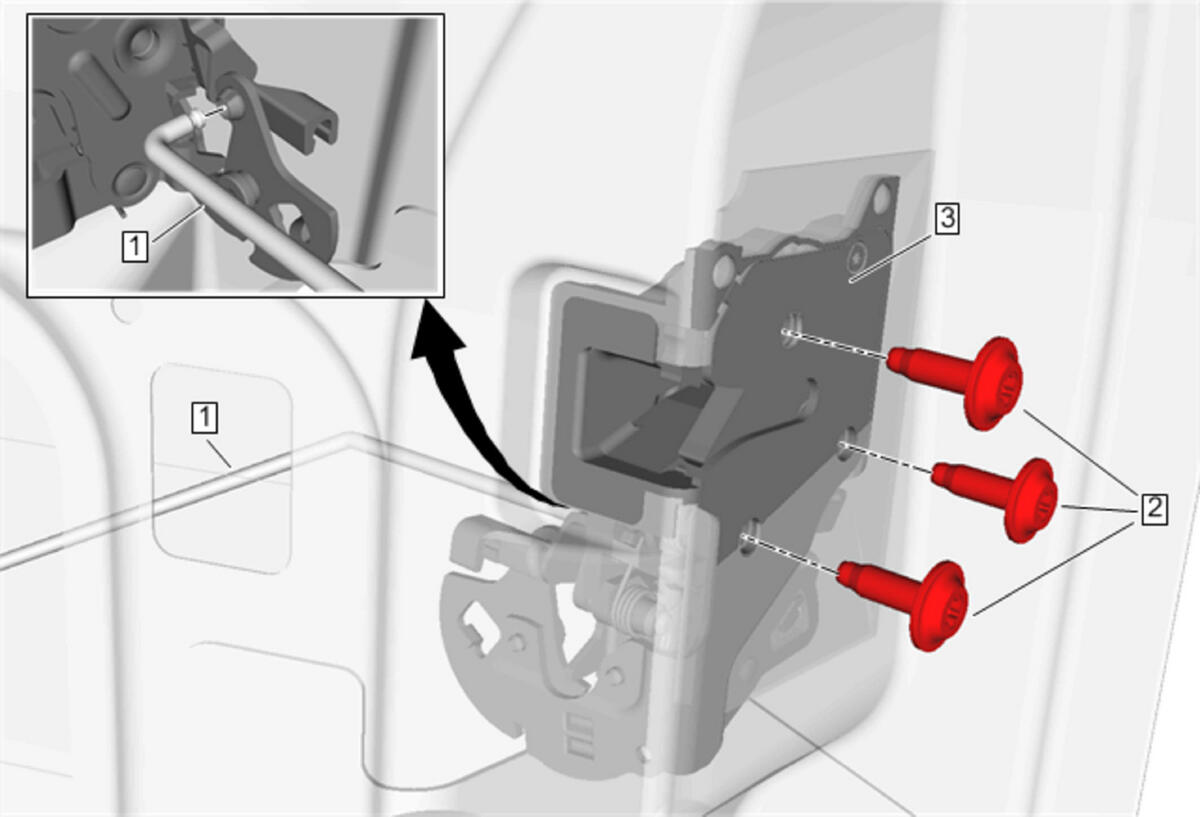

| Callout | Component Name |
|---|---|
| Preliminary Procedure Sliding Rear Side Door Trim Panel Replacement |
|
| 1 | Rear Side Door Latch Rod |
| 2 | Rear Side Door Latch Bolt [3x]
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (88 lb in) |
| 3 | Sliding Door Rear Lock |
