Installation Procedure

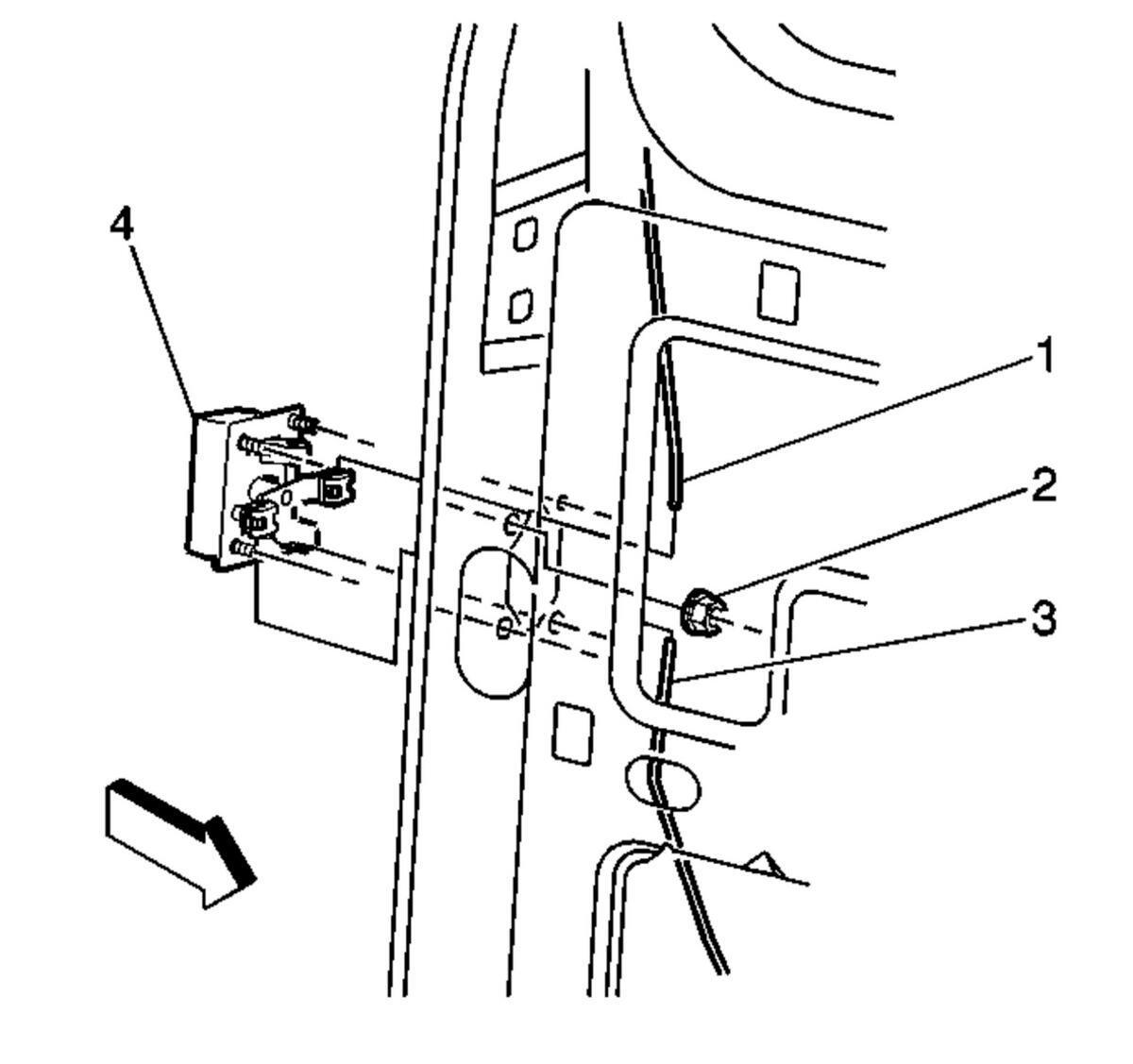

  1. GM334092Courtesy of GENERAL MOTORS COMPANY

    Install the rear door latch control (4) to the vehicle.

    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the two nuts (2) that retain the rear door latch control (4) to the rear door, left side and tighten to 11 N.m (97 lb in).
  3. Install the lock rods (1, 3) to the rear door latch control (4), left side.
  4. Install the rear door trim panel, left side. Refer to Rear Door Trim Panel Replacement - Left Side (E24) .
