Intermediate Side Door Inside Handle Replacement

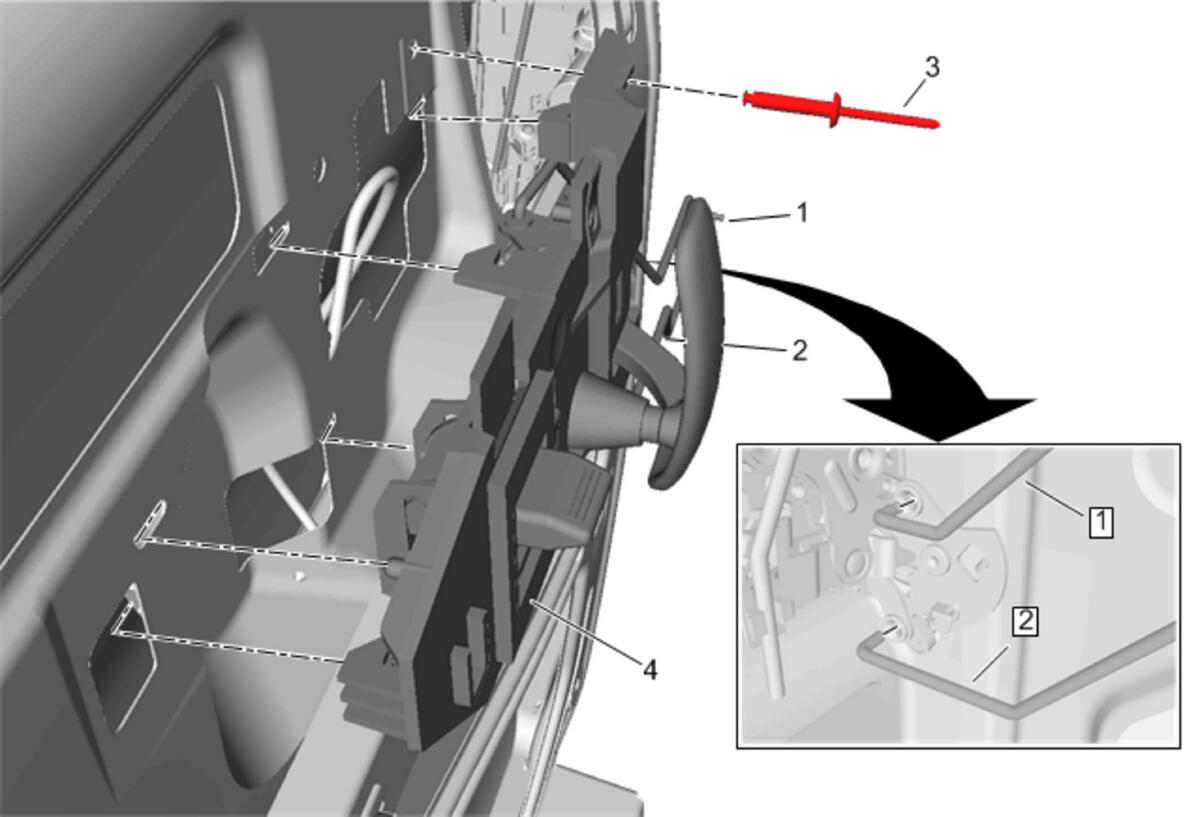

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove rear side 60/40 door trim panel - right side (E24, 60 door). Rear Side 60/40 Door Trim Panel Replacement - Right Side (E24, 40 Door) , or Rear Side 60/40 Door Trim Panel Replacement - Right Side (E24, 60 Door) |
|
| 1 | Intermediate Side Door Inside Handle Rod |
| 2 | Intermediate Side Door Locking Rod |
| 3 | Intermediate Side Door Inside Handle Rivot
CAUTION:
Refer to Eye Protection Warning . Procedure Drill out the rivet. |
| 4 | Intermediate Side Door Inside Handle |
