Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

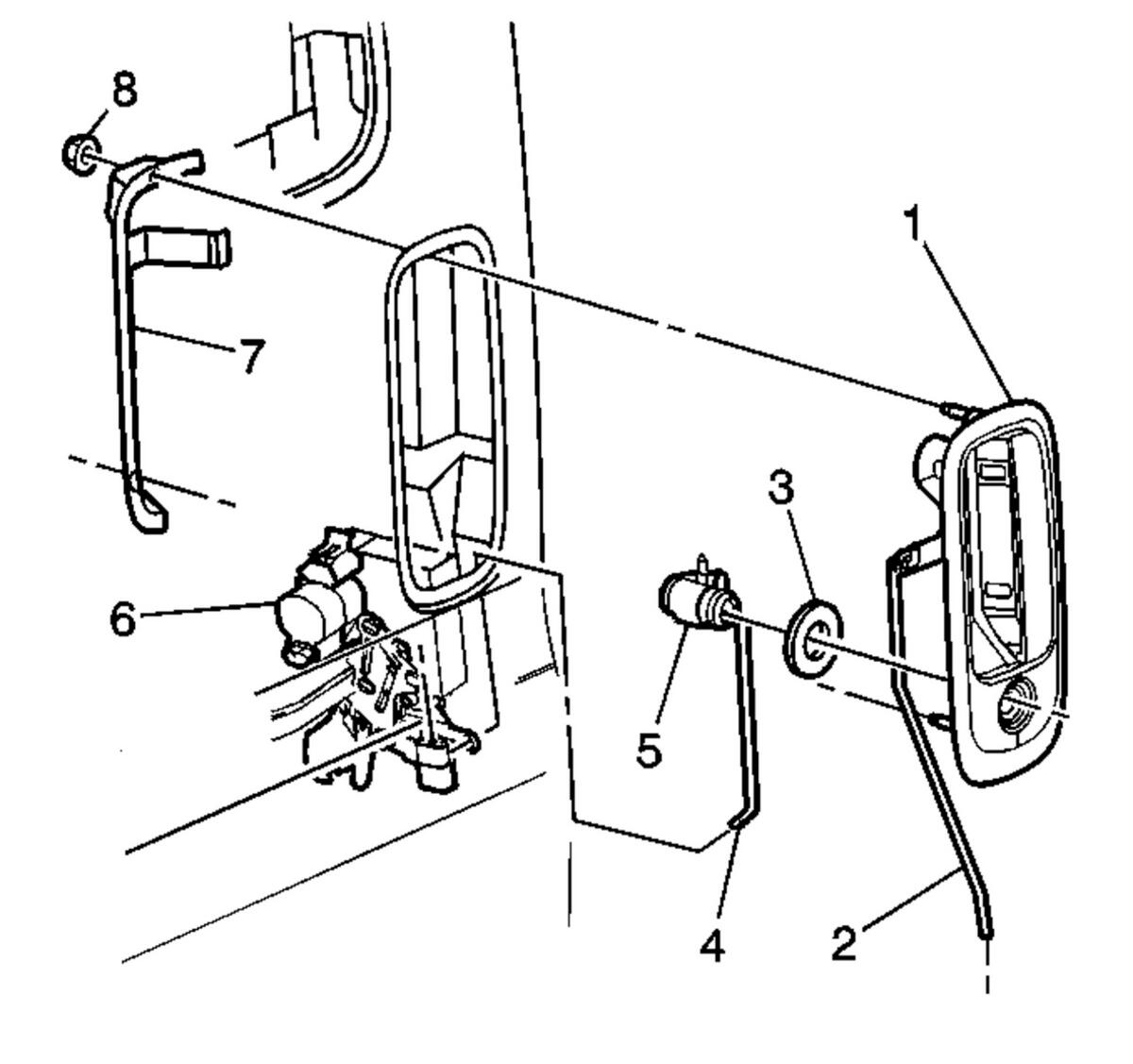

Front Side Door Outside Handle (1) - Install

CAUTION:

Front Side Door Outside Handle Nut (8) - Install and tighten 11 N.m (97 lb in)
Front Side Door Lock Cylinder Rod (4) - Install
Front Side Door Outside Handle Rod (2) - Install
Courtesy of GENERAL MOTORS COMPANY

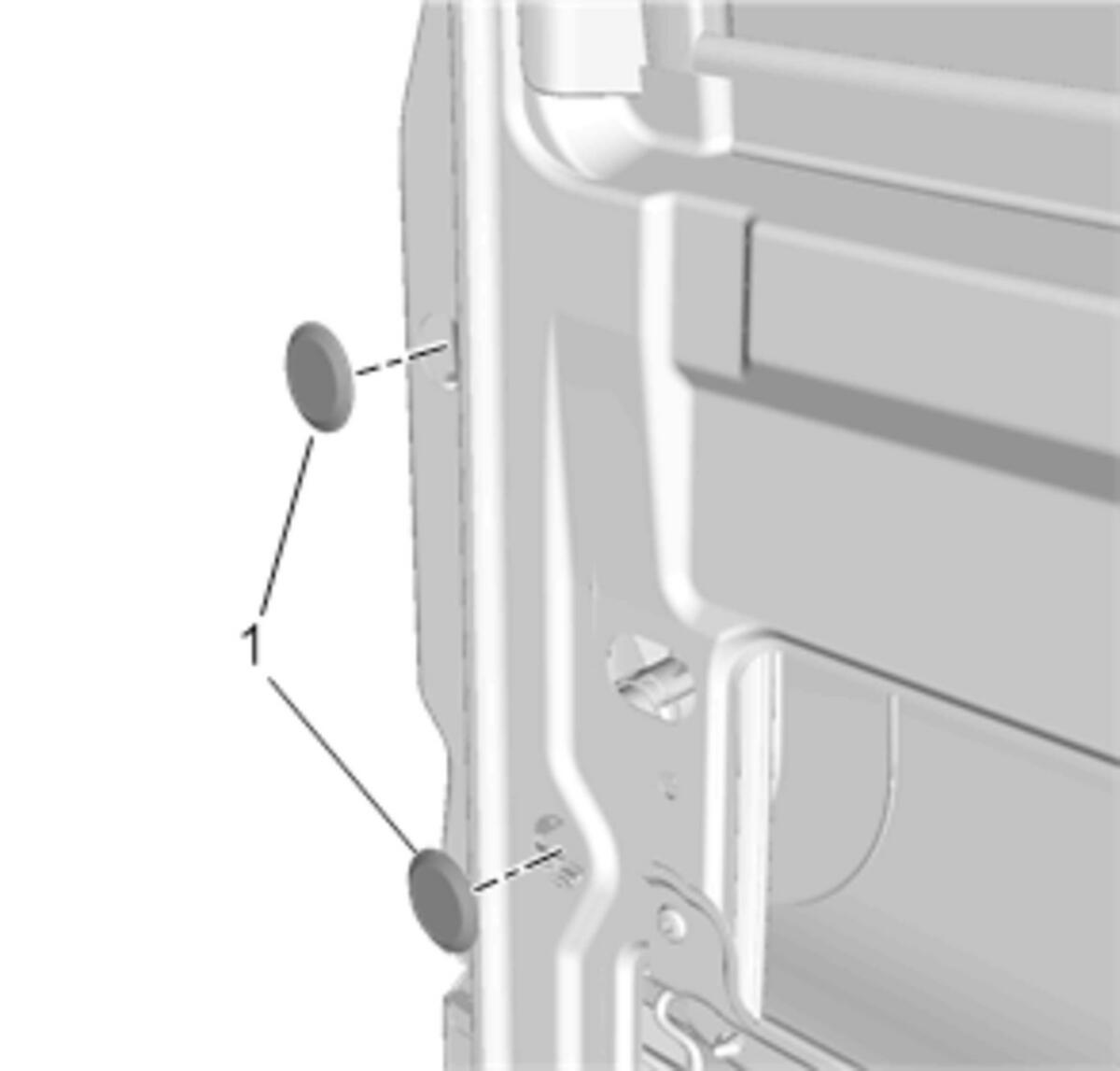

Front Side Door Access Hole Plug (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

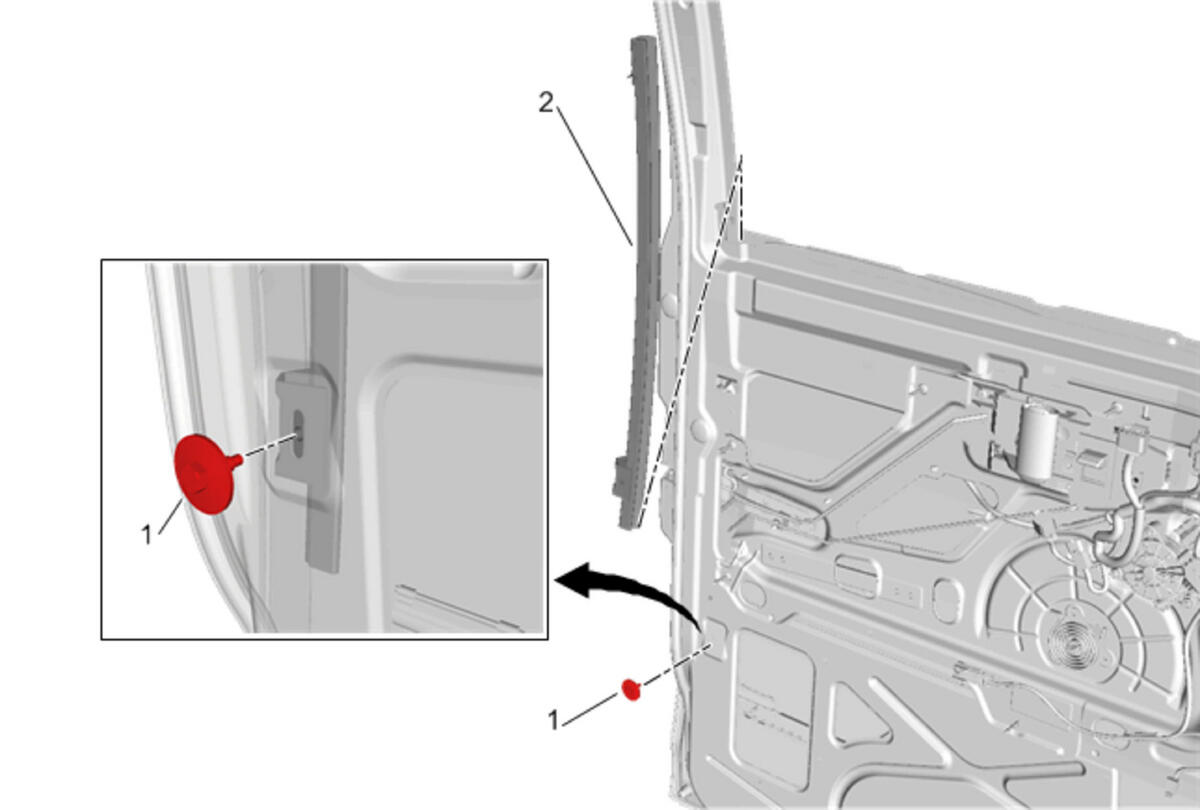

Front Side Door Window Channel - Lower Rear (2) - Install - Front Side Door Window Channel Replacement - Lower Rear
Front Side Door Water Deflector - Install - Front Side Door Water Deflector Replacement
