Mass Airflow Sensor Replacement (Convertible)

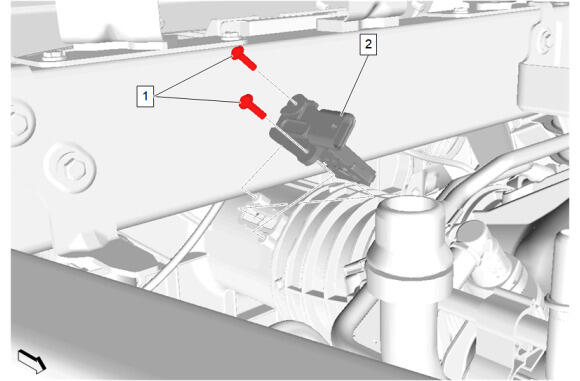

GM5635663Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Radiator Surge Tank Replacement (with V08, V09) , or Radiator Surge Tank Replacement (without V08, V09)
1 Mass Airflow Sensor Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Mass Airflow Sensor
Procedure
Disconnect the electrical connector.
