Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

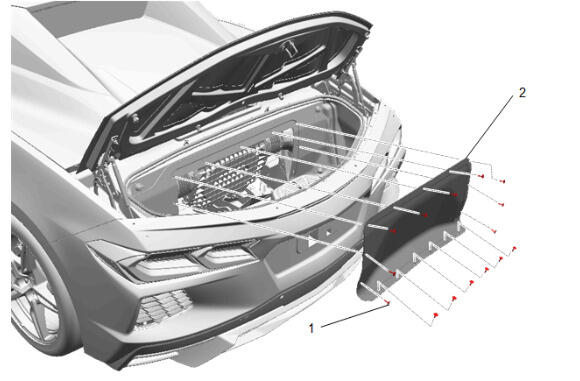

Rear Window Panel (1) - Remove - Rear Window Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

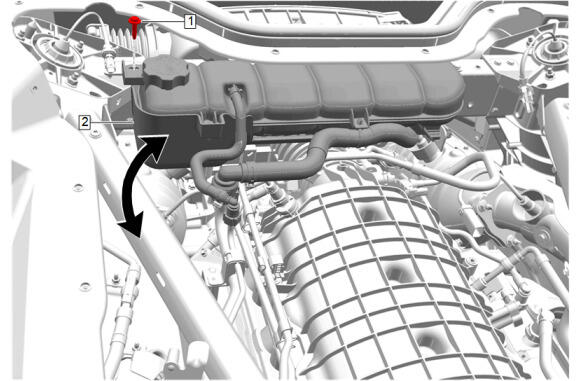

Radiator Surge Tank Bracket Bolt (1) - Remove
Radiator Surge Tank (2) - Reposition
Courtesy of GENERAL MOTORS COMPANY

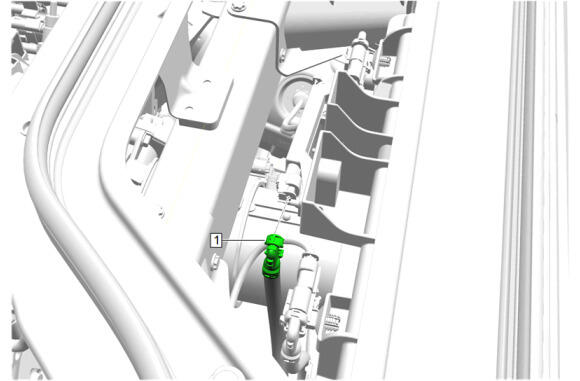

Mass Airflow Sensor Electrical Connector (1) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

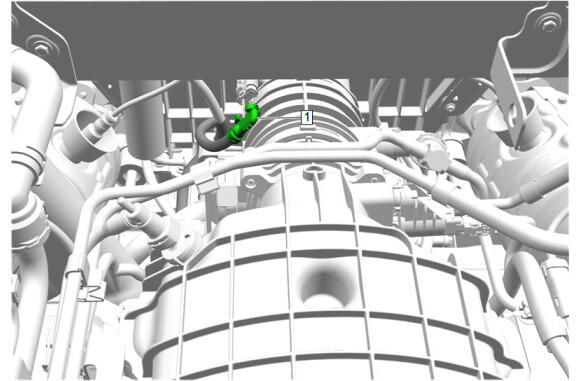

Electrical Connector (1) @ Low Frequency Rear Bumper Antenna - Disconnect
Courtesy of GENERAL MOTORS COMPANY

Wiring Harness Retainer (1) @ Air Cleaner Assembly - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

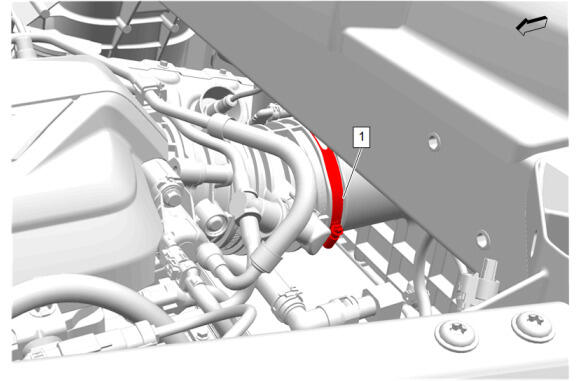

Air Cleaner Outlet Duct Clamp (1) - Loosen
Courtesy of GENERAL MOTORS COMPANY

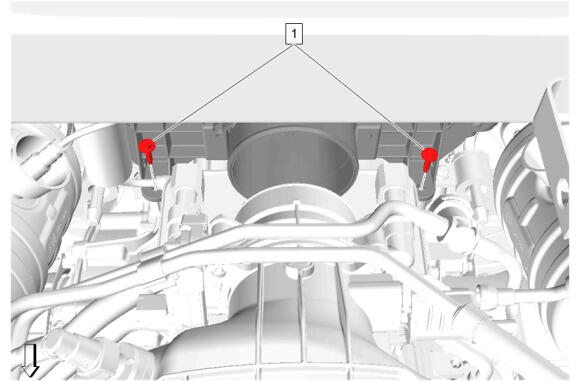

Air Cleaner Bolt (1) - Remove [2x]
Fully close the Folding Stowage Compartment Lid. Folding Top and Folding Top Stowage Compartment Lid Operation
Open the Rear Compartment Lid.
Courtesy of GENERAL MOTORS COMPANY

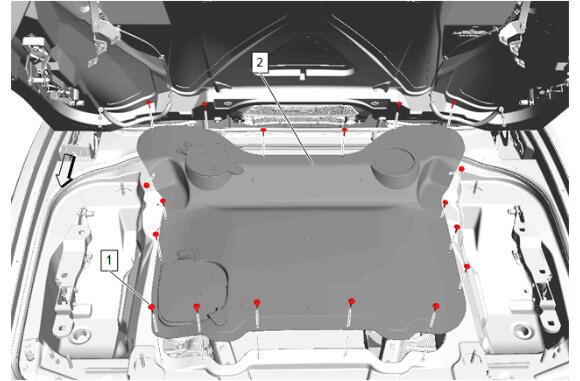

Air Cleaner Access Cover (2) - Remove - Air Cleaner Access Cover Replacement (Convertible)
Courtesy of GENERAL MOTORS COMPANY

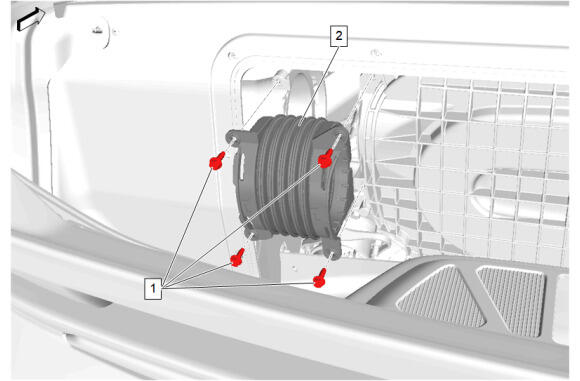

Intake Air Duct - Air Cleaner Left Side (2) - Remove - Intake Air Duct Replacement - Air Cleaner Left Side (Convertible)
Courtesy of GENERAL MOTORS COMPANY

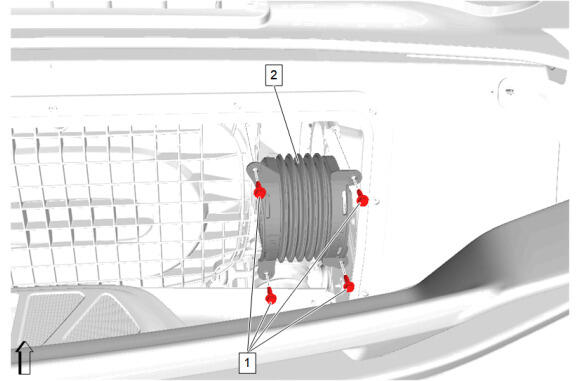

Intake Air Duct - Air Cleaner Right Side (2) - Remove - Intake Air Duct Replacement - Air Cleaner Right Side (Convertible)
Disconnect all electrical connectors and remove all retainers from air cleaner assembly on the rear compartment side.
Courtesy of GENERAL MOTORS COMPANY

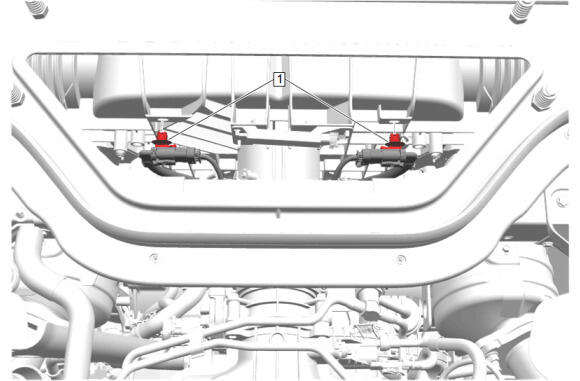

Air Cleaner Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

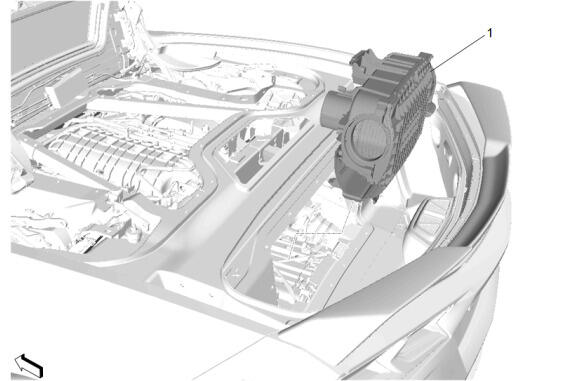

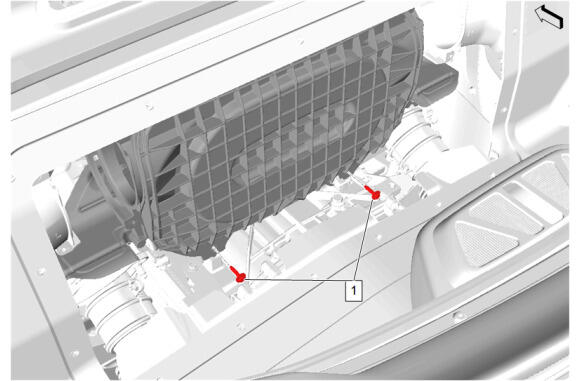

Air Cleaner Assembly (1) - Remove
