Removal Procedure

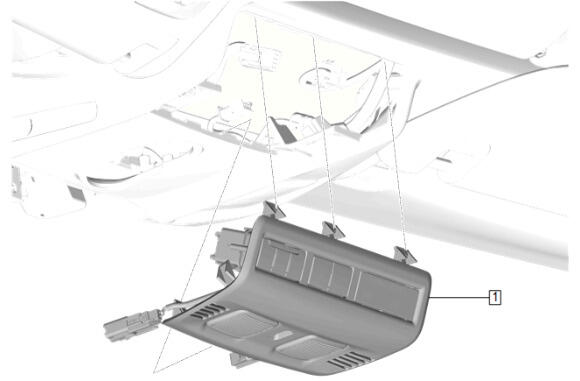

  1. GM5377593Courtesy of GENERAL MOTORS COMPANY

    Roof Console (1) - Remove - Roof Console Replacement

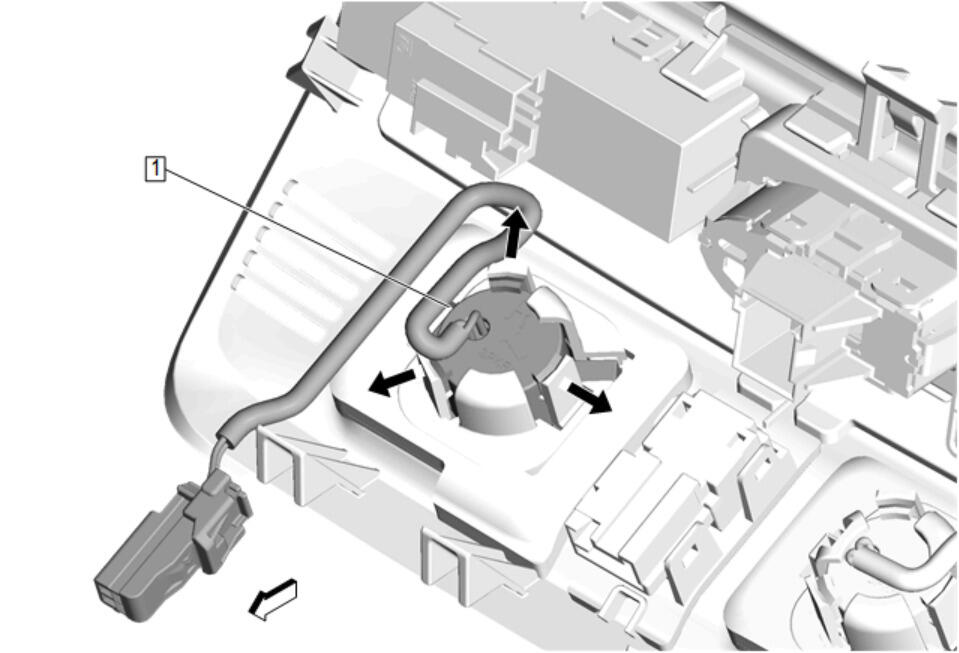

  2. GM5383398Courtesy of GENERAL MOTORS COMPANY

    Release the tabs securing the communication interface module microphone (1) to the roof console.

  3. GM5383403Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module Microphone (1) - Remove

  4. Transfer components as necessary.
