Wheelwell Components
Wheelwell Components

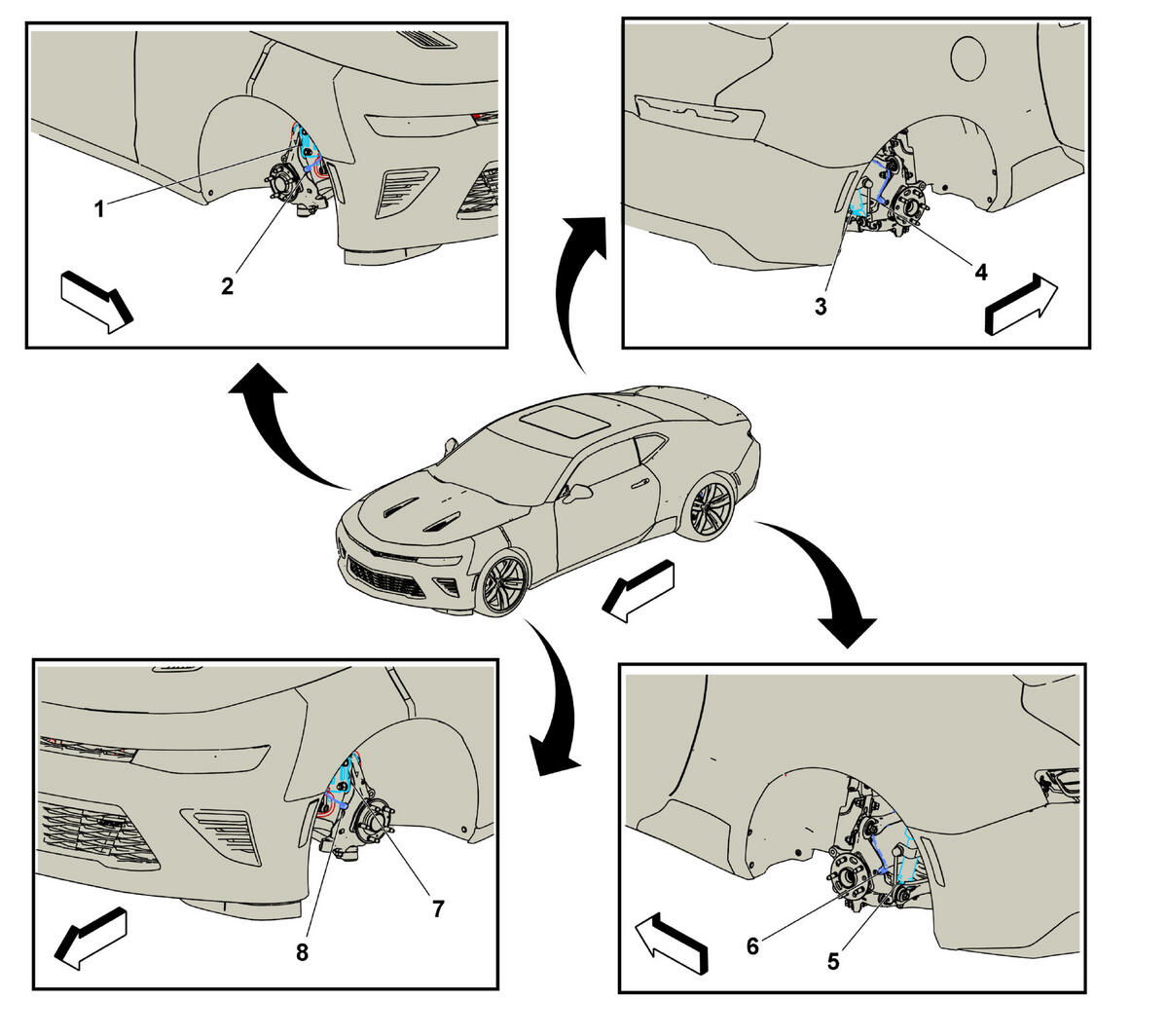

| Component Name | Callout |
|---|---|
| Q37RF Shock Absorber Actuator - Right Front (F55) Q37RF Shock Absorber Actuator - Right Front | 1 |
| B5RF Wheel Speed Sensor - Right Front B5RF Wheel Speed Sensor - Right Front | 2 |
| Q37RR Shock Absorber Actuator - Right Rear (F55) Q37RR Shock Absorber Actuator - Right Rear | 3 |
| B5RR Wheel Speed Sensor - Right Rear B5RR Wheel Speed Sensor - Right Rear | 4 |
| Q37LR Shock Absorber Actuator - Left Rear (F55) Q37LR Shock Absorber Actuator - Left Rear | 5 |
| B5LR Wheel Speed Sensor - Left Rear B5LR Wheel Speed Sensor - Left Rear | 6 |
| Q37LF Shock Absorber Actuator - Left Front (F55) Q37LF Shock Absorber Actuator - Left Front | 7 |
| B5LF Wheel Speed Sensor - Left Front B5LF Wheel Speed Sensor - Left Front | 8 |
