Plenum Water Deflector Replacement

Courtesy of GENERAL MOTORS COMPANY

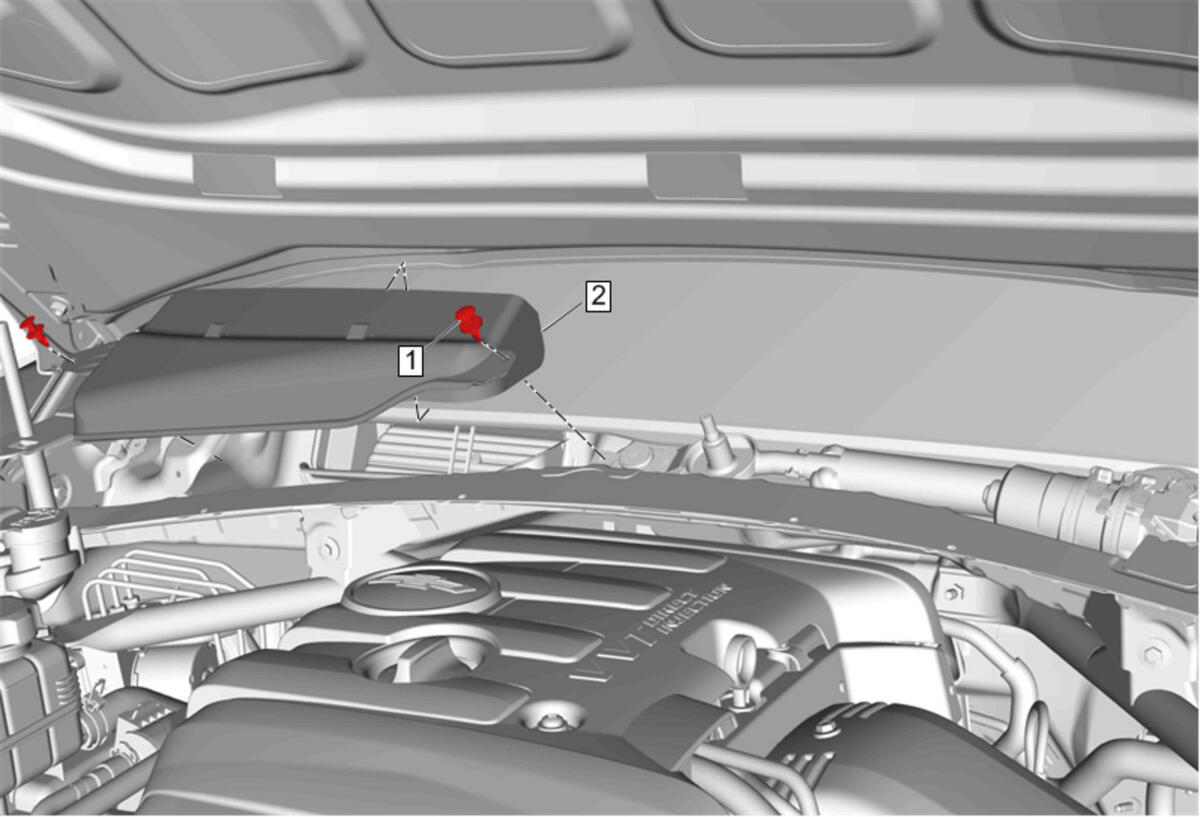

Callout	Component Name
Preliminary Procedure Air Inlet Grille Panel Replacement
1	Plenum Water Deflector Retainer [2x]
2	Plenum Water Deflector Procedure Using an appropriate tool, release the retainers from the plenum. Lift up the front edge of the water deflector, slide the water deflector forward from the plenum.

Callout

Component Name

Plenum Water Deflector Retainer [2x]

Plenum Water Deflector

Procedure

Using an appropriate tool, release the retainers from the plenum.
Lift up the front edge of the water deflector, slide the water deflector forward from the plenum.
