Brake Pedal Position Sensor Replacement
WARNING: This page is about a different car, the 2020 Chevrolet Bolt EV. However, it is still accessible from the selected car via links, so may be relevant.

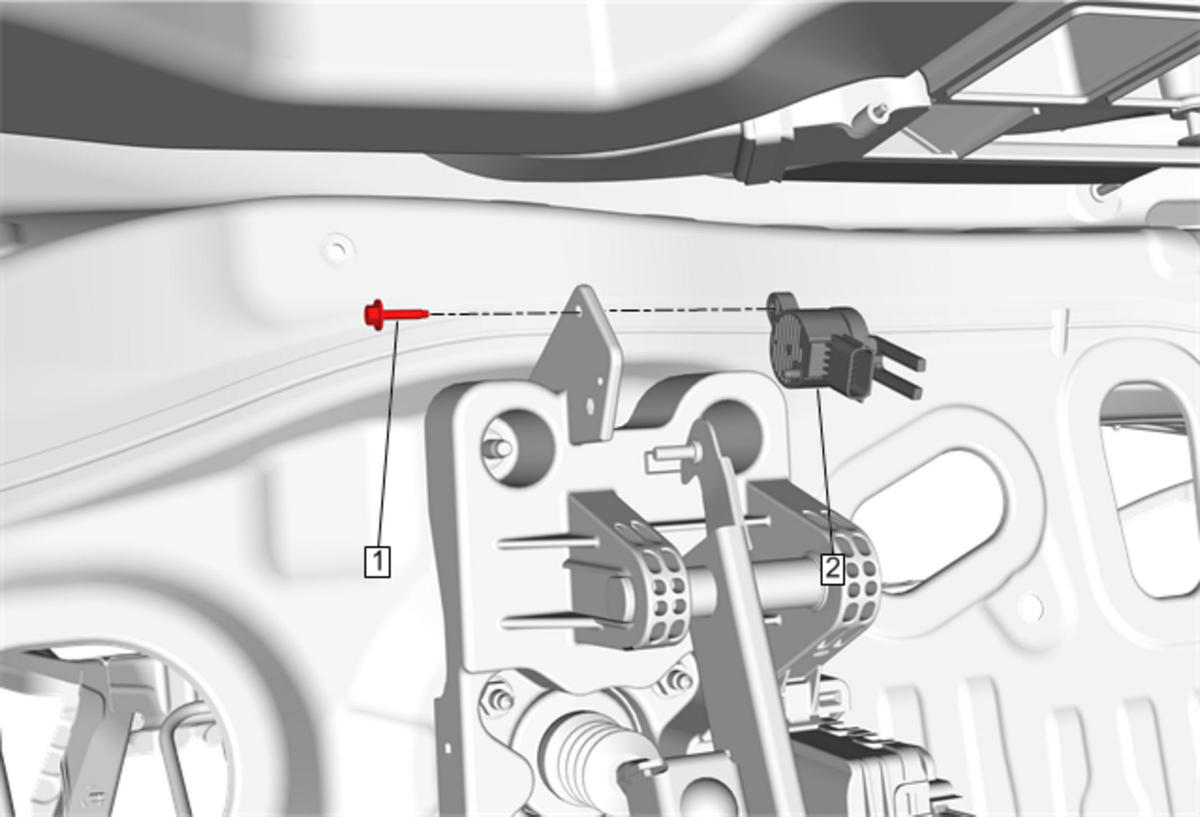

| Callout | Component Name |
|---|---|
| Preliminary Procedure Steering Column Replacement |
|
| 1 | Brake Pedal Position Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 3 | Brake Pedal Position Sensor Procedure
|
