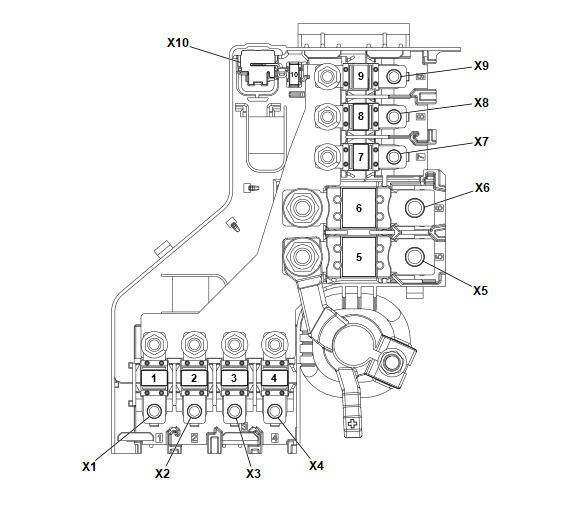

X50D Fuse Block - Battery Top View

Courtesy of GENERAL MOTORS COMPANY

Usage Table

No.	Device Label Name	Device Assigned Name	Rating	Description
Fuses
1	-	F1BA	150A	X53A Fuse Block - Rear Body
2	-	F2BA	70A (-V92) 100A (V92)	G10 Cooling Fan Motor
3	-	F3BA	100A	X51A Fuse Block - Instrument Panel
4	-	F4BA	100A	X51A Fuse Block - Instrument Panel
5	-	F5BA	250A	X50A Fuse Block - Underhood
6	-	F6BA	350A	M64 Starter Motor G13 Generator (LSY)
7	-	F7BA	200A (LCV/LGX) 80A (LSY)	G13 Generator (LCV/LGX) G59 Engine Coolant Pump (LSY)
8	-	F8BA	100A	K43 Power Steering Control Module
9	-	F9BA	-	Not Used
10	-	F10BA	5A	B110 Battery Sensor Module K9 Body Control Module
