Parking Assist Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

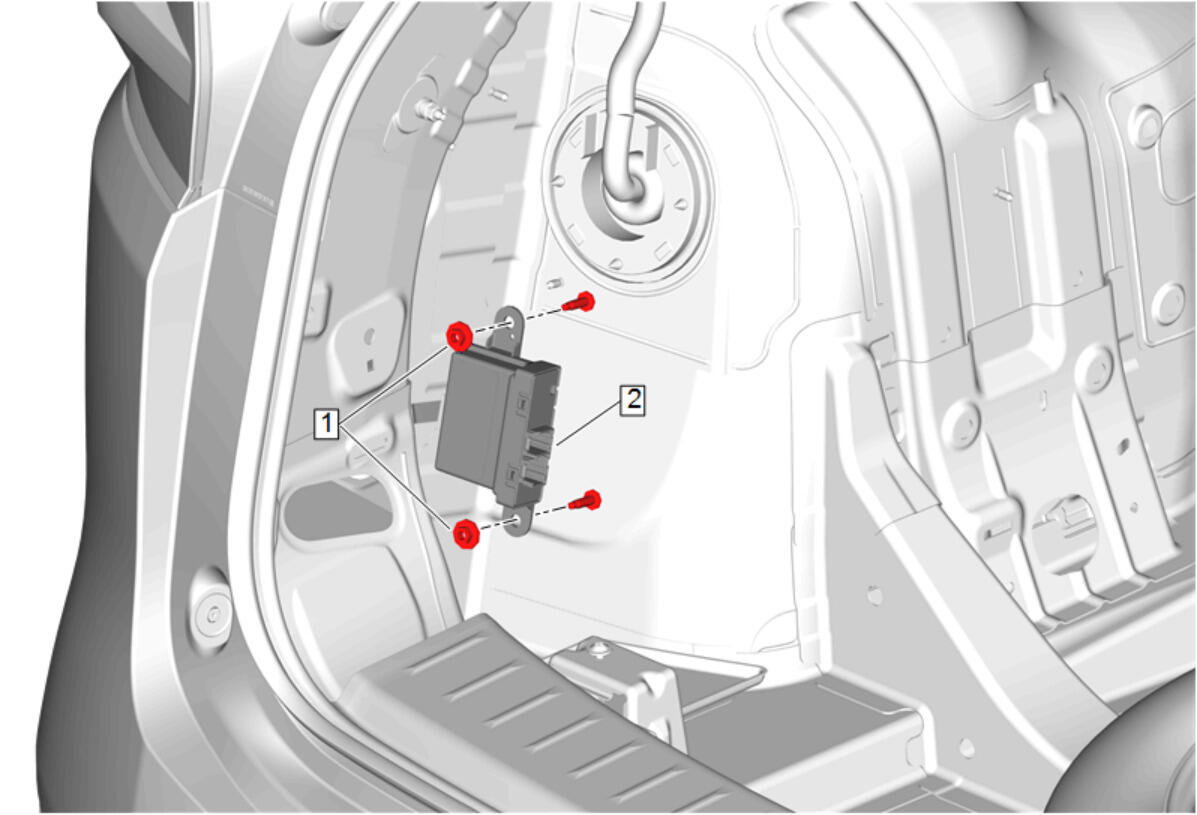

Callout	Component Name
Preliminary Procedure Quarter Lower Rear Trim Panel Replacement - Left Side
1	Parking Assist Alarm Control Module Nut [2x] CAUTION: Fastener Caution Procedure Reposition the wiring harness. Tighten 4.5 N.m (40 lb in)
2	Parking Assist Control Module Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Parking Assist Alarm Control Module Nut [2x]

CAUTION:

Procedure
Reposition the wiring harness.
Tighten
4.5 N.m (40 lb in)

Parking Assist Control Module

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
