Rear Side Door Locking Rod Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .

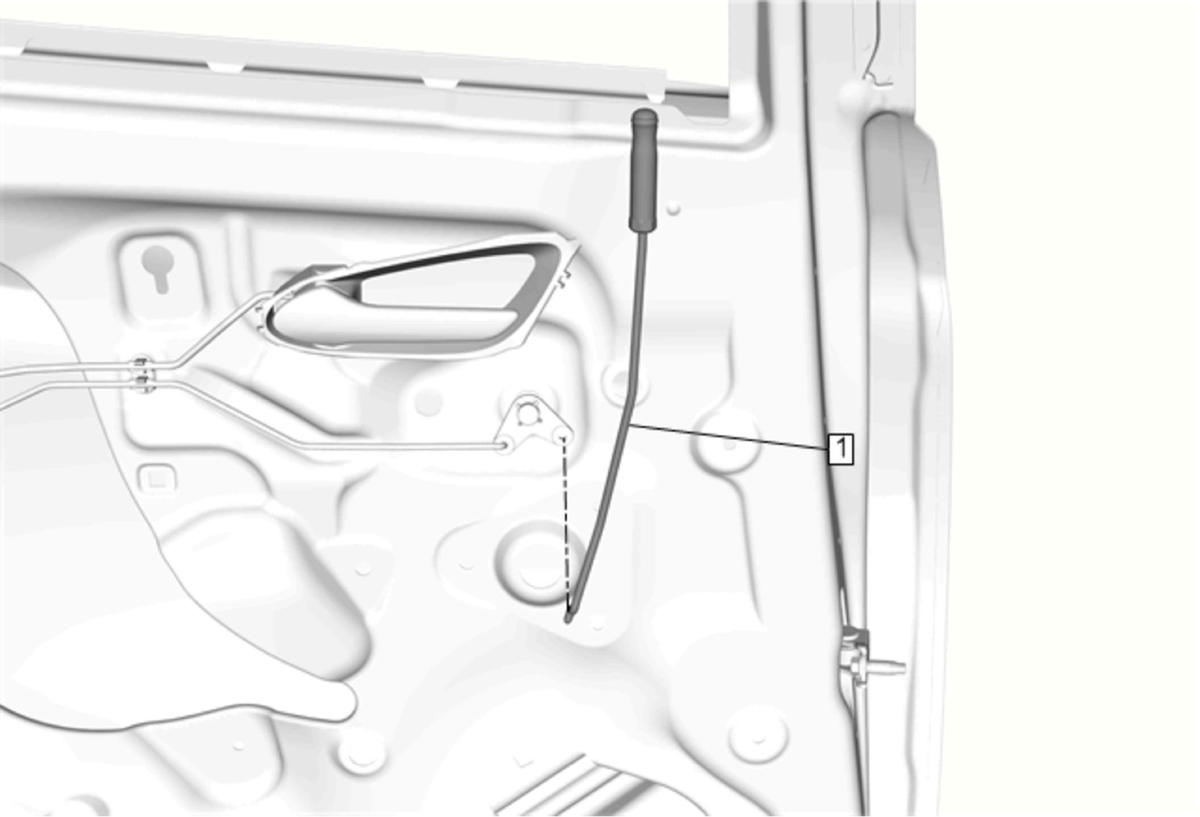

1	Rear Side Door Lock Rod Procedure Remove the water deflector. Transfer components as necessary. NOTE: Inspect the door lock system for proper operation before installing the door trim.

Callout

Component Name

Preliminary Procedure
Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .

Rear Side Door Lock Rod

Procedure

NOTE:

Inspect the door lock system for proper operation before installing the door trim.
