Installation Procedure
WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

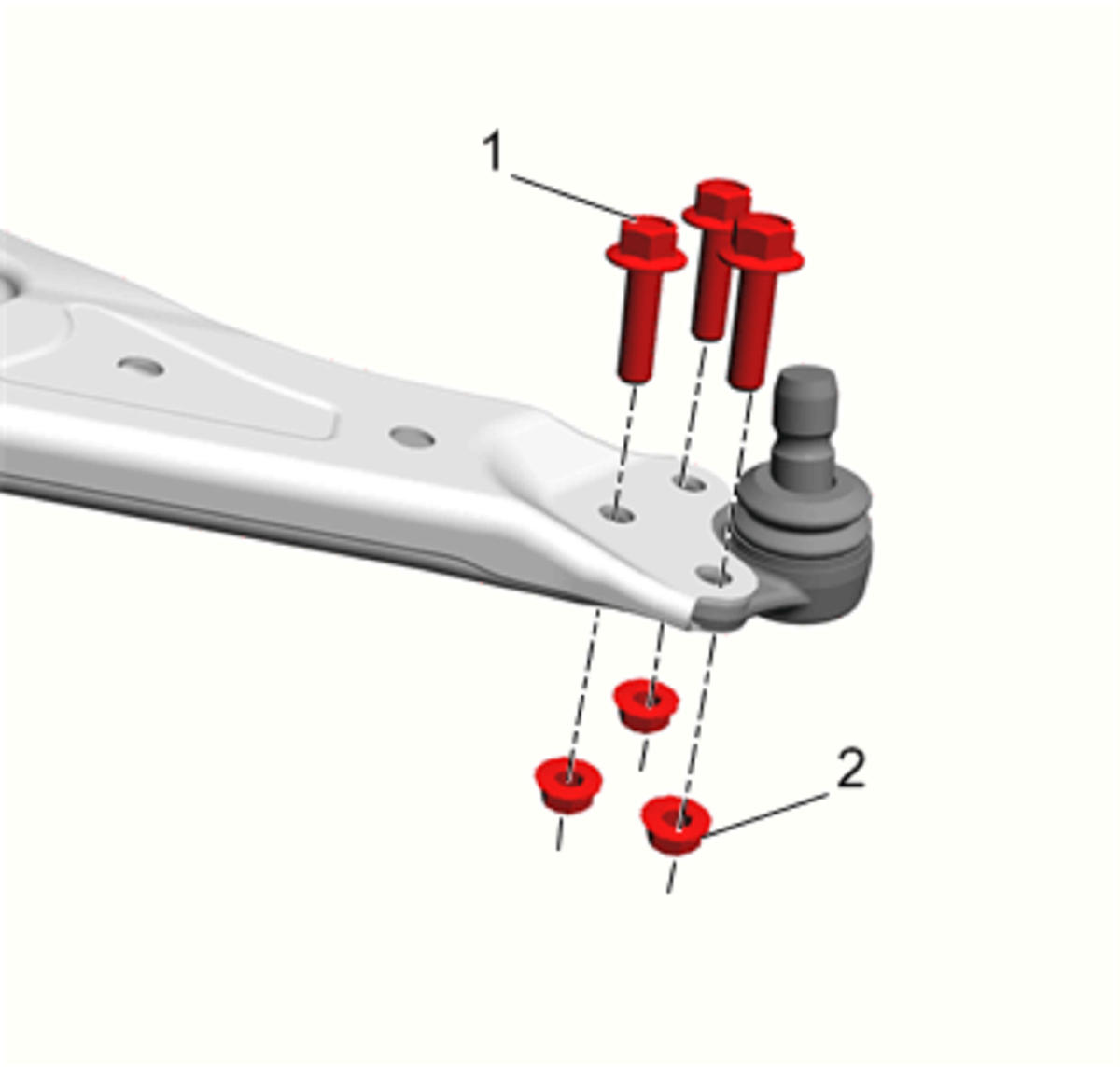

Front Lower Control Arm Ball Stud (1) @Front Lower Control Arm (2) - Install
Front Lower Control Arm Ball Stud Bolt (1) - Install
- Front Lower Control Arm Ball Stud Nut (2) - Install and tighten [3x] 35 N.m (26 lb ft)
- Lower Control Arm - Install - Lower Control Arm Replacement
CAUTION:
Refer to Fastener Caution .
