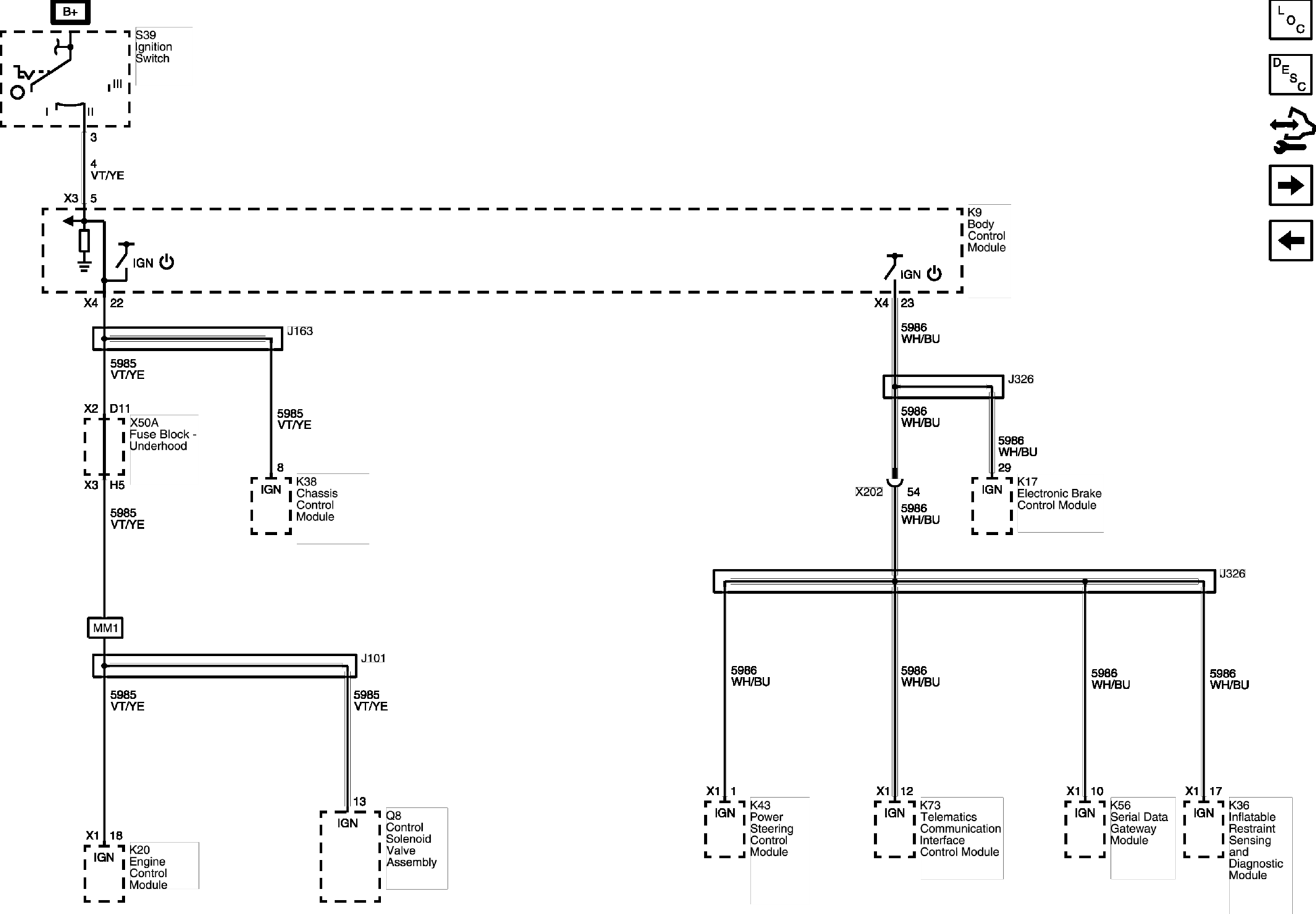

Communication Enable and Local Interconnect Network (AVJ+BTM)

GM5238115

Courtesy of GENERAL MOTORS COMPANY
