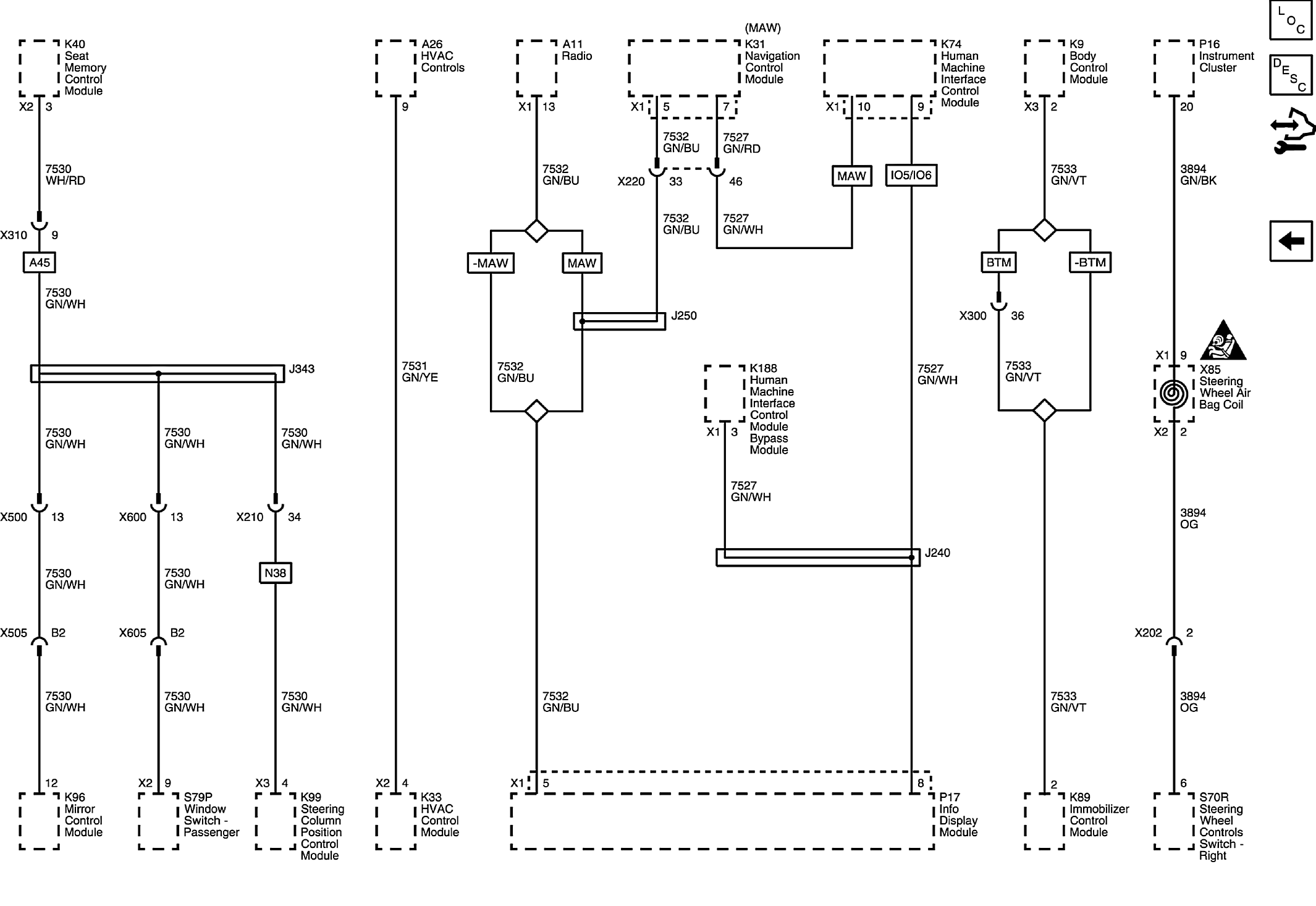

Local Interconnect Network (LIN) Bus 5, 8, 9, 10, 11, 12

GM5374049

Courtesy of GENERAL MOTORS COMPANY
