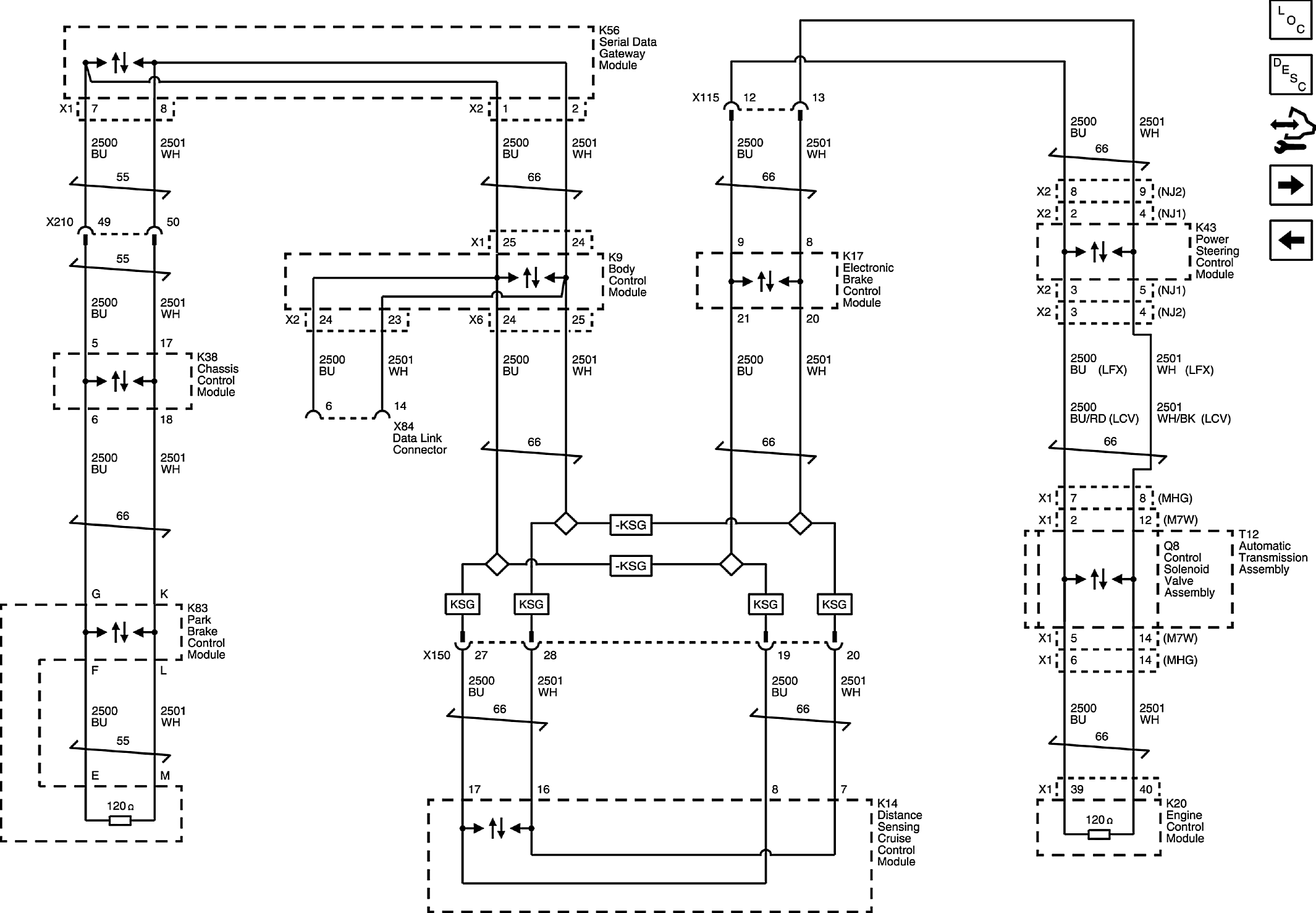

Home >> Chevrolet >> 2020 >> Impala Premier >> Repair and Diagnosis >> Engine Performance >> System >> Data Communications >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> High Speed GMLAN
