Rear Seat Heater Control Module Replacement

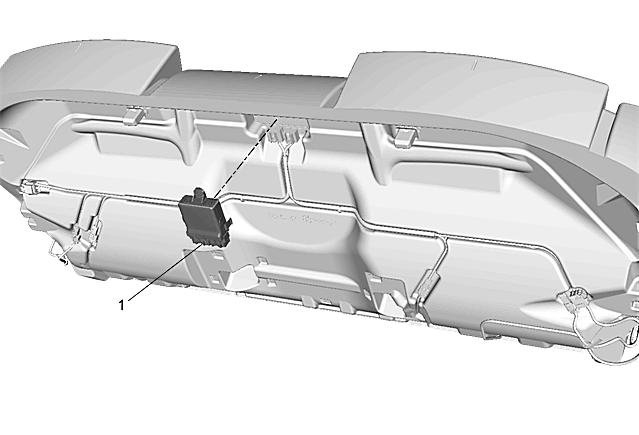

GM4072886
Callout Component Name
Preliminary Procedure
Rear Seat Cushion Removal and Installation .
1 Rear Seat Heater Control Module
Procedure
Disconnect the electrical connectors.
