Installation Procedure

  1. Battery Negative Cable (3) - Install
  2. Retainer (1) - Engage [3x]
    3. CAUTION:

    Refer to Fastener Caution

  3. Battery Negative Cable Ground Bolt (2) - Install and Tighten 22 N.m (16 lb ft)

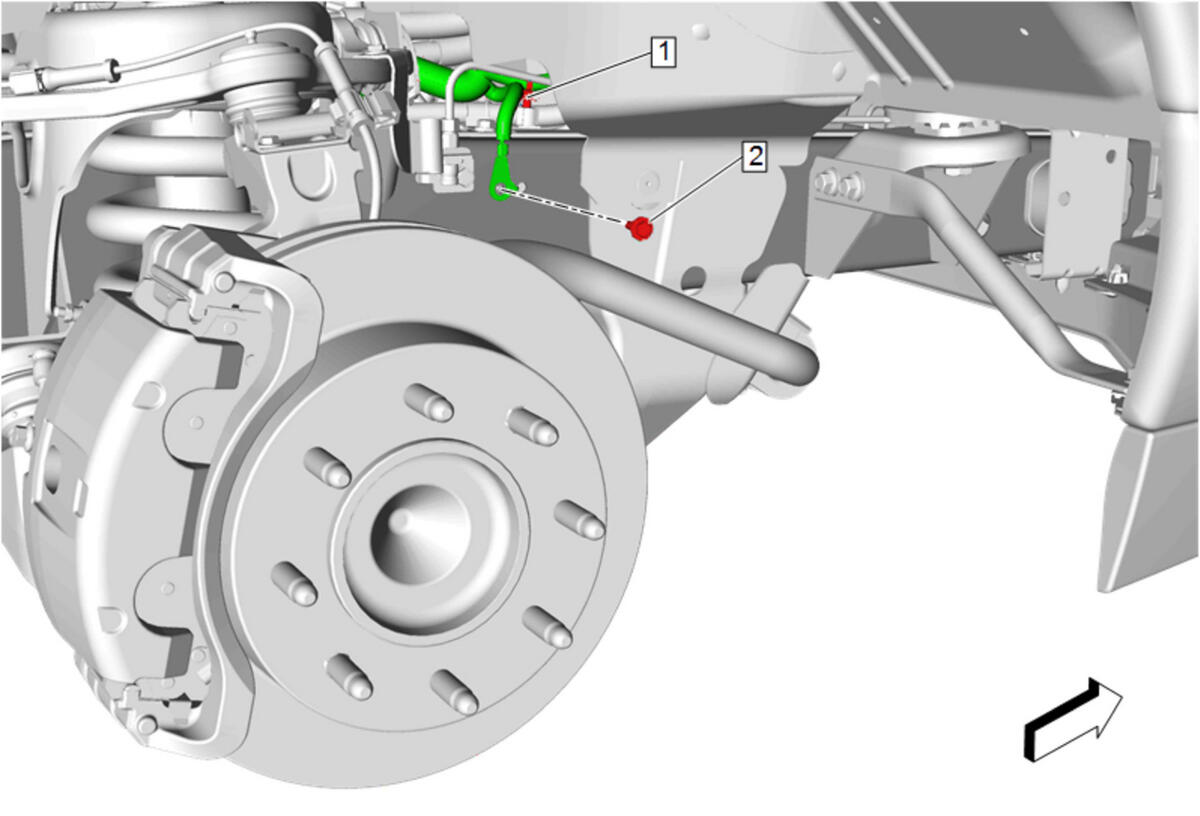

  4. GM5128775Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Engage

  5. Battery Negative Cable Ground Bolt (2) - Install and Tighten 10 N.m (89 lb in)
  6. Install the right front tire and wheel assembly. Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
  7. Lower the vehicle.

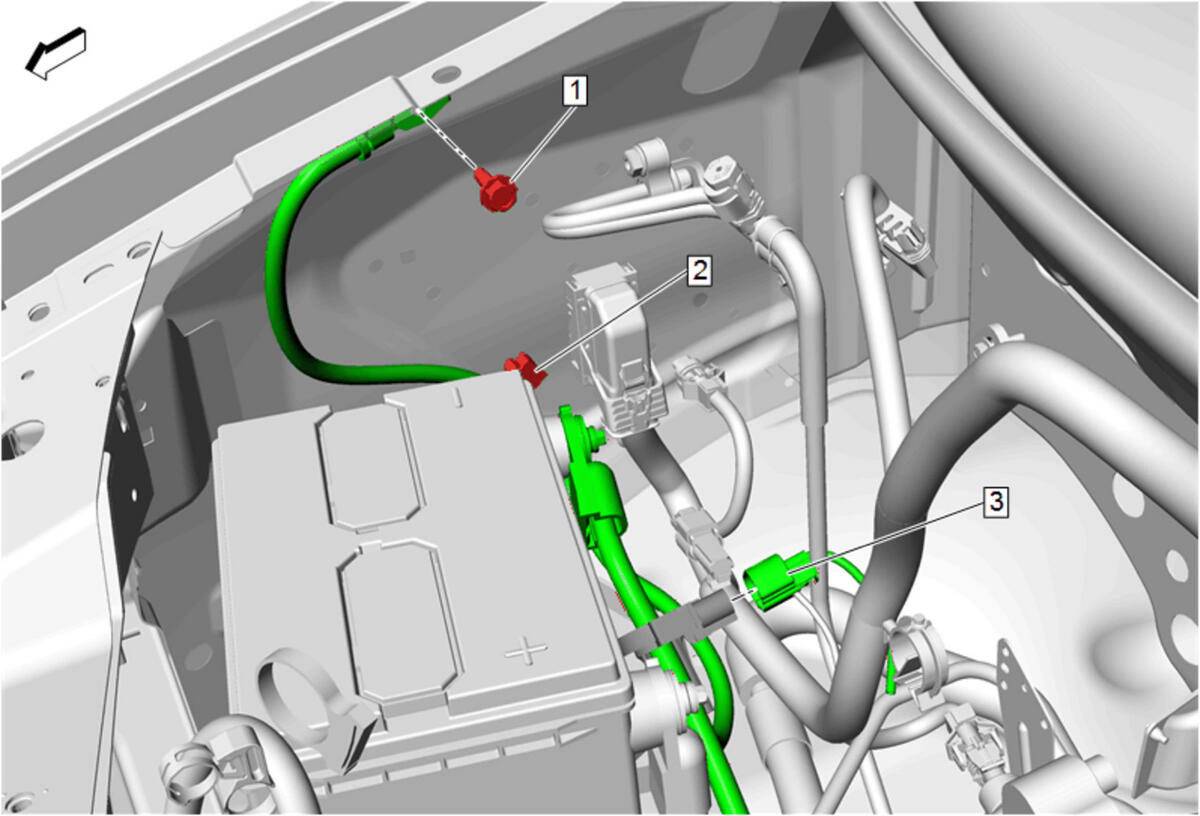

  8. GM5128767Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable Ground Bolt (1) - Install and Tighten 10 N.m (89 lb in)

  9. Retainer (2) - Engage
  10. Electrical Connector (3) - Connect
  11. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (Single Battery) , or Battery Negative Cable Disconnection and Connection (Dual Battery)
