Steering Column Lower Trim Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

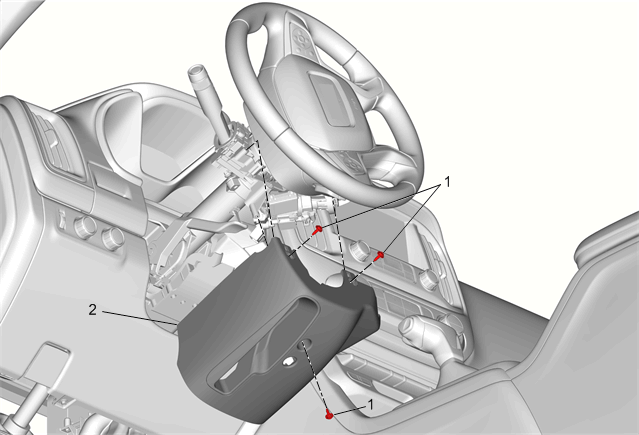

Callout	Component Name
Preliminary Procedure Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
1	Steering Column Lower Trim Cover Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Steering Column Lower Trim Cover Procedures Extended the steering column to its furthest point to clear the instrument panel knee bolster. Turn the steering wheel left and right to access the fasteners securing the lower trim cover to the turn signal switch bracket.

Callout

Component Name

Preliminary Procedure
Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .

Steering Column Lower Trim Cover Bolt (Qty: 3)

CAUTION:

Tighten
1.5 N.m (13 lb in)

Steering Column Lower Trim Cover

Procedures

Extended the steering column to its furthest point to clear the instrument panel knee bolster.
Turn the steering wheel left and right to access the fasteners securing the lower trim cover to the turn signal switch bracket.
