Fuel Tank Fuel Pump Module Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

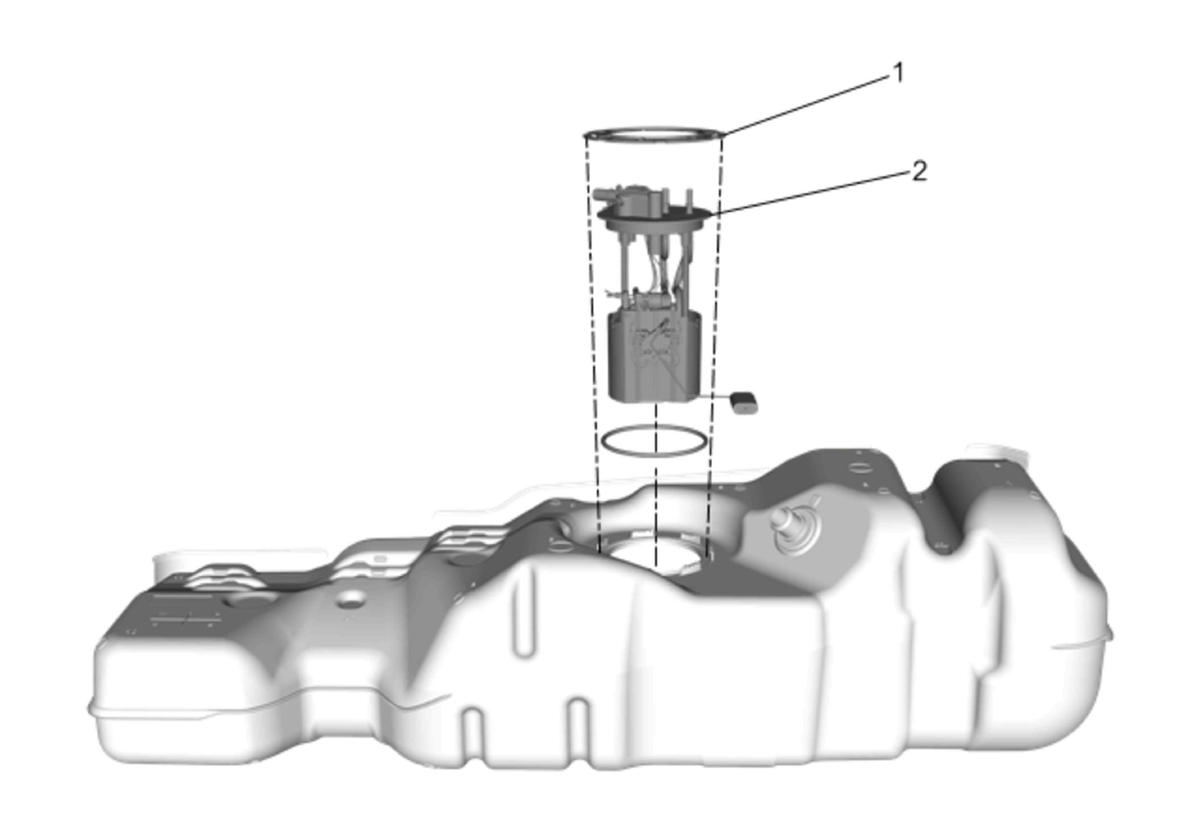

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedures Fuel Tank Replacement Disconnect the fuel feed, return, and vent pipes. Plastic Collar Quick Connect Fitting Service . Disconnect the electrical connector. Replace the fuel filter. Fuel Filter Replacement
1	Fuel Sender Retainer CAUTION: Refer to Fastener Caution . Special Tools J-45722 Fuel Sender Lock Ring Wrench Equivalent regional tools: Special Tools (Diagnostic Tools)
2	Fuel Tank Fuel Pump Module Procedure Replace the O-ring seal.

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedures

Fuel Tank Replacement
Disconnect the fuel feed, return, and vent pipes. Plastic Collar Quick Connect Fitting Service .
Disconnect the electrical connector.
Replace the fuel filter. Fuel Filter Replacement

Fuel Sender Retainer

CAUTION:

Special Tools
J-45722 Fuel Sender Lock Ring Wrench
Equivalent regional tools: Special Tools (Diagnostic Tools)

Fuel Tank Fuel Pump Module
Procedure
Replace the O-ring seal.
