Engine Control Module Bracket Replacement
WARNING: This page is about a different variant/trim than selected.

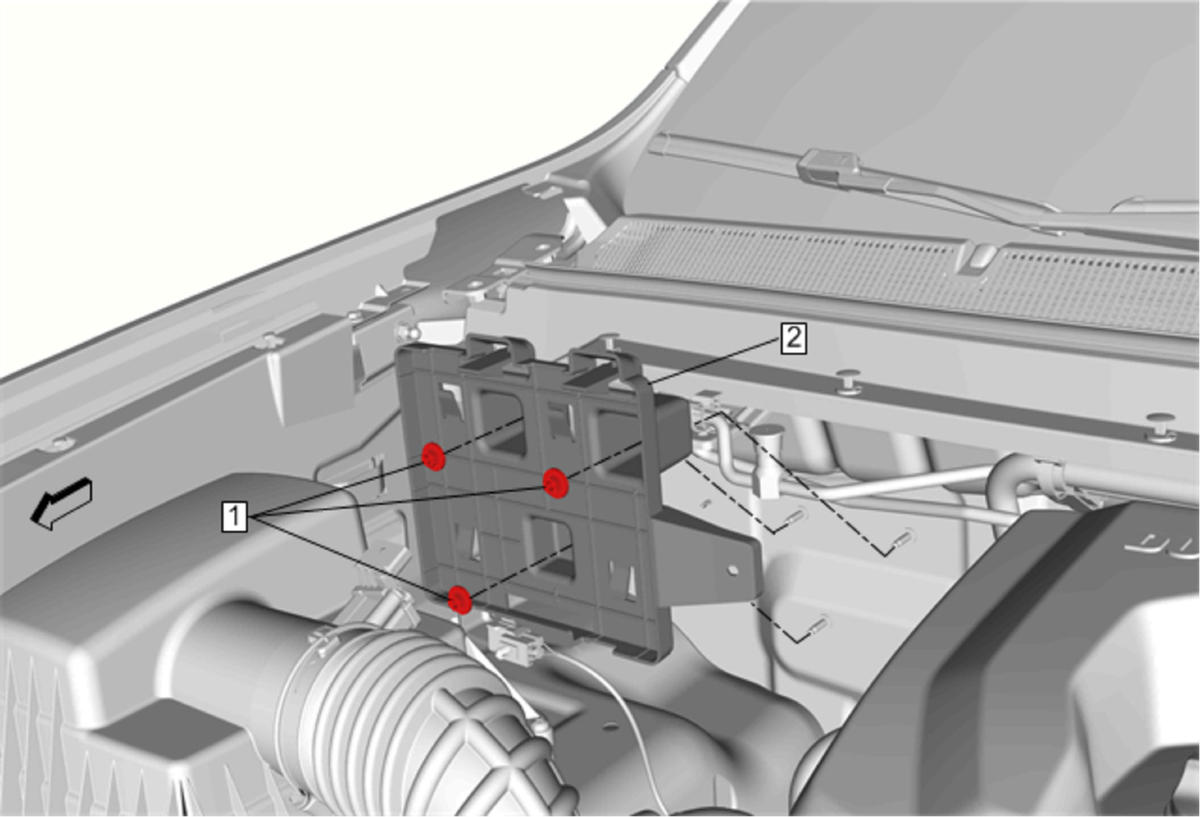

| Callout | Component Name |
|---|---|
| Preliminary Procedure Engine Control Module Replacement |
|
| 1 | Engine Control Module Bracket Nut [3x]
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Engine Control Module Bracket Procedure Remove the wiring harness from the engine control module bracket. |
