Front Seat Lumbar Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the driver or passenger seat cushion outer finish panel cover. Refer to Driver or Passenger Seat Cushion Outer Finish Panel Cover Replacement .

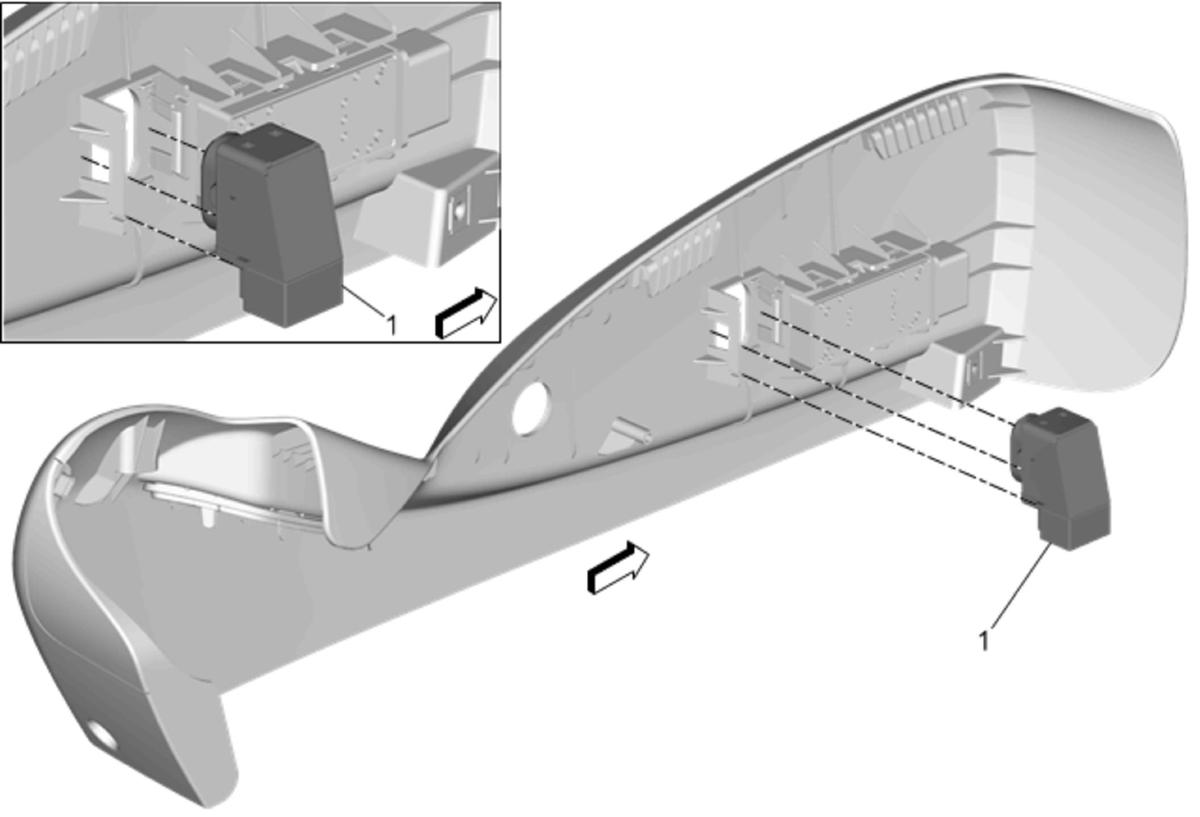

1	Driver or Passenger Seat Lumbar Control Switch Procedure  Using a suitable flat-bladed tool, gently pry the lumbar control switch from the outer finish panel.
