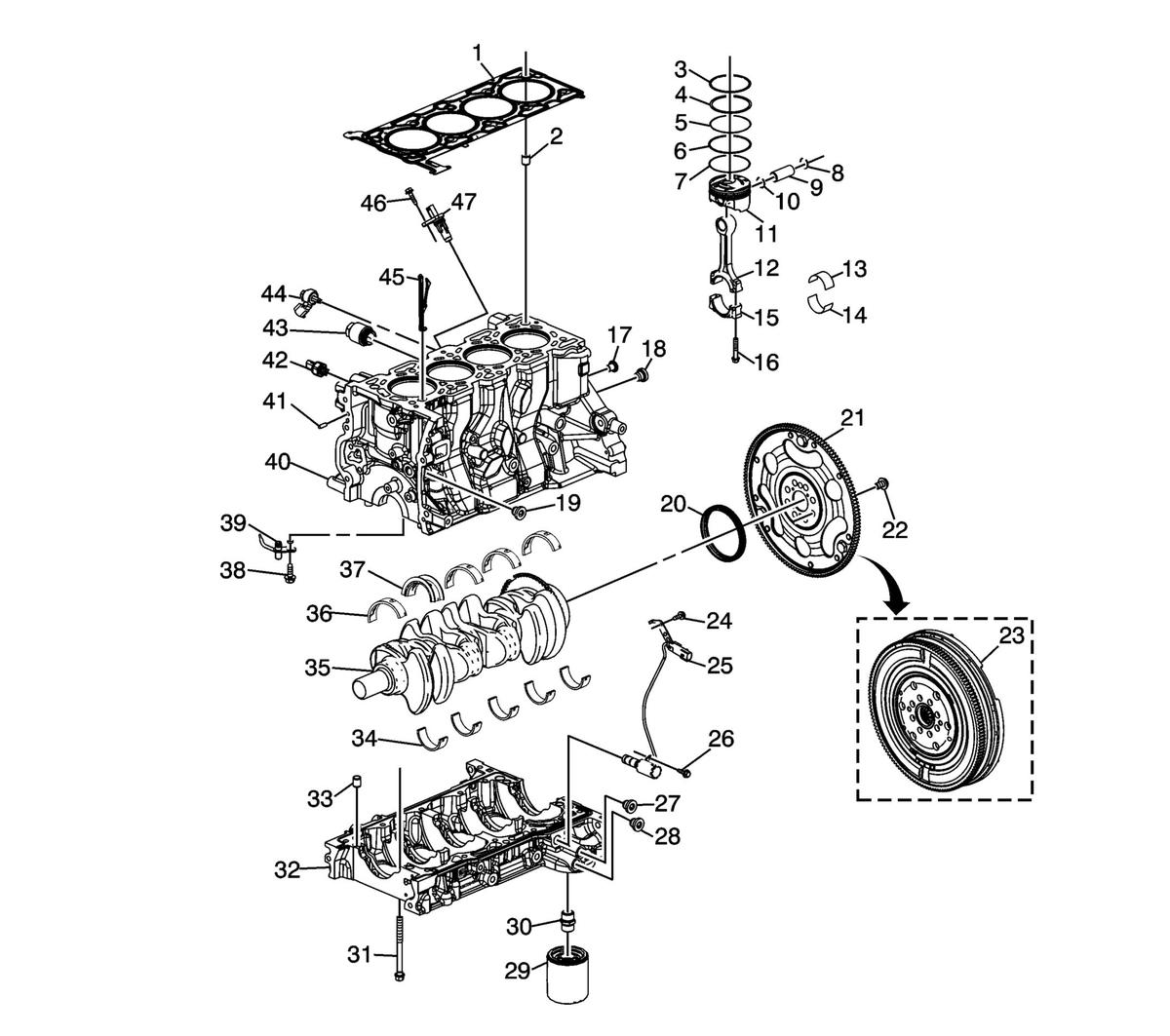

| 1 |
Cylinder Head Gasket |
| 2 |
Cylinder Head Locating Pin |
| 3 |
Piston Upper Compression Ring |
| 4 |
Piston Lower Compression Ring |
| 5 |
Piston Oil Ring Rail |
| 6 |
Piston Oil Ring Rail Spacer |
| 7 |
Piston Oil Ring Rail |
| 8 |
Piston Pin Retainer |
| 9 |
Piston Pin |
| 10 |
Piston Pin Retainer |
| 11 |
Piston |
| 12 |
Connecting Rod |
| 13 |
Connecting Rod Bearing |
| 14 |
Connecting Rod Bearing |
| 15 |
Connecting Rod Cap |
| 16 |
Connecting Rod Bolt |
| 17 |
Engine Block Oil Gallery Plug |
| 18 |
Engine Block Oil Gallery Plug |
| 19 |
Engine Block Oil Gallery Plug |
| 20 |
Crankshaft Rear Oil Seal |
| 21 |
Automatic Transmission Flex Plate |
| 22 |
Automatic Transmission Flex Plate Bolt |
| 23 |
Flywheel |
| 24 |
Oil Pump Flow Control Valve Assembly Bolt |
| 25 |
Oil Pump Flow Control Valve Assembly |
| 26 |
Oil Pump Flow Control Valve Assembly Bolt |
| 27 |
Engine Block Oil Gallery Plug |
| 28 |
Engine Block Oil Gallery Plug |
| 29 |
Oil Filter |
| 30 |
Oil Filter Fitting |
| 31 |
Lower Crankcase Bolt |
| 32 |
Lower Crankcase |
| 33 |
Lower Crankcase Locating Pin |
| 34 |
Crankshaft Lower Bearing |
| 35 |
Crankshaft |
| 36 |
Crankshaft Upper Bearing |
| 37 |
Crankshaft Upper Thrust Bearing |
| 38 |
Piston Oil Nozzle Bolt |
| 39 |
Piston Oil Nozzle |
| 40 |
Engine Block |
| 41 |
Engine Front Cover Locating Pin |
| 42 |
Engine Oil Pressure Sensor |
| 43 |
Engine Coolant Heater |
| 44 |
Knock Sensor |
| 45 |
Engine Block Coolant Baffle |
| 46 |
Crankshaft Position Sensor Bolt |
| 47 |
Crankshaft Position Sensor |
