Home >> Chevrolet >> 2020 >> Camaro LS, Automatic Trans >> Repair and Diagnosis >> Electrical >> Charging Systems >> Battery, Starting System And Charging System >> Repair Instructions >> Battery Vent Hose Replacement >> Installation Procedure

Installation Procedure

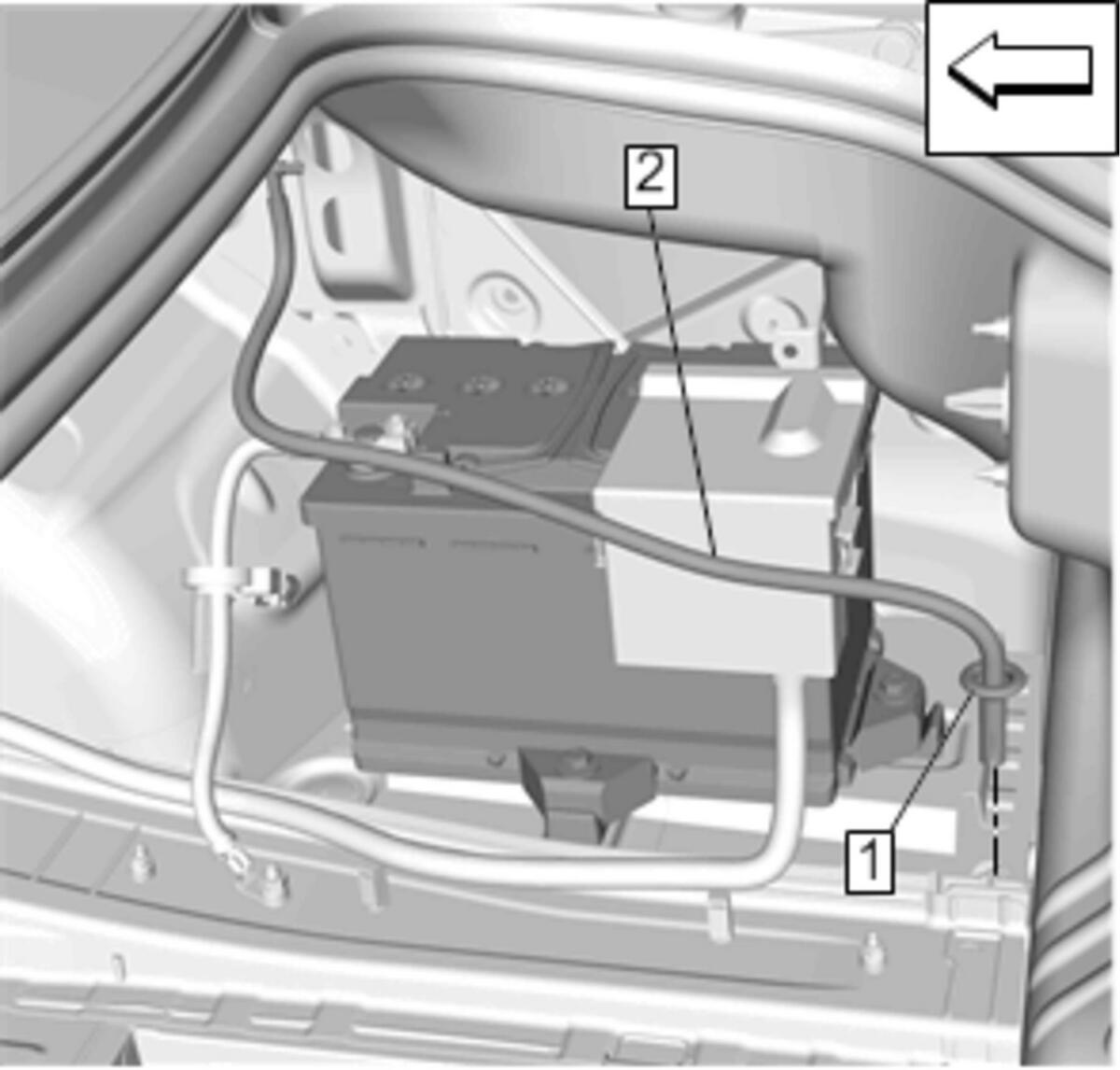

  1. GM4205890Courtesy of GENERAL MOTORS COMPANY

    Install the battery vent hose pass-through grommet. (1)

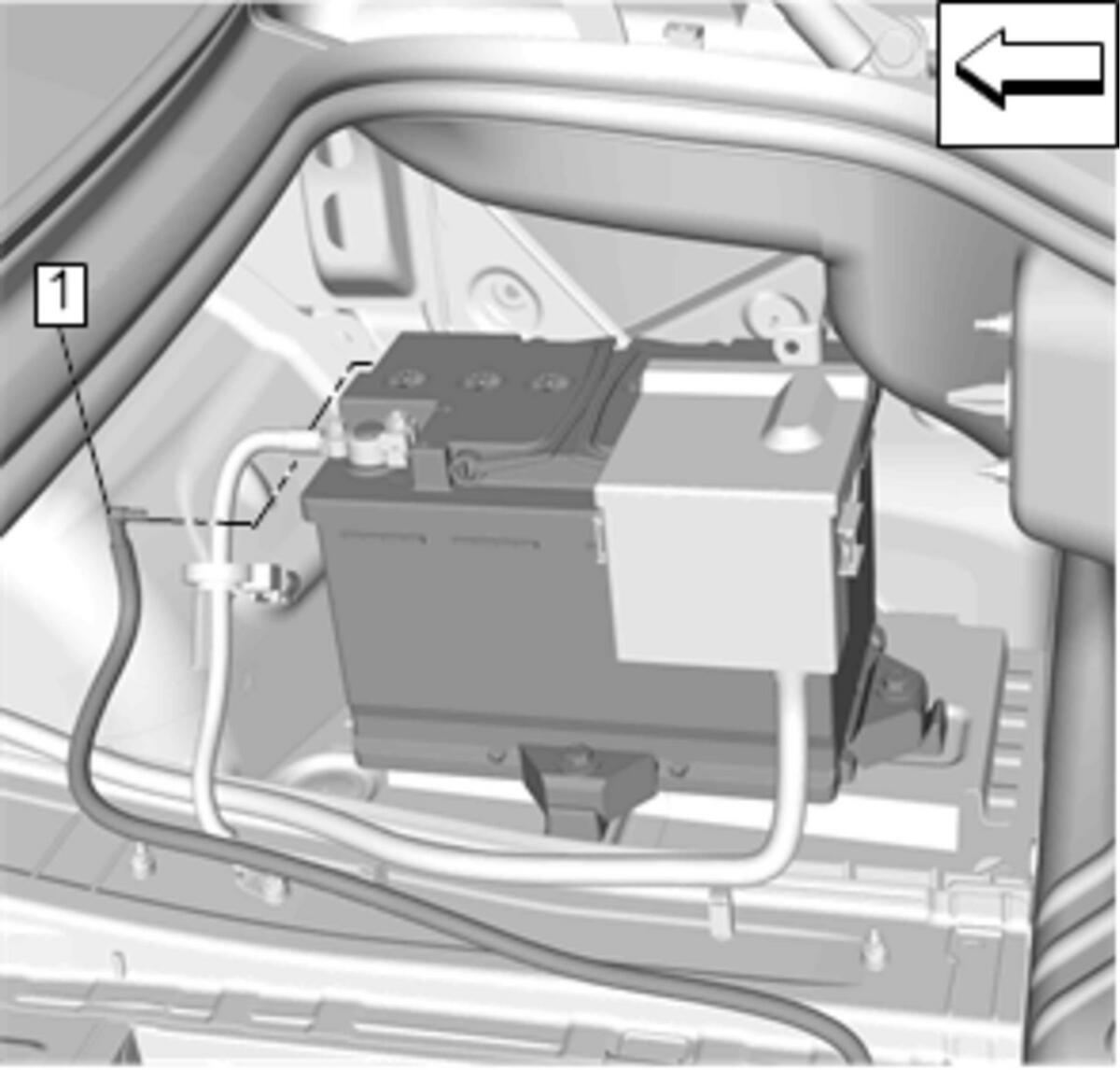

  2. GM4205889Courtesy of GENERAL MOTORS COMPANY

    Battery Vent Hose (1)@Battery - Install

  3. Rear Compartment Side Trim Replacement - Right Side (Coupe) , or Rear Compartment Side Trim Replacement - Right Side (Convertible) - Install
