Installation Procedure

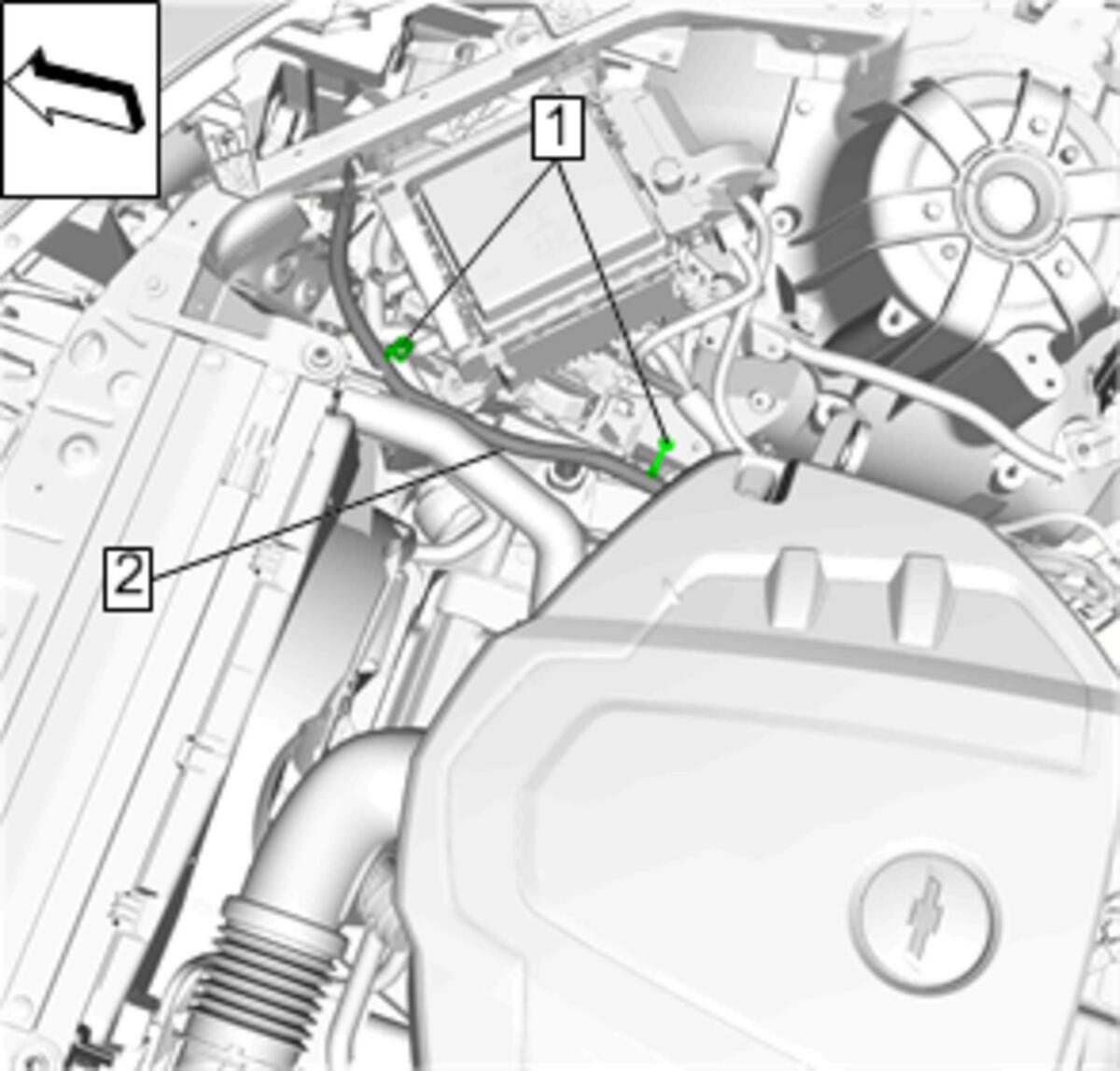

  1. GM4205997Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable Extension Cable (2) - Install

  2. Battery Negative Cable Extension Cable Retainer (1) - Engage

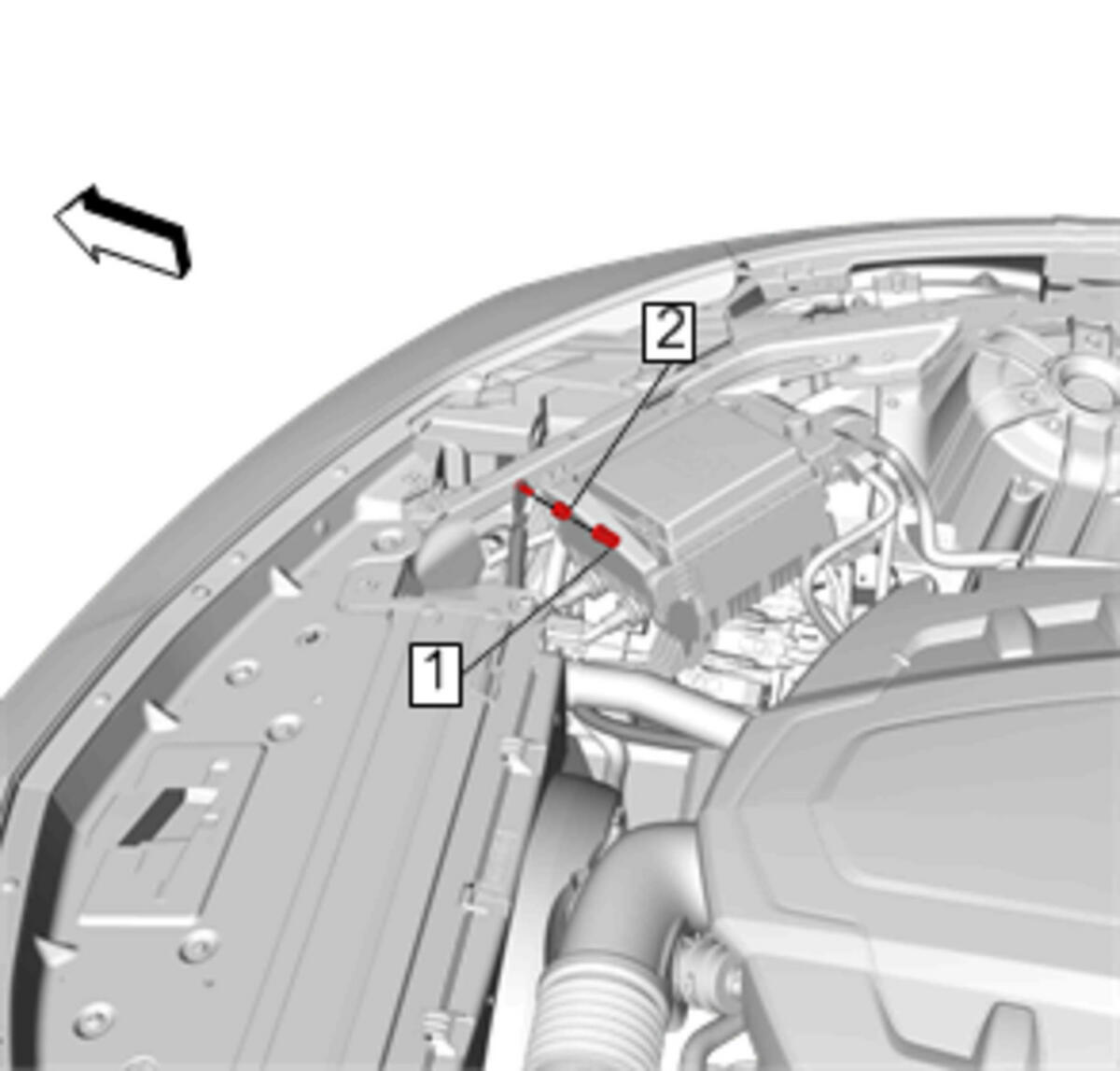

  3. GM4205995Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Battery Negative Cable Extension Cable Fastener (2) - Install and tighten 9 N.m (80 lb in)

  4. Protective Cap (1) - Install

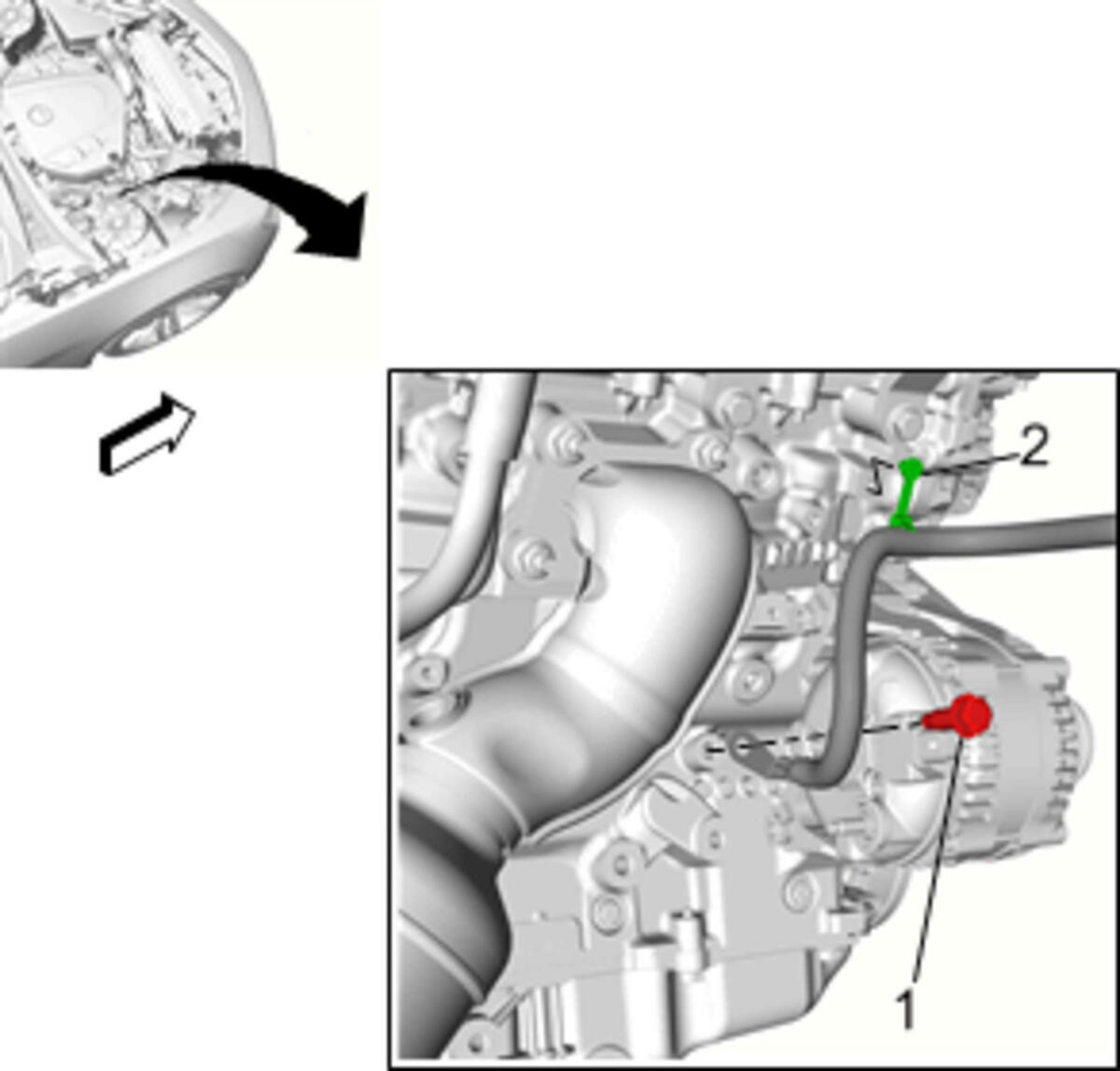

  5. GM4205994Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable Extension Cable Fastener (1) - Install and tighten 40 N.m (30 lb ft)

  6. Battery Negative Cable Extension Cable Retainer (2) - Engage

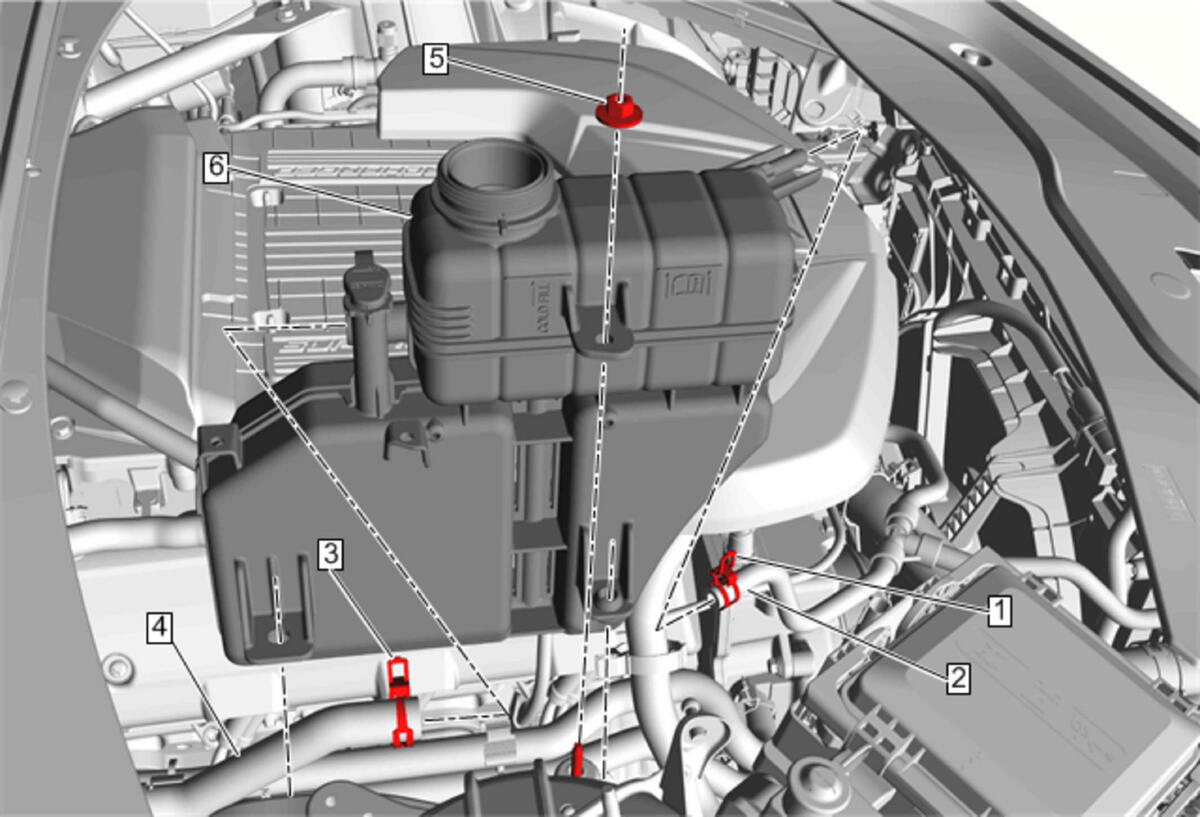

  7. GM4086709Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank Replacement (LGX) (6) - Install

  8. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection .
