Home >> Chevrolet >> 2019 >> Volt Premier >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Functions System >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Passive Start

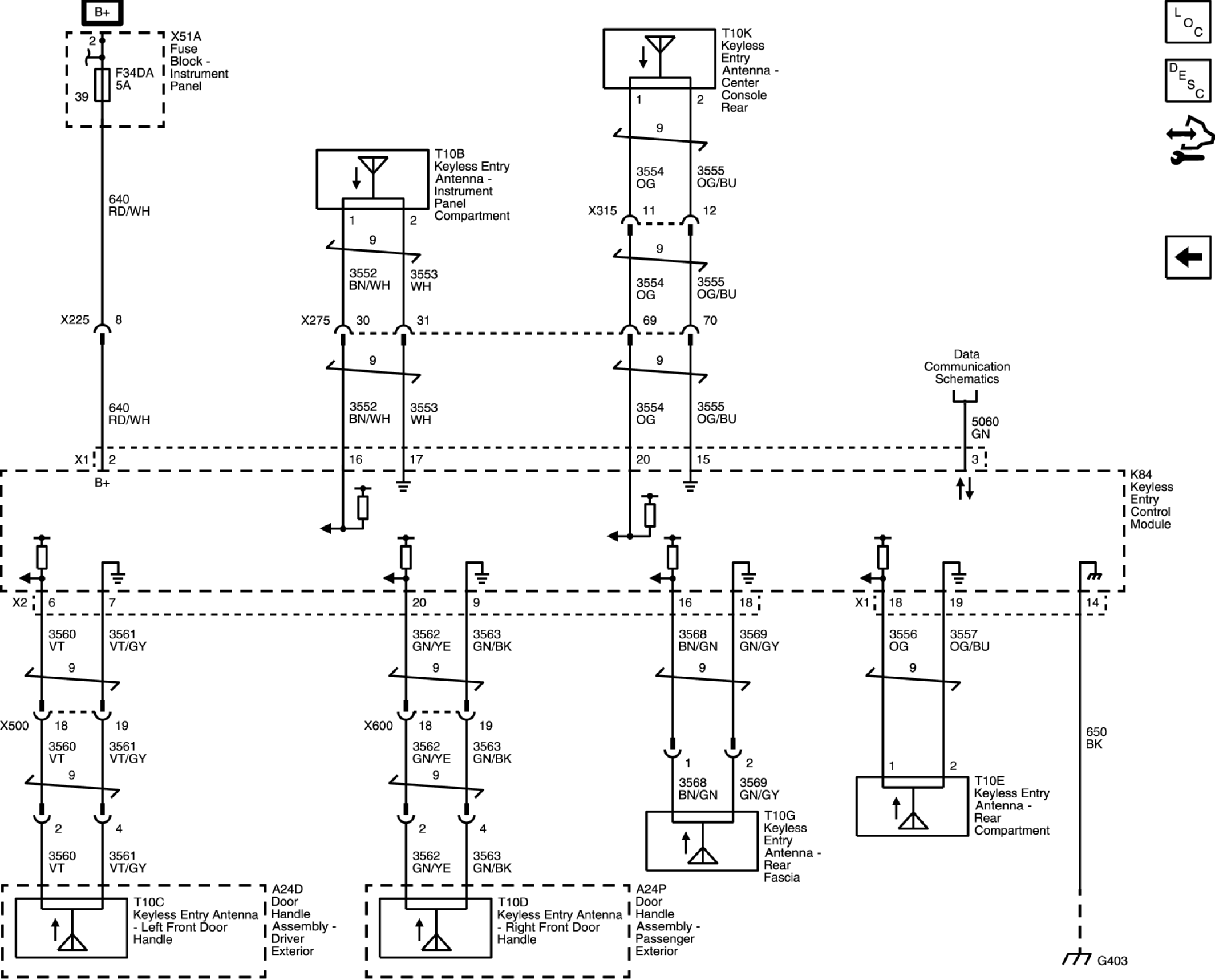

Passive Start

GM4893860

Courtesy of GENERAL MOTORS COMPANY
