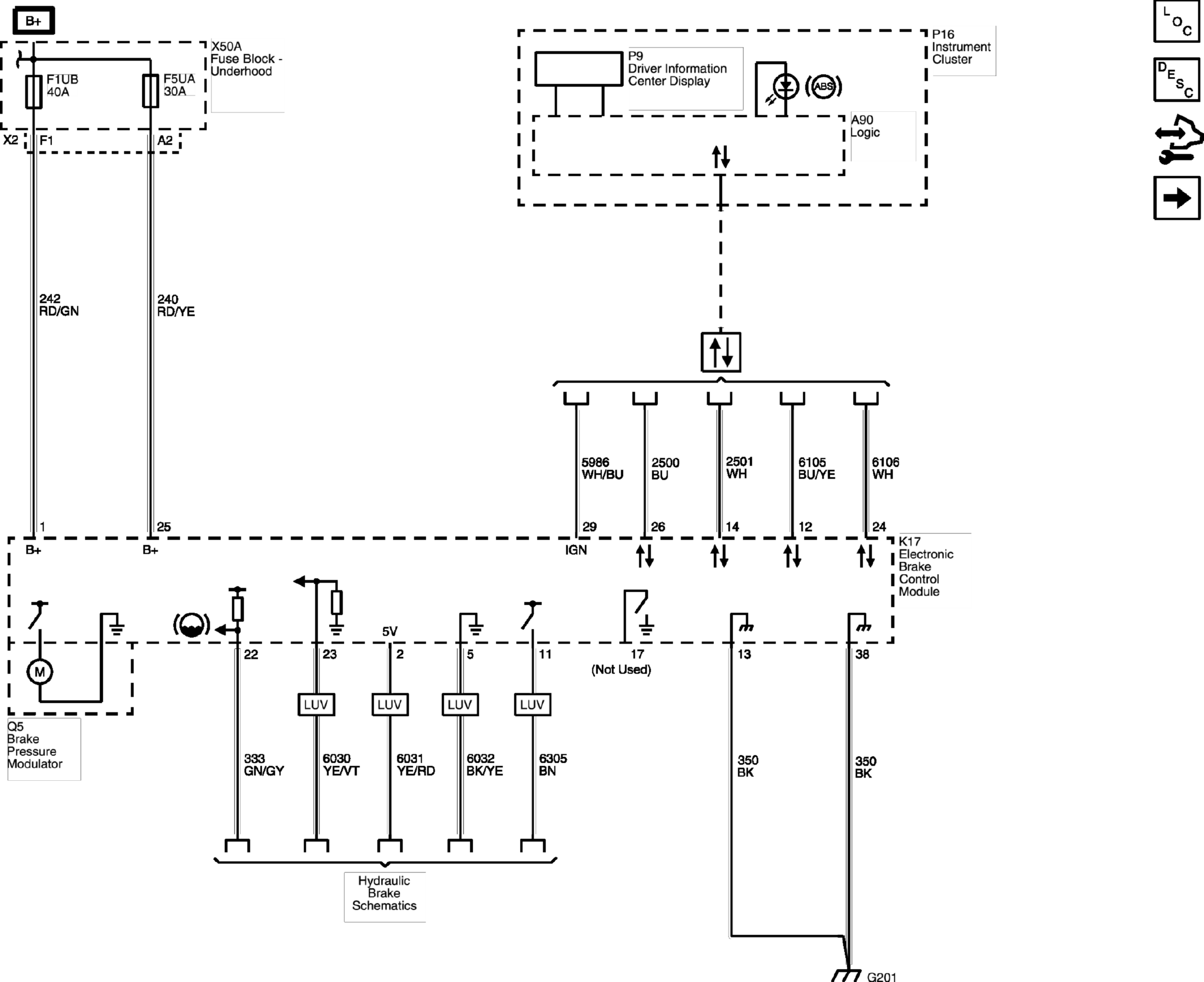

Module Power, Ground and Subsystem References (Encore)

GM4916232

Courtesy of GENERAL MOTORS COMPANY
