Removal Procedure

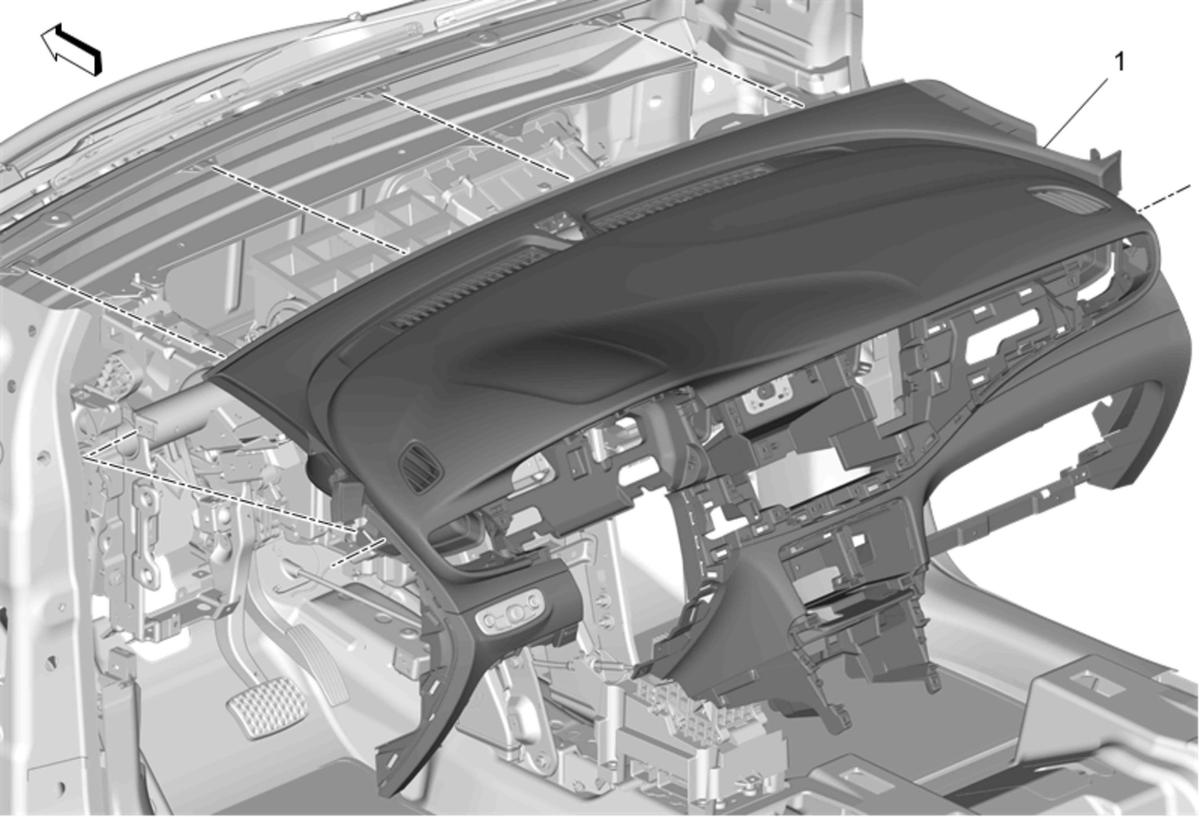

  1. GM4374743Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Assembly (1) - Remove - Instrument Panel Assembly Replacement (Encore)Instrument Panel Assembly Replacement (Trax)

  2. GM4368122Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Module (1) - Remove - Serial Data Gateway Module Replacement (Encore)

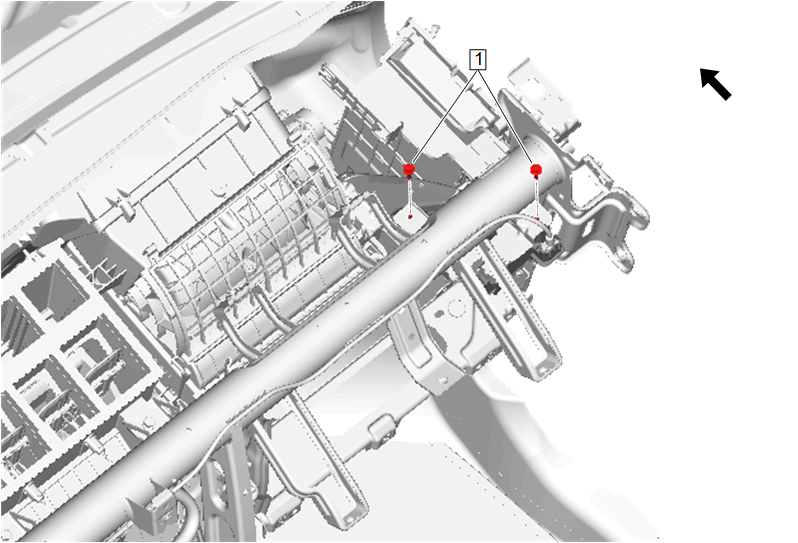

  3. GM5253258Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Module Bracket Bolt (1) - Remove [2x]

  4. Disconnect the electrical connector.

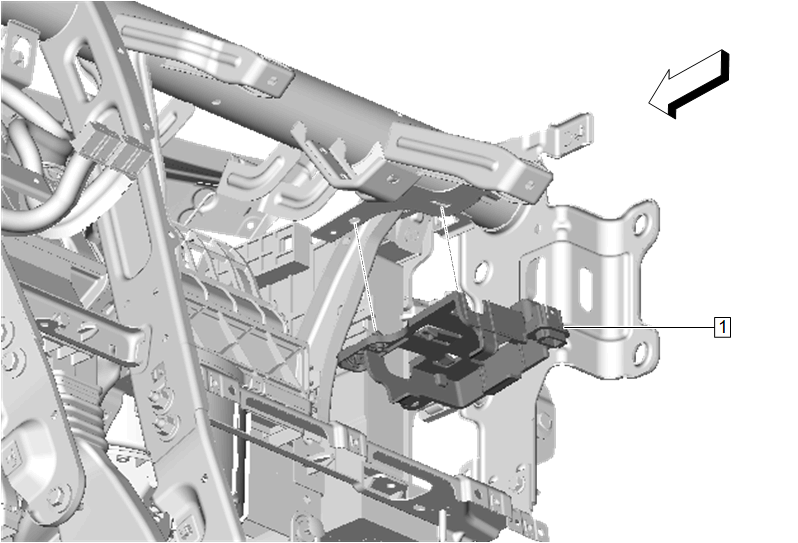

  5. GM5253262Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Module Bracket(1) - Remove
