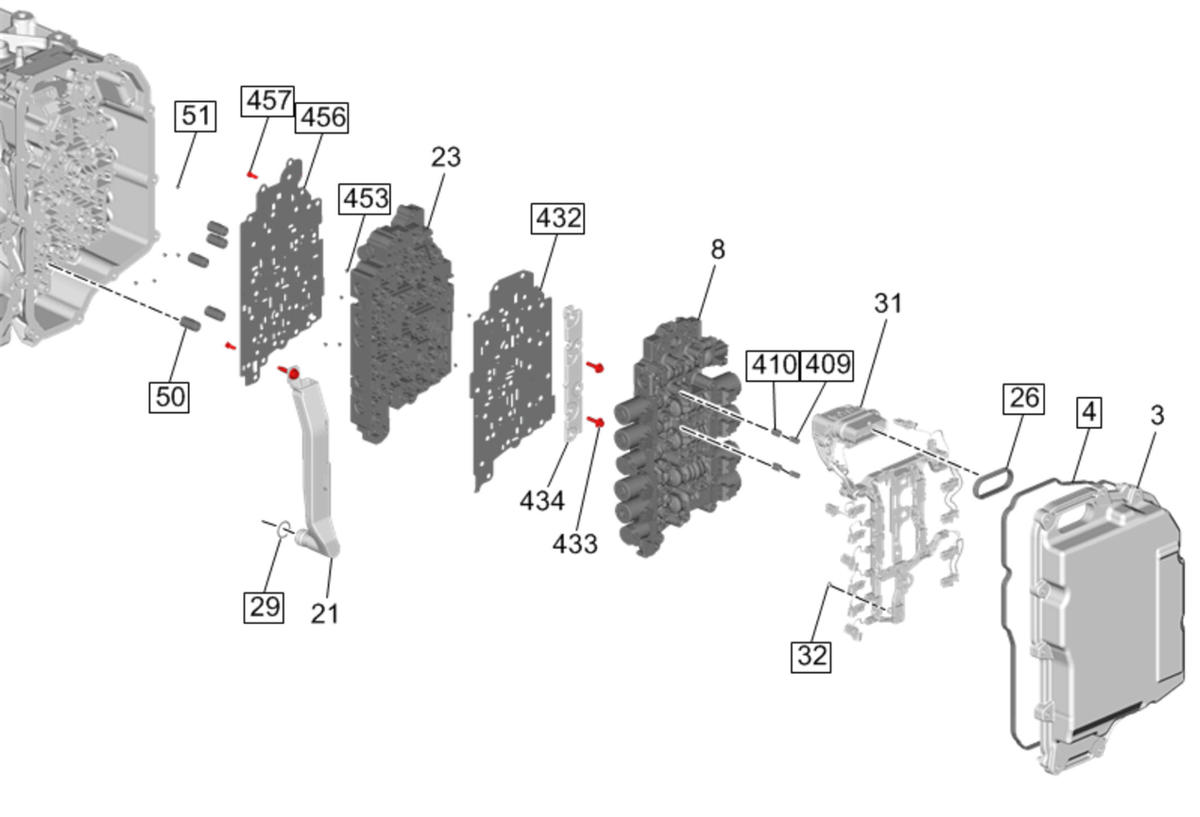

Control Valve Body Kit
NOTE:
Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
Control Valve Body Kit
| Callout | Quantity | Component Name |
|---|---|---|
| 4 | 1 | Control Valve Body Cover Gasket |
| 26 | 1 | Body Side Wiring Harness Opening Seal |
| 29 | 1 | Fluid Transfer Pipe Seal |
| 32 | 1 | Automatic Transmission Fluid Temperature Sensor Seal |
| 50 | 5 | 1-2-3-4 Low and Reverse Clutch Fluid Passage Seal |
| 51 | QTY | Control Valve Body Ball Check Valve - Model Dependent |
| 409 | 2 | Variable Feed Solenoid Clutch Accumulator Piston Spring |
| 410 | 2 | Variable Feed Solenoid Clutch Accumulator Piston |
| 432 | 1 | Control Valve Body Spacer Plate |
| 453 | QTY | Control Valve Body Ball Check Valve - Model Dependent |
| 456 | 1 | Control Valve Body Spacer Plate |
| 457 | 2 | Control Valve Body Spacer Plate Retainer |
