Ignition Lock Key Transmitter Antenna Replacement - Floor Console (Manual Transmission)
Ignition Lock Key Transmitter Antenna Replacement - Floor Console (Manual Transmission)
WARNING:
This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

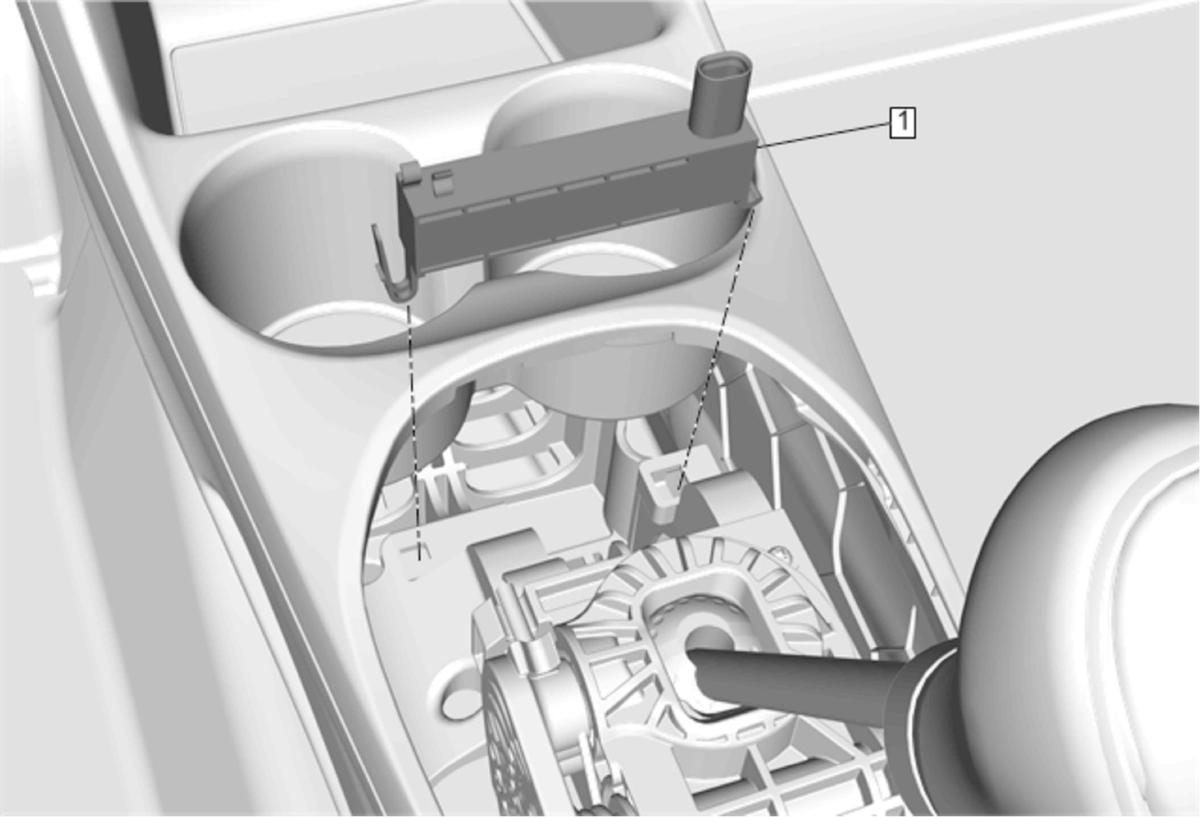

Fig 1: Ignition Lock Key Transmitter Antenna - Floor Console (Manual Transmission)
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedure
Remove the transmission control lever boot.
1
Ignition Lock Key Transmitter Antenna
Procedure
Disconnect the electrical connector.
